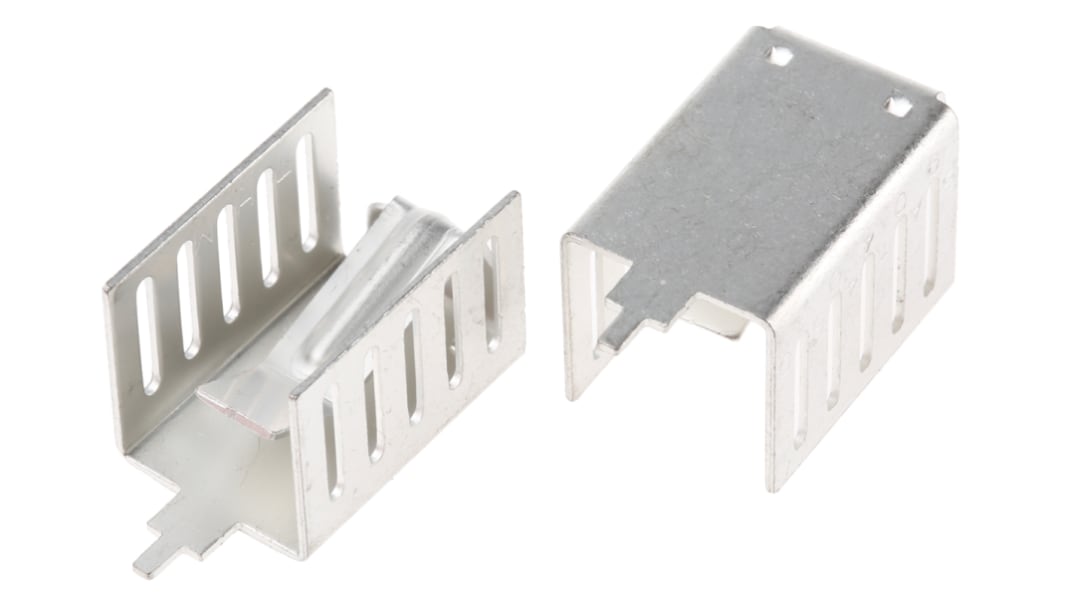

AAVID THERMALLOY Heatsink, 20.3°C/W, 13.08 x 13.21 x 19.81mm, PCB Through Hole
- RS Stock No.:
- 712-4239
- Mfr. Part No.:
- 7141DG
- Brand:
- AAVID THERMALLOY
Bulk discount available
Subtotal (1 pack of 5 units)*
£7.88
(exc. VAT)
£9.455
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 185 unit(s) ready to ship
- Plus 3,800 unit(s) shipping from 28 October 2025
- Plus 230 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 45 | £1.576 | £7.88 |
50 - 120 | £1.45 | £7.25 |
125 - 245 | £1.386 | £6.93 |
250 - 495 | £1.338 | £6.69 |
500 + | £1.232 | £6.16 |
*price indicative
- RS Stock No.:
- 712-4239
- Mfr. Part No.:
- 7141DG
- Brand:
- AAVID THERMALLOY
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | AAVID THERMALLOY | |
Length | 13.08mm | |
Width | 13.21mm | |
Height | 19.81mm | |
Dimensions | 13.08 x 13.21 x 19.81mm | |
Thermal Resistance | 20.3°C/W | |
Mounting | PCB Through Hole | |
Package Type | TO-220 | |
Select all | ||
---|---|---|
Brand AAVID THERMALLOY | ||
Length 13.08mm | ||
Width 13.21mm | ||
Height 19.81mm | ||
Dimensions 13.08 x 13.21 x 19.81mm | ||
Thermal Resistance 20.3°C/W | ||
Mounting PCB Through Hole | ||
Package Type TO-220 | ||
TO220 Copper Narrow Channel 20.3°C/W with Integrated Clip
Copper narrow channel style heatsink with integrated clip and locking tab for secure attachment to the device
Single center tab can be soldered directly to the PC board
Single center tab can be soldered directly to the PC board
