Vishay Thermal Jumper Chip, Filters, Pin and Laser Diodes, Power Supplies and Converters, RF Amplifiers, Switch Mode

View all Heatsinks
Bulk discount available

Subtotal (1 reel of 1000 units)*

£939.00

(exc. VAT)

£1,127.00

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible
Units
Per unit
Per Reel*
1000 - 1000£0.939£939.00
2000 +£0.913£913.00

*price indicative

RS Stock No.:
230-1357
Mfr. Part No.:
THJP2512AST1
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

For Use With

Filters, Pin and Laser Diodes, Power Supplies and Converters, RF Amplifiers, Switch Mode Power Supplies, Synthesizers

Length

6.4mm

Width

3.2mm

Height

0.8mm

Dimensions

6.4 x 3.2 x 0.8mm

Thermal Resistance

15°C/W

Mounting

Surface Mount

Package Type

SMT 2512

COO (Country of Origin):
US

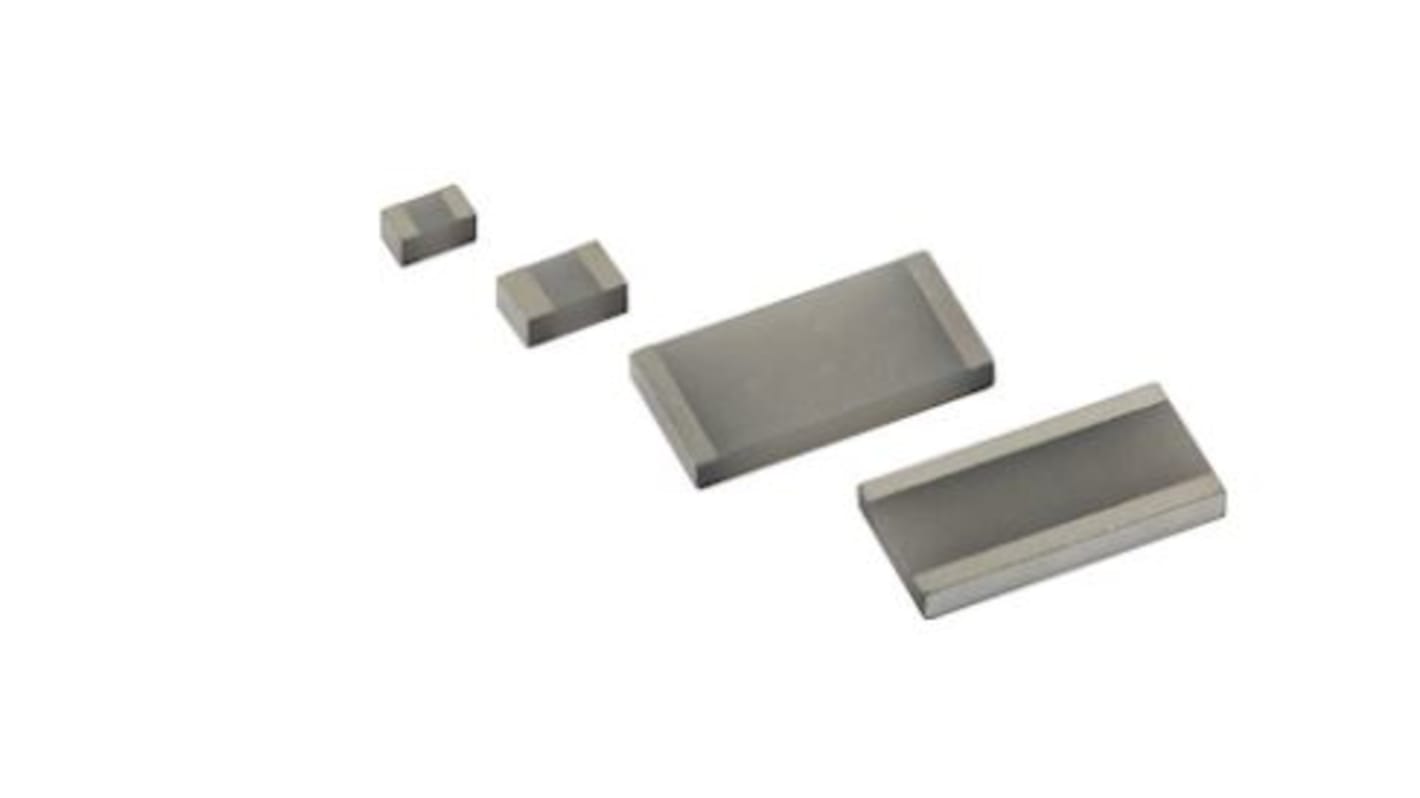

The Vishay THJP surface mount chips are designed to provide an electrically isolated thermal conductive pathway to a ground plane or heat sink while maintaining the electrical isolation of the device. The devices are constructed with aluminium nitride substrates in both SnPb and Pb-free wraparound termination styles. The low capacitance of the device makes them an excellent choice for high frequency and thermal ladder applications. Custom sizes available.

Electrically isolated thermal conductor
High thermal conductivity AlN substrate (170 W/mK)
Electrically isolated terminations (> 999 MΩ)
Low capacitance
Available with SnPb or lead (Pb)-free wrap terminations
