Vishay Thermal Jumper Chip, Filters, Pin and Laser Diodes, Power Supplies and Converters, RF Amplifiers, Switch Mode
- RS Stock No.:
- 230-1347
- Mfr. Part No.:
- THJP0612AST1
- Brand:
- Vishay
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 230-1347
- Mfr. Part No.:
- THJP0612AST1
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| For Use With | Filters, Pin and Laser Diodes, Power Supplies and Converters, RF Amplifiers, Switch Mode Power Supplies, Synthesizers | |
| Length | 1.6mm | |
| Width | 3.2mm | |
| Height | 0.8mm | |
| Dimensions | 1.6 x 3.2 x 0.8mm | |
| Thermal Resistance | 4°C/W | |
| Mounting | Surface Mount | |
| Package Type | SMT 0612 | |
Select all | ||
|---|---|---|
Brand Vishay | ||
For Use With Filters, Pin and Laser Diodes, Power Supplies and Converters, RF Amplifiers, Switch Mode Power Supplies, Synthesizers | ||
Length 1.6mm | ||
Width 3.2mm | ||
Height 0.8mm | ||
Dimensions 1.6 x 3.2 x 0.8mm | ||
Thermal Resistance 4°C/W | ||
Mounting Surface Mount | ||
Package Type SMT 0612 | ||
- COO (Country of Origin):
- US

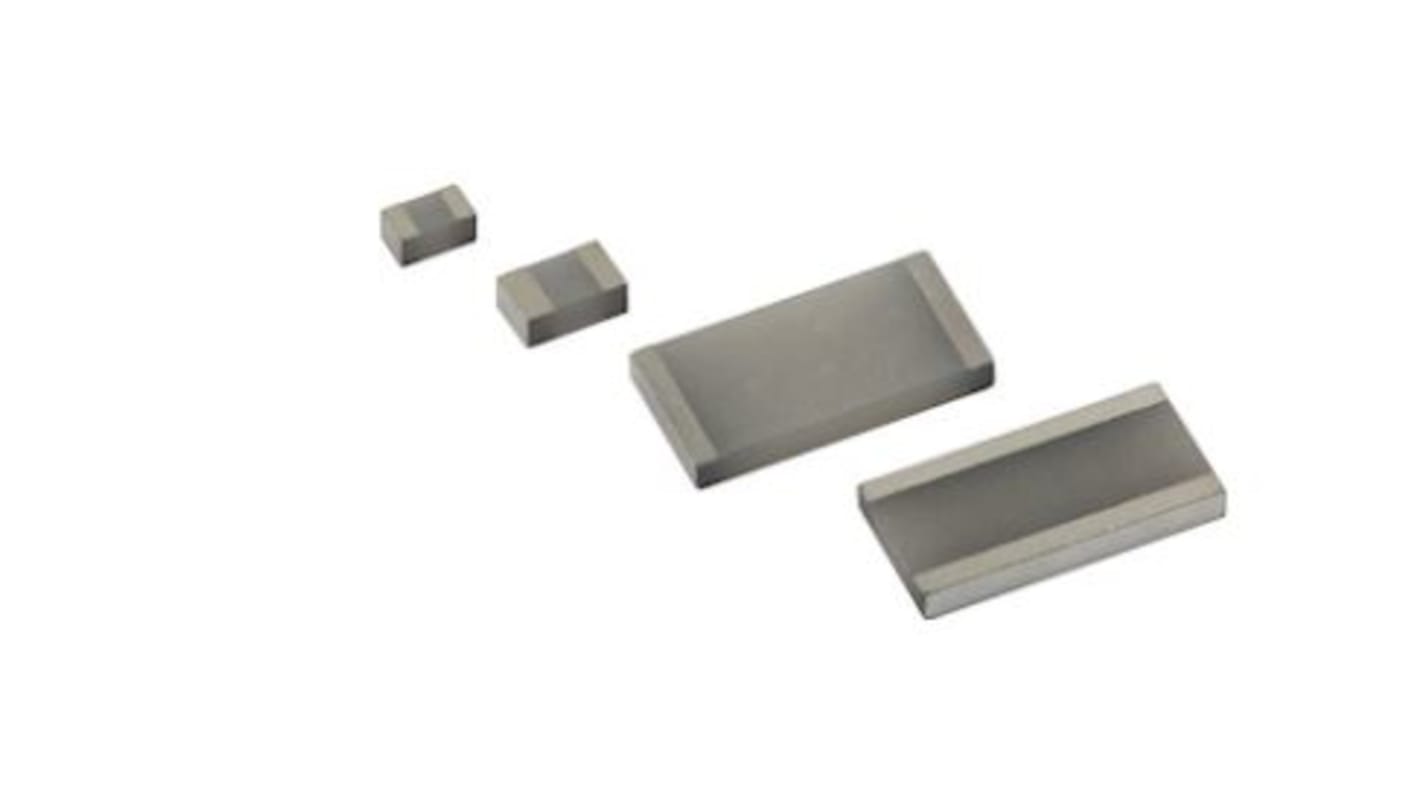

The Vishay THJP surface mount chips are designed to provide an electrically isolated thermal conductive pathway to a ground plane or heat sink while maintaining the electrical isolation of the device. The devices are constructed with aluminium nitride substrates in both SnPb and Pb-free wraparound termination styles. The low capacitance of the device makes them an excellent choice for high frequency and thermal ladder applications. Custom sizes available.
Electrically isolated thermal conductor
High thermal conductivity AlN substrate (170 W/mK)
Electrically isolated terminations (> 999 MΩ)
Low capacitance
Available with SnPb or lead (Pb)-free wrap terminations
High thermal conductivity AlN substrate (170 W/mK)
Electrically isolated terminations (> 999 MΩ)
Low capacitance
Available with SnPb or lead (Pb)-free wrap terminations
