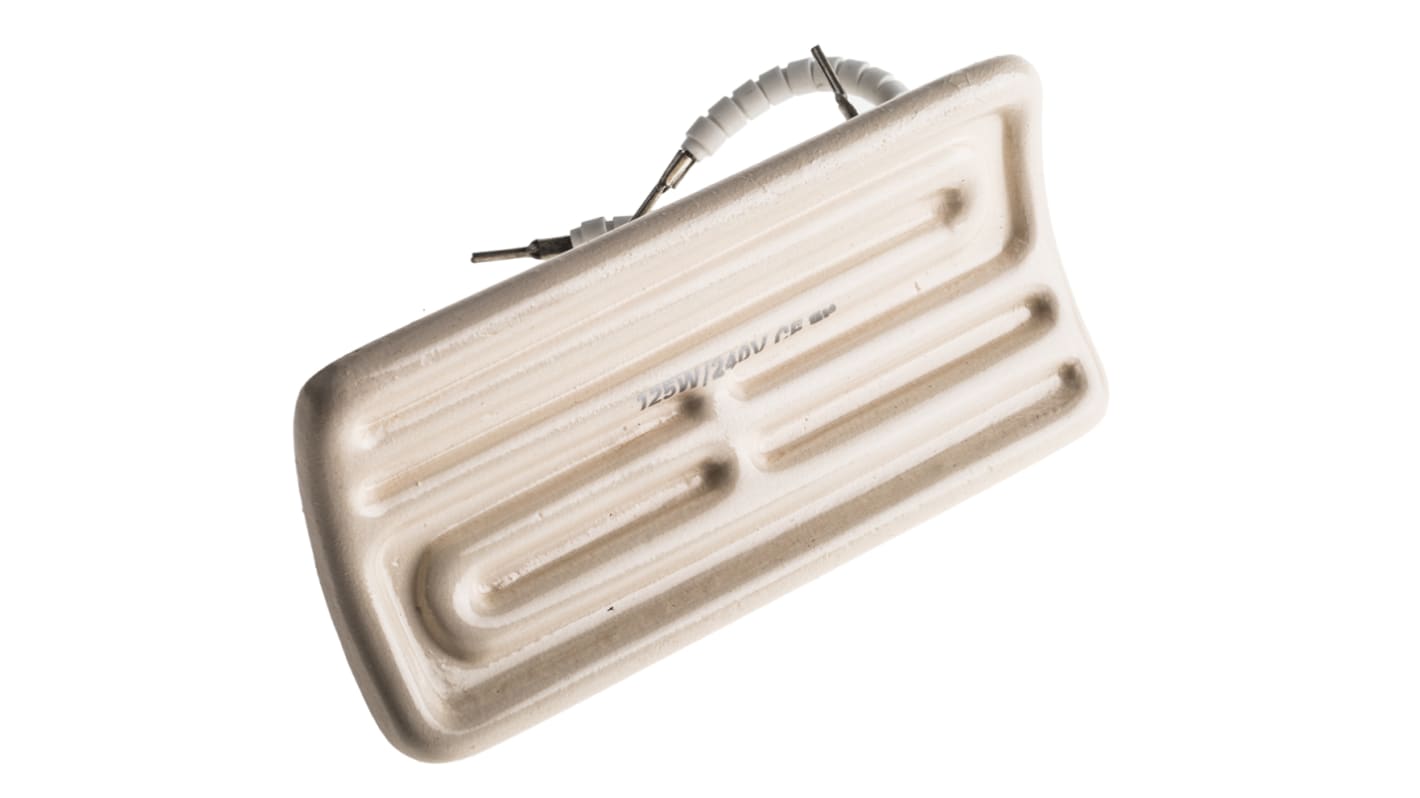

Ceramic Heating Element, 122mm, 125 W, 230 V ac
- RS Stock No.:
- 376-2739
- Brand:
- RS PRO
Available to back order for despatch 07/05/2024
Added
Price Each
£38.95
(exc. VAT)
£46.74
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £38.95 |
| 5 - 9 | £37.79 |
| 10 + | £36.93 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 376-2739
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
Product Details
Ceramic Heating Elements
These heating elements are extremely energy efficient converting 96% of the input power to heat with a maximum temperature of 700ºC
5000 - 10,000 hours working life
Available in two sizes and with or without integral type K thermocouple for monitoring and control
Heating wire embedded into concave shaped heater creates infrared in parallel rays
230V ac supply
Suitable for long wave radiation, curing, heating and drying
Note
Stock Item 376-2672 has a built in Thermocoupler and is 4 wire.
Multi-Purpose Process Heaters
In order to obtain optimum performance from these products, it is advised that temperature sensing and control elements be used with them.
Warning
These heaters shall only be used where adequate electrical, thermal and mechanical barriers are provided to prevent access to hazardous parts without the use of a tool.
Specifications
Attribute | Value |
|---|---|
| Power Rating | 125 W |
| Supply Voltage | 230 V ac |
| Length | 122mm |
| Width | 60mm |
| Thickness | 31mm |
| Heating Element Form | Curved Ceramic Element |
