RS PRO Heating Element, 247 x 62.5mm, 250 W, 230 V ac
- RS Stock No.:
- 376-2515
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£32.22
(exc. VAT)
£38.66
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 50 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £32.22 |
| 5 - 9 | £31.25 |
| 10 + | £30.55 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£34.37
(exc. VAT)
£41.24
(inc. VAT)
- RS Stock No.:
- 376-2515
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Element Type | Quartz | |
| Power Rating | 250 W | |
| Supply Voltage | 230 V ac | |
| Length | 247 x 62.5mm | |
| Width | 62.5mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Element Type Quartz | ||
Power Rating 250 W | ||
Supply Voltage 230 V ac | ||
Length 247 x 62.5mm | ||
Width 62.5mm | ||

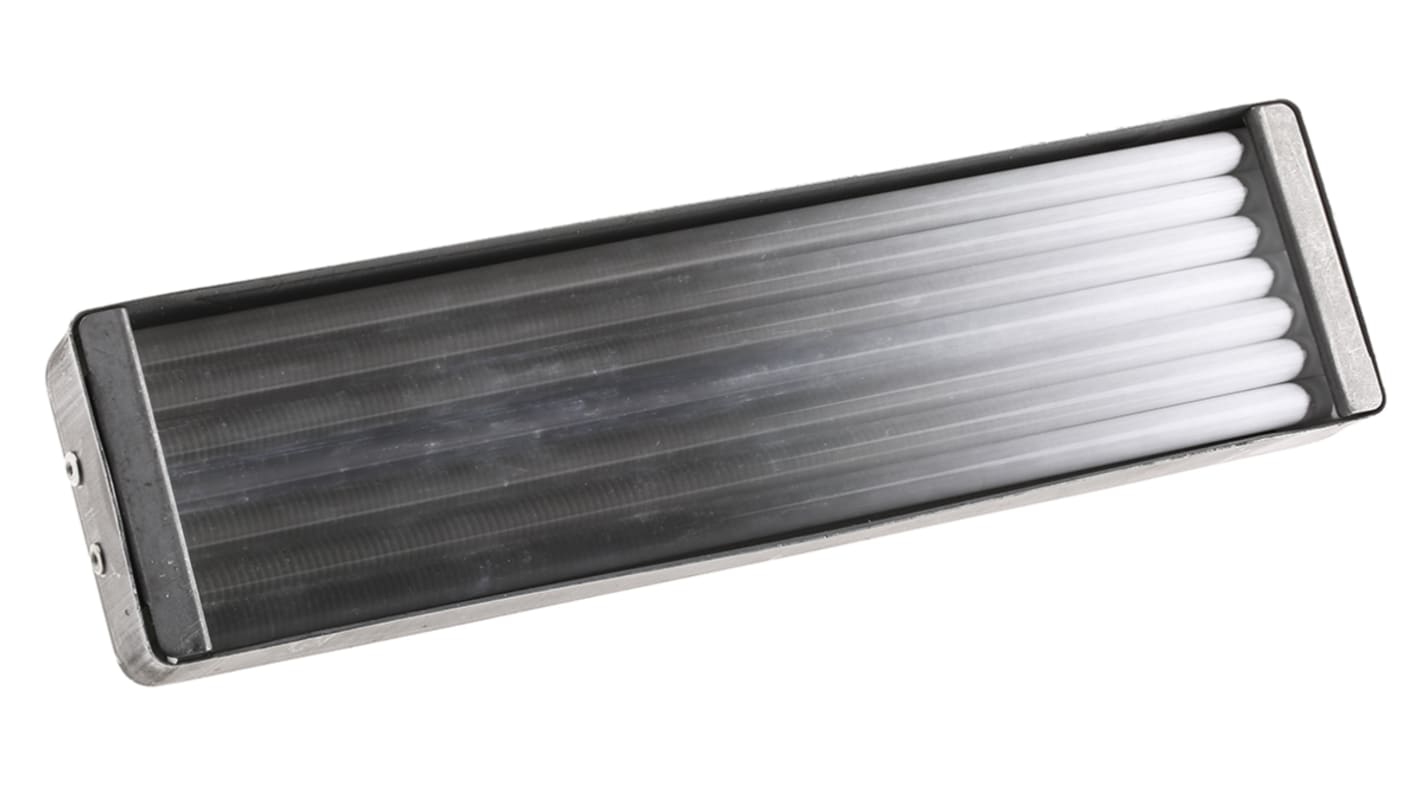

RS PRO Enclosed Quartz Infrared Heating Element (250W)
A Quartz infrared heating element that reaches operating temperature within seconds of power on for use in industrial applications where an instant heat source is required.
Consisting of a wound resistance coil run through a series of parrel Quartz tubes encased within a highly reflective Aluminised Steel housing ensuring minimum heat and radiation loss from the rear of the heater.
Mounted easily using the two M5 x 30mm screws at the rear of the unit and capable of installation into reflectors, projectors and panels.
Ideal for use in systems that require zone control or long off cycles due to the rapid heat response.
Features and Benefits
- Quartz infrared heating element
- Suitable for medium wave infrared curing, heating and drying
- Supply voltage 230V ac
- Power rating of 250W
- Aluminised Steel housing
- Two M5 x 30mm mounting bolts on the rear
- 100mm lead length
- Medium wave infrared energy 1.5 to 5.6 microns
- Dimensions of 247 x 62.5mm
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
Multi-Purpose Process Heaters
In order to obtain optimum performance from these products, it is advised that temperature sensing and control elements be used with them.
Warning
These heaters shall only be used where adequate electrical, thermal and mechanical barriers are provided to prevent access to hazardous parts without the use of a tool.
