Heating Element, 80mm, 200 W, 230 V ac

RS Stock No.:: 374-2690
Mfr. Part No.:: H6,5X80X200
Brand:: Acim Jouanin

3 In stock - FREE next working day delivery available

16 available from Europe for delivery within 1 working day(s).

Added

Price Each

£39.47

(exc. VAT)

£47.36

(inc. VAT)

Units	Per unit
1 - 4	£39.47
5 - 9	£38.29
10 +	£37.46

RS Stock No.:: 374-2690
Mfr. Part No.:: H6,5X80X200
Brand:: Acim Jouanin

COO (Country of Origin):: FR

Technical Reference

Standard Cartridge Heaters Datasheet

Legislation and Compliance

COO (Country of Origin):: FR

Product Details

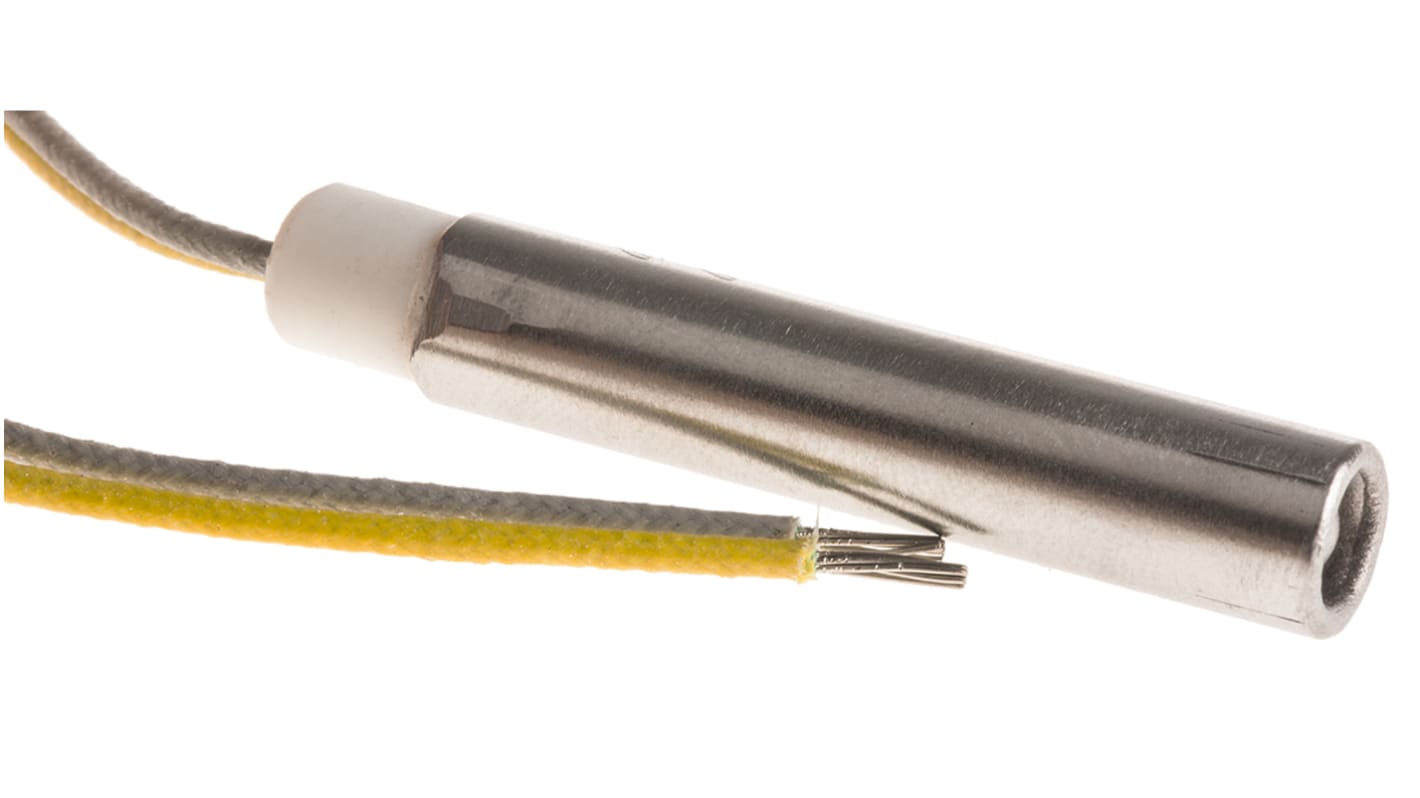

Acim Jouanin Cartridge Heater

The Acim Jouanin 200W cartridge heater has a diameter of 6.5mm and length of 80mm. It provides localised heat to a restricted work area requiring close thermal control. The cartridge heater has low/moderate watt density elements consisting of helical wire coils on ceramic former. It can also have high watt density elements with the heating element located close to the sheath that is swaged to improve heat conduction.

Features and Benefits

Ceramic end cap protecting the connection leads
Lead length is 250mm
Plasma-welded completely sealed base
Stainless steel body for applications up to maximum 750°C
Supply voltage is 230V
Very quickly raises the temperature of solid masses by conduction
Watt density is 15W/cm²

Applications

Food production
HVAC compressors
Immersion tank heating
Injection moulding manifolds
Mass spectrometry
Rubber moulding
Seal bars
Torpedo heaters for injection moulding

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Specifications

Attribute	Value
Element Type	Cartridge Heater
Power Rating	200 W
Supply Voltage	230 V ac
Length	80mm
Diameter	6.5 mm
