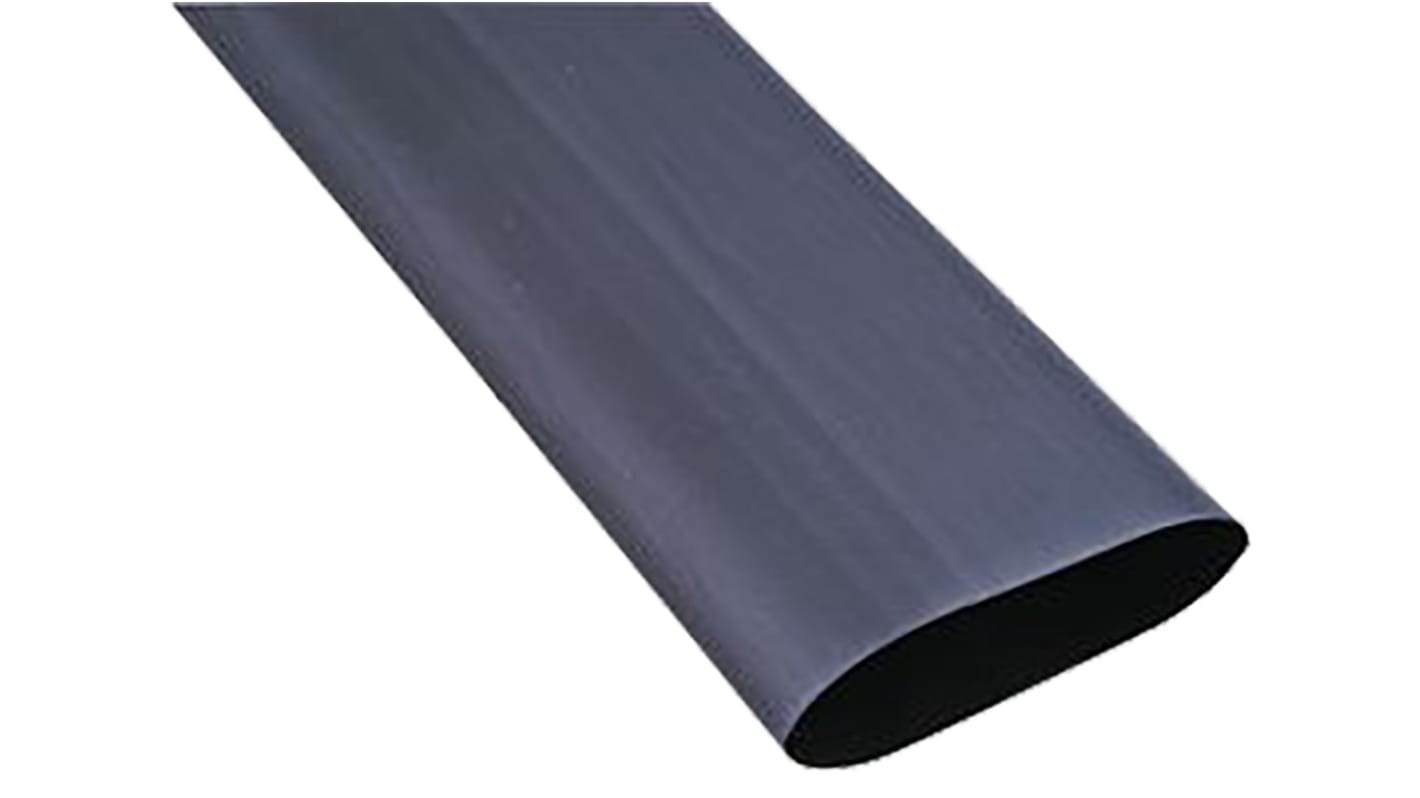

TE Connectivity Adhesive Lined Heat Shrink Tubing, Black 7.4mm Sleeve Dia. x 1220mm Length 4:1 Ratio, ES2000 Series
- RS Stock No.:
- 125-9291
- Mfr. Part No.:
- ES2000-NO.2-B9-0-STK
- Brand:
- TE Connectivity
Subtotal (1 pack of 50 units)*
£326.55
(exc. VAT)
£391.85
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
50 + | £6.531 | £326.55 |
*price indicative
- RS Stock No.:
- 125-9291
- Mfr. Part No.:
- ES2000-NO.2-B9-0-STK
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Sleeve Diameter | 7.4mm | |
Colour | Black | |
Shrunk Diameter | 1.65mm | |
Sleeve Type | Heat Shrink | |
Adhesive Lined | Yes | |
Shrink Ratio | 4:1 | |
Sleeve Length | 1220mm | |
Material | Irradiated Polyolefin | |
Operating Temperature Range | -40 → +130 °C | |
Flame Retardant | Yes | |
Standards Met | EU ELV Compliant, UL Recognised | |
Series | ES2000 | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Sleeve Diameter 7.4mm | ||
Colour Black | ||
Shrunk Diameter 1.65mm | ||
Sleeve Type Heat Shrink | ||
Adhesive Lined Yes | ||
Shrink Ratio 4:1 | ||
Sleeve Length 1220mm | ||
Material Irradiated Polyolefin | ||
Operating Temperature Range -40 → +130 °C | ||
Flame Retardant Yes | ||
Standards Met EU ELV Compliant, UL Recognised | ||
Series ES2000 | ||
ES2000 Dual Wall Heat Shrink Tubing
The outer jacket of the ES2000 heat shrink is made from radiation-crosslinked, semi-rigid polyolefin. It is flame-retardant and mechanically tough. The jacket also provides strain relief and abrasion protection of wire splices and mechanically sensitive components.
The adhesive inner layer is specially formulated to adhere to all major types of automotive wire insulation and to perform well at an extended temperature range.
The adhesive forms an effective barrier against automotive fluids and moisture, helping to protect the harness from the effects of corrosion and water wicking.
ES2000 tubing dimensions have been engineered to provide low-cost sealing solutions on multiple wire splices, using standard TE Connectivity application equipment.
The adhesive inner layer is specially formulated to adhere to all major types of automotive wire insulation and to perform well at an extended temperature range.
The adhesive forms an effective barrier against automotive fluids and moisture, helping to protect the harness from the effects of corrosion and water wicking.
ES2000 tubing dimensions have been engineered to provide low-cost sealing solutions on multiple wire splices, using standard TE Connectivity application equipment.
Features and Benefits
Adhesive lined
Flame-retardant
Full recovery temperature: 135°C
Continuous operating temperature: -40°C to 130°C
UL E85381
Flame-retardant
Full recovery temperature: 135°C
Continuous operating temperature: -40°C to 130°C
UL E85381
Applications
The Raychem ES2000 heat shrink is designed for use in the automotive industry. It meets the requirements for environmental sealing and electrical insulation of automotive wire splices, terminations, and components.
