MPN

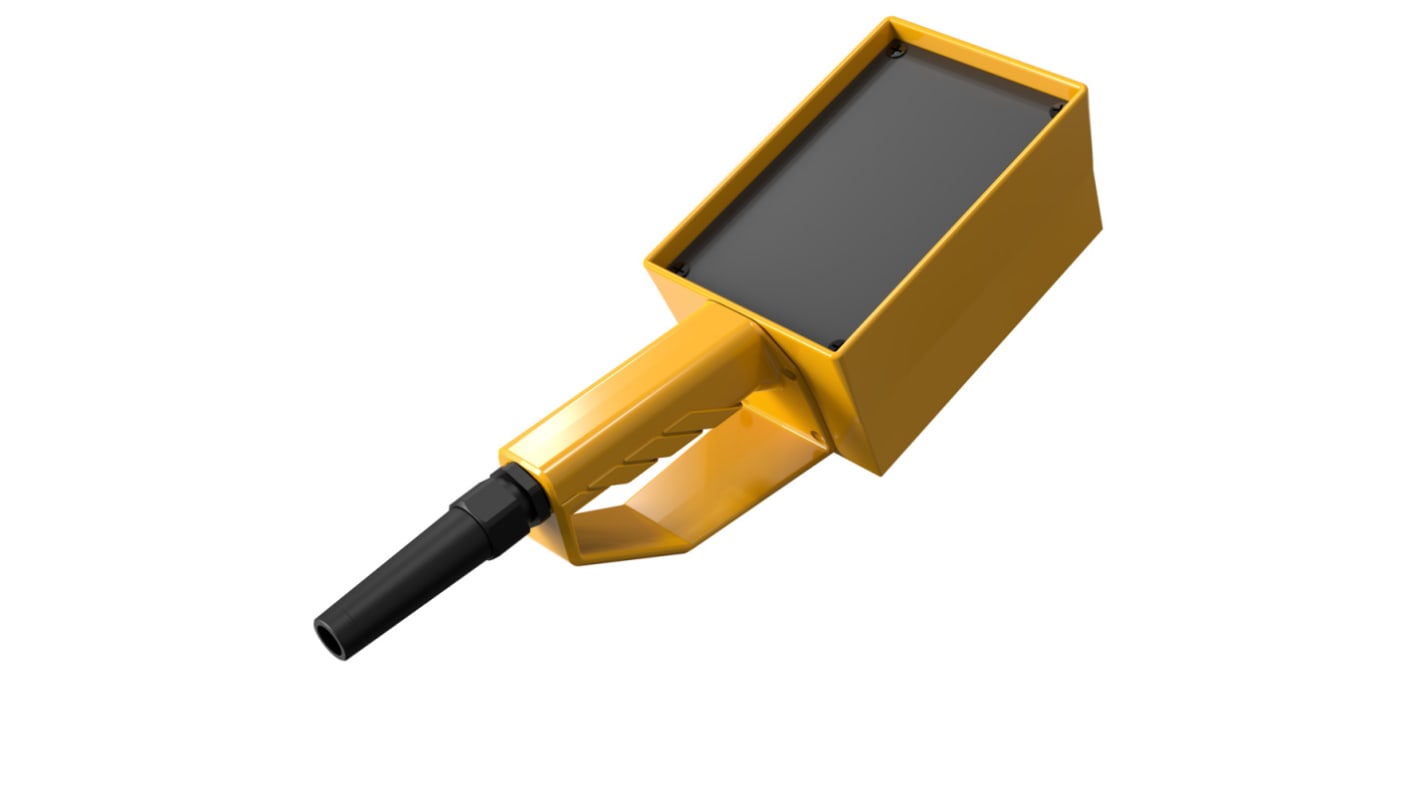

Rose Pilot Series Yellow Polyamide Handheld Enclosure, Display Window, IP65, 85 x 105 x 266mm

RS Stock No.:: 187-0002
Mfr. Part No.:: 292150000
Brand:: Rose

Rose Pilot Series Yellow Polyamide Handheld Enclosure, Display Window, IP65, 85 x 105 x 266mm

Subtotal (1 unit)*

£86.52

(exc. VAT)

£103.82

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

4 unit(s) ready to ship
Plus 28 unit(s) ready to ship from another location
Plus 8 unit(s) shipping from 03 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£86.52

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

Rose Pilot Series Yellow Polyamide Handheld Enclosure, Display Window, IP65, 85 x 160 x 211mm

RS Stock No.: 186-9995

Each

£86.52

(exc. VAT)

£103.82

(inc. VAT)

RS Stock No.:: 187-0002
Mfr. Part No.:: 292150000
Brand:: Rose

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Rose
	Body Material	Polyamide
	External Length	85 mm
	External Width	105 mm
	External Height	266 mm
	IP Rating	IP65
	Weight	780g
	Display Window	Yes
	Colour	Yellow
	External Dimensions	85 x 105 x 266mm
	Push Buttons	No
	Special Features	Automation and Control Engineering, Cable Gland M 20 x 1.5, Front Panel Screws, Front Plate, Handle, Integrated Cable Entry, Large Fitting Space, Wall Holder
	Series	Pilot
	Standards Met	EN 60079-0
	Keypad Recess	Yes

	Select all
	Brand Rose
	Body Material Polyamide
	External Length 85 mm
	External Width 105 mm
	External Height 266 mm
	IP Rating IP65
	Weight 780g
	Display Window Yes
	Colour Yellow
	External Dimensions 85 x 105 x 266mm
	Push Buttons No
	Special Features Automation and Control Engineering, Cable Gland M 20 x 1.5, Front Panel Screws, Front Plate, Handle, Integrated Cable Entry, Large Fitting Space, Wall Holder
	Series Pilot
	Standards Met EN 60079-0
	Keypad Recess Yes

Pilot 110-150 (2921) Series Hand Held Enclosures.

The Rose Pilot 2921 series of hand-held enclosures are ideal for automation, mechanical and control engineering. The mobile enclosures provide you with a large enclosed area for installing components including membrane keypads and switches. A comfortable ergonomic design and the various sizes of enclosure, within the series, ensures you can tailor the enclosure membrane front panel to suit your installation requirements.

Features and Benefits.

• Pilot 110 to 150 (2921) handheld enclosure.

• Large enclosure area.

• Area for installation of membrane keypads and switches.

• Ergonomic.

• Body material Polyamide.

• Front plate material Polystyrol.

• Colour – Yellow (RAL 1003).

• IP 65 (EN 60529).

• Flammability resistant UL 94 HB.

• Temperature range -40°C to +60°C.

• Various sizes available.

Hand Held Enclosure Models Available.

• Stock number 1869951, Pilot 110.

• Stock number 1869973, Pilot 120.

• Stock number 1869989, Pilot 130.

• Stock number 1869995, Pilot 140.

• Stock number 1870002, Pilot 150.

Enclosure Typical Applications.

• Automation.

• Mechanical.

• Control.

(IP) Ingress Protection and what it means.

The first number is the protection from solids.

The second number is the protection from liquids.

IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

FAQ's.

Can the enclosure be used outside?

IP 65 protection from total dust ingress and waterproof (projected from any direction by 6.3 mm nozzle).

What is Supplied?

• Enclosure with a handle.

• M20 x 1.5 Cable gland.

• Front plate.

• Panel screws for the enclosure and front.

• Wall holder.

Standards

IP65 EN 60529, EN 60079-0, UL 94 HB.

Supplied with

ROSE Handheld Enclosure, 105mm Height, 0.78kg Weight - 2921 Series - 29215000

Looking for a handheld enclosure for your mechanical or plant engineering control system? This device from ROSE holds a wide variety of switches and keypads. Thanks to its compact dimensions of 105 (height) x 85 (width) x 266mm (depth), it's easy to handle for portable use. The ergonomic handle and light weight of 0.78kg make this tool comfortable to hold for long periods of time. For convenience, you can store this unit safely in the supplied wall holder when it's not in use.

Features & Benefits

• Wide operating temperature range between -40°C and +60°C for use in demanding environments
• Polyamide body for resistance to abrasion and wear
• Bright yellow colour makes it easy to spot

Applications

• Machine construction
• Automation industry
• Control systems

Can I use this handheld enclosure outdoors?

Yes, this unit has an IP65 rating, meaning it's dustproof and protected against low-pressure water jets for safe outdoor use.

Can I use this handheld enclosure in explosive areas?

Yes, this handheld enclosure conforms to EN 60079-0 standards for safe use in areas with potentially explosive atmospheres.
