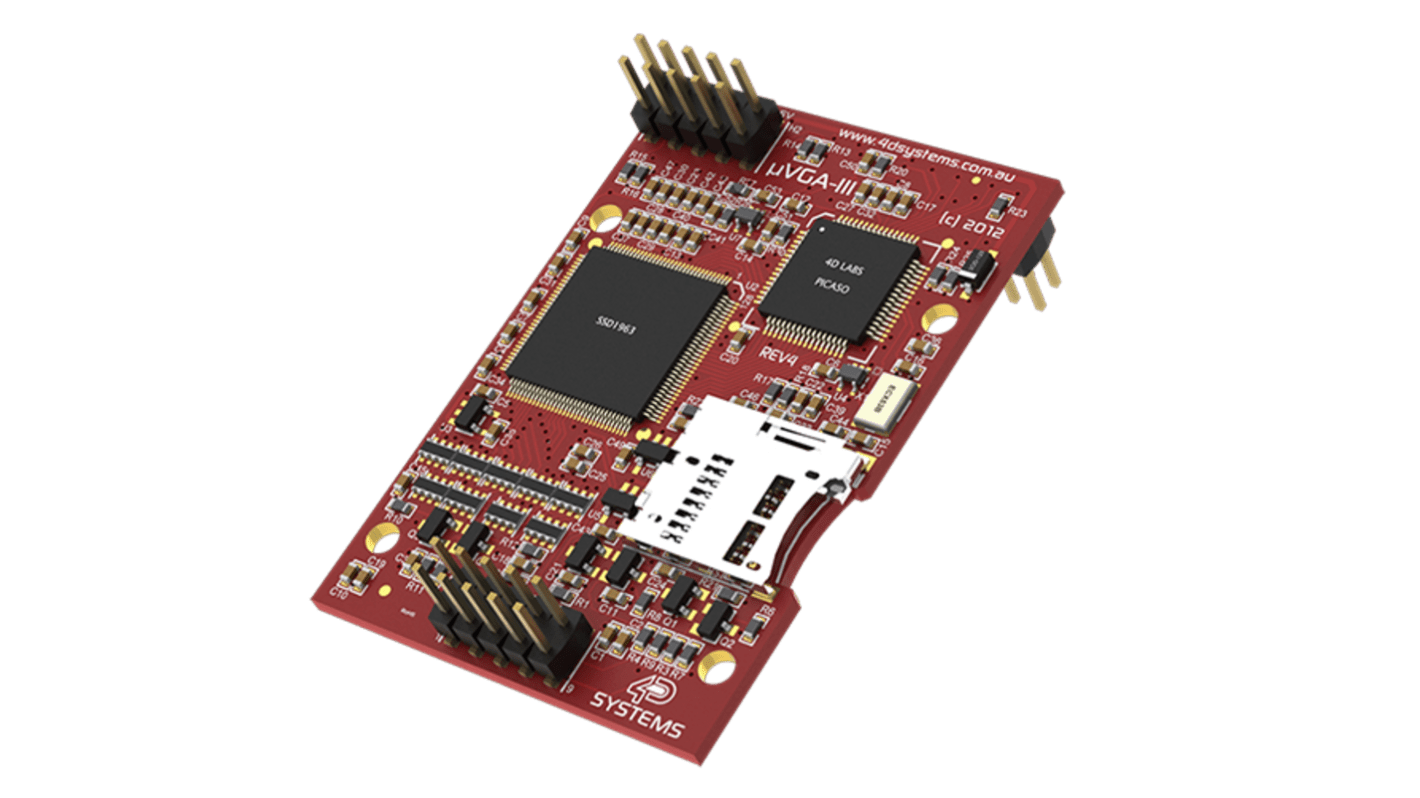

4D Systems uVGA-III Graphics Controller IC 800 x 480 pixel I2C, UART 30-Pin TQFP
- RS Stock No.:
- 564-957
- Mfr. Part No.:
- uVGA-III
- Brand:
- 4D Systems
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£48.77
(exc. VAT)
£58.52
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £48.77 |
| 5 + | £47.80 |
*price indicative
- RS Stock No.:
- 564-957
- Mfr. Part No.:
- uVGA-III
- Brand:
- 4D Systems
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 4D Systems | |
| Product Type | Graphics Controller IC | |
| Display Resolution | 800 x 480 pixel | |
| Mount Type | Flexible | |
| Package Type | TQFP | |
| Pin Count | 30 | |
| Minimum Supply Voltage | 4V | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -10°C | |
| Interface Type | I2C, UART | |
| Length | 39mm | |
| Standards/Approvals | RoHS Compliant | |
| Height | 21.5mm | |
| Automotive Standard | No | |
| Maximum Operating Temperature | 60°C | |
| Select all | ||
|---|---|---|
Brand 4D Systems | ||
Product Type Graphics Controller IC | ||
Display Resolution 800 x 480 pixel | ||
Mount Type Flexible | ||
Package Type TQFP | ||
Pin Count 30 | ||
Minimum Supply Voltage 4V | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -10°C | ||
Interface Type I2C, UART | ||
Length 39mm | ||
Standards/Approvals RoHS Compliant | ||
Height 21.5mm | ||
Automotive Standard No | ||
Maximum Operating Temperature 60°C | ||
- COO (Country of Origin):
- PH
The 4D Systems Compact VGA graphics engine designed to interface with standard VGA monitors for rich visual output. It supports multiple resolutions and is powered by a dedicated graphics processor that enables full-color rendering, animations, and audio playback. With flexible I/O options and on-board memory support, it’s ideal for embedded applications requiring multimedia capabilities.
Built in graphics engine with support for images and animations with video clips
Line level PWM audio output for WAV playback
Programmable via a high-level development environment for GUI creation
