RF Solutions ANT-GPS-P20-SMA Square GPS Antenna with SMA Connector, GPS
- RS Stock No.:
- 704-3449
- Mfr. Part No.:
- ANT-GPS-P20-SMA
- Brand:
- RF Solutions
Bulk discount available
Subtotal (1 unit)*
£12.84
(exc. VAT)
£15.41
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 17 unit(s) ready to ship
- Plus 1 unit(s) shipping from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £12.84 |
| 5 + | £12.21 |
*price indicative
- RS Stock No.:
- 704-3449
- Mfr. Part No.:
- ANT-GPS-P20-SMA
- Brand:
- RF Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RF Solutions | |
| Product Type | GPS Antenna | |
| Antenna Physical Form | Square | |
| Connector Type | SMA | |
| Lead Length | 2500mm | |
| Minimum Frequency | 1572.42MHz | |
| Antenna Mount Type | PCB | |
| Connector Gender | Male | |
| Antenna Internal Construction | Dielectric | |
| Maximum Frequency | 1578.42MHz | |
| RF Protocols | GPS | |
| Gain | 2dBi | |
| Lead Included | Yes | |
| Standards/Approvals | CE | |
| Series | ANT-GPS-P20SMA | |
| Select all | ||
|---|---|---|
Brand RF Solutions | ||
Product Type GPS Antenna | ||
Antenna Physical Form Square | ||
Connector Type SMA | ||
Lead Length 2500mm | ||
Minimum Frequency 1572.42MHz | ||
Antenna Mount Type PCB | ||
Connector Gender Male | ||
Antenna Internal Construction Dielectric | ||
Maximum Frequency 1578.42MHz | ||
RF Protocols GPS | ||
Gain 2dBi | ||
Lead Included Yes | ||
Standards/Approvals CE | ||
Series ANT-GPS-P20SMA | ||
- COO (Country of Origin):
- CN

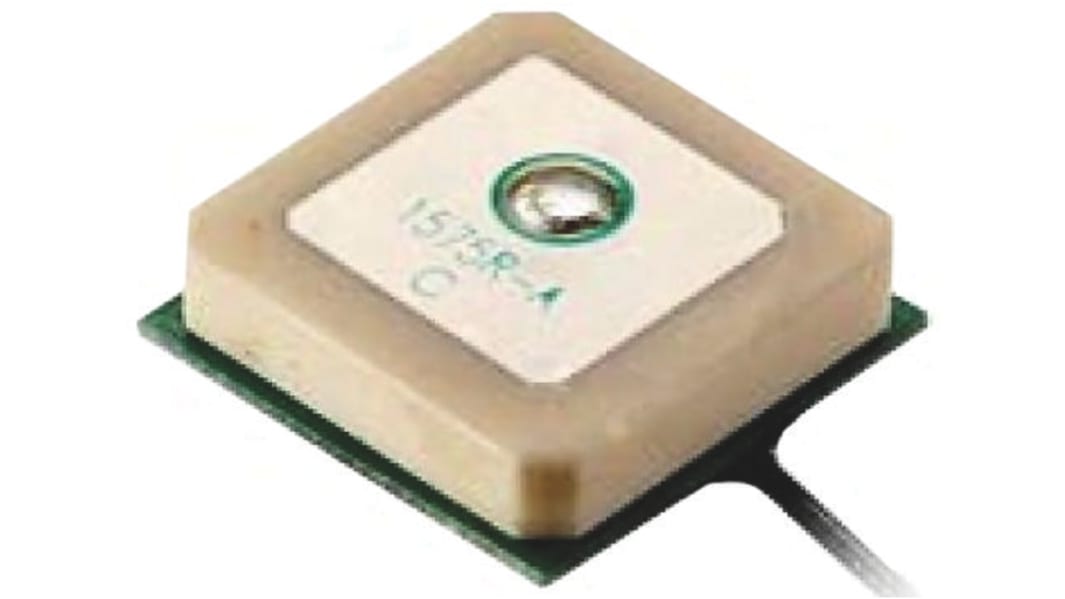

20x20mm GPS Active Patch Antenna Module
Miniature GPS antenna for embedded applications
Centre Frequency 1575.42MHz
VSWR <1.5:1
Gain (Zenith) +2dB
Polarisation RHCP
LNA Gain 28dB (±2)
Noise Figure 1.5dB
2.5m RG174 Connecting Lead
Dimensions 20 x 20 x 8 mm
GPS (Global Positioning System) Antennas
