Hammond 1551 Series Black ABS Enclosure, IP54 Flanged 15 mm, 35 mm, 35 mm
- RS Stock No.:
- 818-0404
- Mfr. Part No.:
- 1551NFLBK
- Brand:
- Hammond
Subtotal (1 unit)*
£1.85
(exc. VAT)
£2.22
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 68 unit(s) ready to ship
- Plus 27 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1.85 |
*price indicative
- RS Stock No.:
- 818-0404
- Mfr. Part No.:
- 1551NFLBK
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Body Material | ABS | |
| Product Type | Enclosure | |
| External Height | 15mm | |
| External Width | 35mm | |
| External Length | 35mm | |
| IP Rating | IP54 | |
| Lid Colour | Black | |
| Colour | Black | |
| Flanged | Yes | |
| Hazardous Area Certification | No | |
| Shielding | Unshielded | |
| Series | 1551 | |
| Standards/Approvals | RoHS | |
| Weight | 20g | |
| Transparent Door | No | |
| Explosion Proof | No | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Body Material ABS | ||
Product Type Enclosure | ||
External Height 15mm | ||
External Width 35mm | ||
External Length 35mm | ||
IP Rating IP54 | ||
Lid Colour Black | ||
Colour Black | ||
Flanged Yes | ||
Hazardous Area Certification No | ||
Shielding Unshielded | ||
Series 1551 | ||
Standards/Approvals RoHS | ||
Weight 20g | ||
Transparent Door No | ||
Explosion Proof No | ||

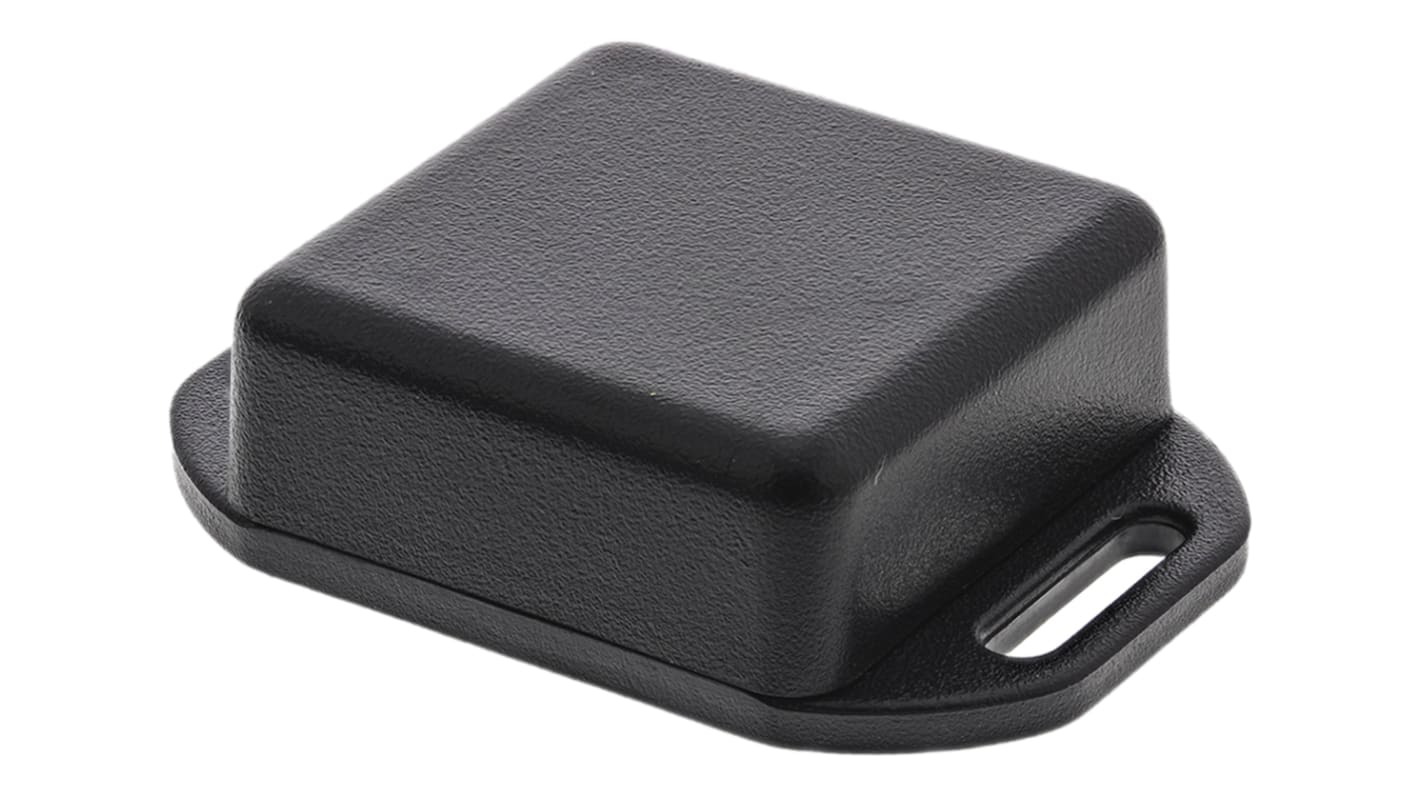

Hammond Enclosure, 35 (L) x 35 (W) x 15mm (H), Flanged Lid, IP54 Rating - 1551 Series - 1551NFLBK
When you need a housing to mount on a wall, pick this miniature flanged enclosure from Hammond. Its robust ABS construction and 3mm-thick lid mean it stands up to knocks and scrapes, so it's a great shout for protecting sensitive electrical components in busy working environments. Thanks to integrated flanges, you can secure it to a flat surface, such as a wall, floor or panel, or hang it from a tie wrap. As the enclosure comes with two self-tapping screws, there's no need for pre-drilling.
Features & Benefits
• Compact dimensions of 35 (L) x 35 (W) x 15mm (H) make it handy for housing a single bit of kit
• Integrated mounting bosses make it easy to secure a PCB inside – you just need two #2 x 3/16" screws
• Versatile product is also useful as a potting box to protect your assembly against shocks
Applications
• Telecommunications networks
• Industrial automation and control
• Electrical engineering
Is this enclosure suitable for harsh environments?
The enclosure's tight lap-joint construction earns it an IP54 rating, meaning it resists most dust and splashes of water from all directions. This makes it a great shout in demanding settings.
