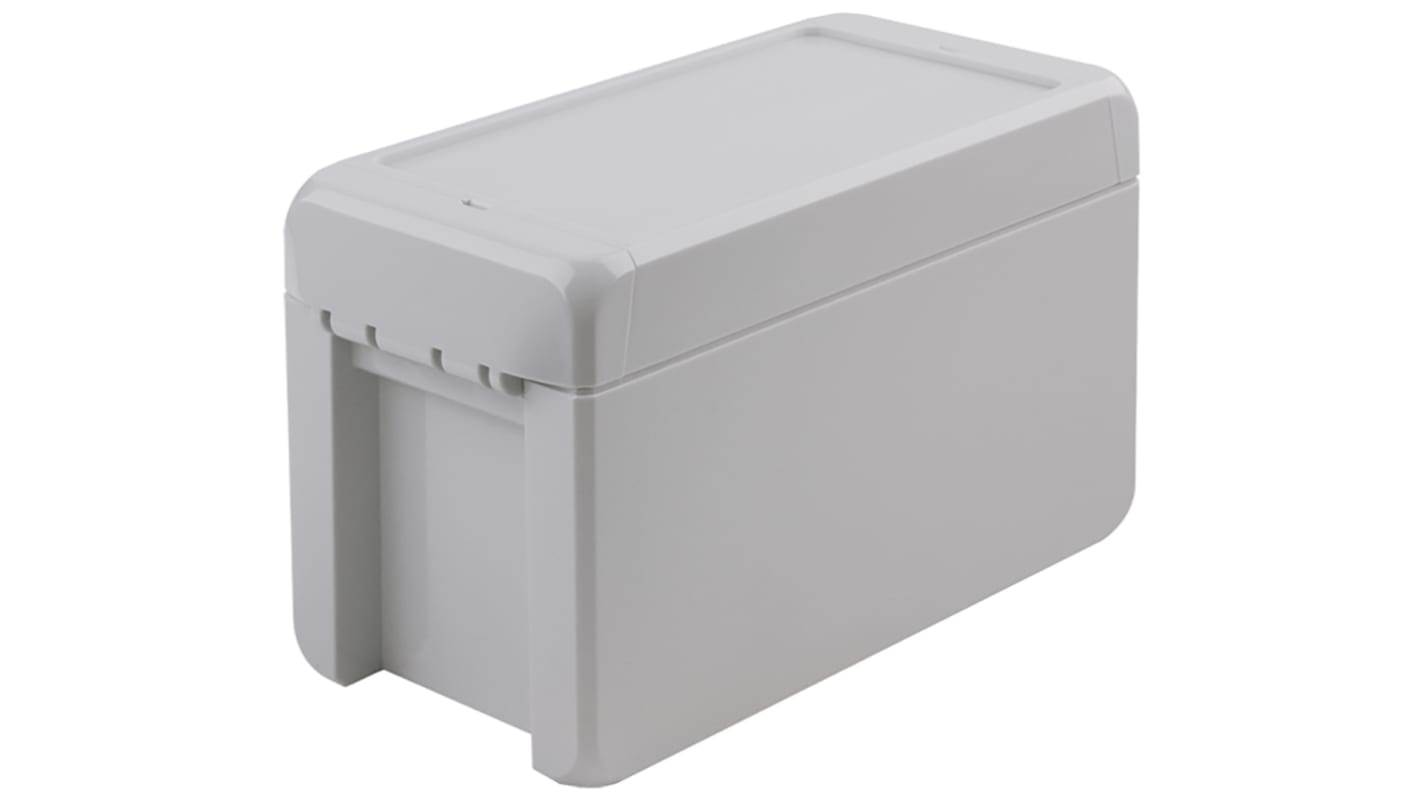

Bopla Bocube Series Light Grey ABS Enclosure, IP66, IP68, Light Grey Lid, 151 x 80 x 90mm

RS Stock No.:: 773-9547
Mfr. Part No.:: 96033135 B 140809 ABS-7035
Brand:: Bopla

Bopla Bocube Series Light Grey ABS Enclosure, IP66, IP68, Light Grey Lid, 151 x 80 x 90mm

Bulk discount available

Price Each

£22.67

(exc. VAT)

£27.20

(inc. VAT)

1 In stock - FREE next working day delivery available*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 - 9	£22.67
10 - 14	£21.73
15 +	£20.81

RS Stock No.:: 773-9547
Mfr. Part No.:: 96033135 B 140809 ABS-7035
Brand:: Bopla

Bopla Bocube ABS Enclosures

Introducing the Bocube ABS enclosures from Bopla. A unique and innovative general purpose enclosure that is ideal for wall mount or desktop applications for industrial or office environments. Available in either light grey (RAL7035) or graphite grey (RAL7024), these versatile polycarbonates enclosures are available in various sizes and feature a captive light grey or graphite grey lid with a recessed membrane keypad area.

Why would you buy the product?

Bocube enclosures offer the ultimate in protection for electronics and switchgear with an added layer of security. They are designed with very few parts which can quickly and easily be assembled with no need for special tools. The patented hinge is a game changer, it offers quick-release catch technology without screws which can be opened with a screwdriver and closed by hand.

Features and Benefits

• ABS UL 94 V0 (flame resistant and self-extinguishing) with foamed in seal
• PCBs and front panels can be mounted in the lid and base
• Recessed membrane keypad area
• Large mounting area for connectors, cable glands and operating elements
• Available in light grey (RAL7035) or graphite grey (RAL7024)
• Hinged quick release latch (enclosure can also be screwed shut)
• A lead seal can be fitted to protect against unauthorised entry (not supplied)
• Suitable for outdoor applications (f1-listing according to UL 746C PU seal, foamed)
• Corrosion resistant
• Recyclable
• IP 66 / IP68 – 1.2 m (2 hours) DIN EN 60529
• RoHS compliant

Typical Applications

• Cable/Wire Management
• IT/Server
• Solar Power Batteries
• Oil and Gas Production
• Food and Beverage Industry
• Telecommunication Industry

Compatible Accessories

• Wall Brackets: Graphite Grey = RS stock no 773-9673 & Light Grey = RS stock no: 773-9682

Frequently Asked Questions

Can the enclosure be used outside?

Bocube enclosures with an IP66/68 rating is dustproof and fully protected when submerged in water – 1.2 m (2 hrs)

Does this product have RFI shielding?

No, this product does not have RFI shielding

What is supplied?

Lid and base, hinged quick-release catches

Note

Wall brackets are available separately and are drilled to screw holes in the base of the enclosure (except 907-5454 & 907-5463).

Membrane Recess Keypad Area

RS stock nos. 773-9459 and 773-9468 feature a 0.5 mm recess

Standards

IP 66/68 1.2m (2 Hours) DIN 60529.

Attribute	Value
Body Material	ABS
External Length	151 mm
External Height	90 mm
External Width	80 mm
External Dimensions	151 x 80 x 90mm
Range	Bocube
IP Rating	IP66, IP68
Colour	Light Grey
Lid Colour	Light Grey
Flanged	No
Shielded	No
Series	Bocube
Weight	203g
Gasket Material	Foamed Polyurethane
RAL Code	RAL 7035
