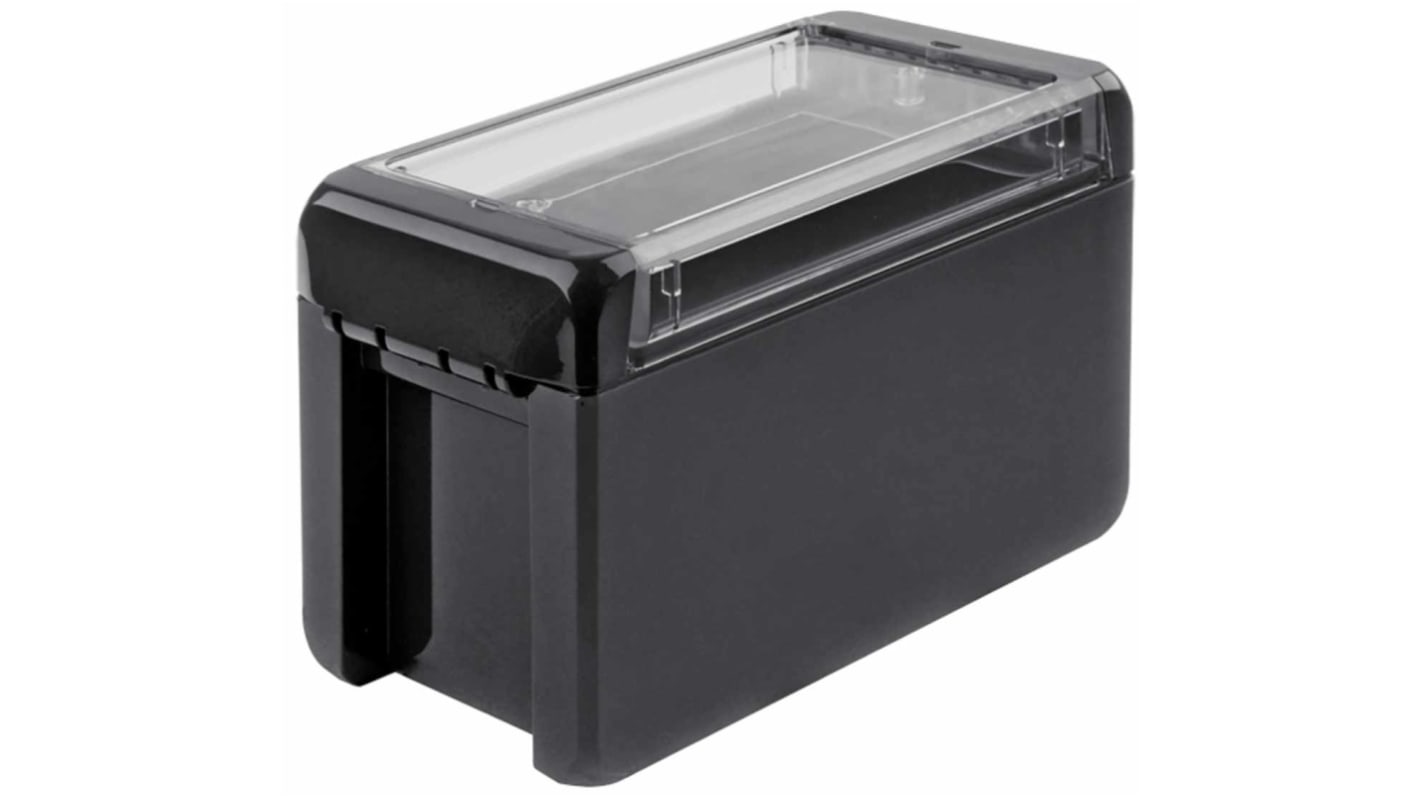

Bopla Bocube Series Graphite Grey Polycarbonate V0 Enclosure, IP66, IP68, IK07, Transparent Lid, 151 x 80 x 90mm

RS Stock No.:: 773-9553
Mfr. Part No.:: 96023134 B 140809 PC-V0-G-7024
Brand:: Bopla

Bopla Bocube Series Graphite Grey Polycarbonate V0 Enclosure, IP66, IP68, IK07, Transparent Lid, 151 x 80 x 90mm

Price Each**

£26.37

(exc. VAT)

£31.64

(inc. VAT)

Available to back order for despatch 19/02/2025*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 +	£26.37

**price indicative

Alternatives

This product is not currently available. Here are our alternative recommendations.

Bopla Bocube Series Graphite Grey ABS Enclosure, IP66, IP68, Graphite Grey Lid, 151 x 80 x 60mm

RS Stock No.: 773-9516

Each

£20.26

(exc. VAT)

£24.31

(inc. VAT)

Bopla Bocube Series Light Grey Polycarbonate Enclosure, IP66, IP68, IK07, Light Grey Lid, 151 x 80 x 60mm

RS Stock No.: 773-9522

Each

£23.72

(exc. VAT)

£28.46

(inc. VAT)

Bopla Bocube Series Light Grey ABS Enclosure, IP66, IP68, Light Grey Lid, 151 x 80 x 60mm

RS Stock No.: 773-9525

Each

£20.26

(exc. VAT)

£24.31

(inc. VAT)

Bopla Bocube Series Graphite Grey Polycarbonate Enclosure, IP66, IP68, IK07, Graphite Grey Lid, 151 x 80 x 60mm

RS Stock No.: 773-9528

Each

£23.72

(exc. VAT)

£28.46

(inc. VAT)

Bopla Bocube Series Graphite Grey Polycarbonate V0 Enclosure, IP66, IP68, IK07, Transparent Lid, 151 x 80 x 60mm

RS Stock No.: 773-9531

Each

£25.05

(exc. VAT)

£30.06

(inc. VAT)

Bopla Bocube Series Light Grey Polycarbonate V0 Enclosure, IP66, IP68, IK07, Transparent Lid, 151 x 80 x 60mm

RS Stock No.: 773-9534

Each

£25.05

(exc. VAT)

£30.06

(inc. VAT)

Bopla Bocube Series Light Grey ABS Enclosure, IP66, IP68, Light Grey Lid, 151 x 80 x 90mm

RS Stock No.: 773-9547

Each

£22.90

(exc. VAT)

£27.48

(inc. VAT)

Bopla Bocube Series Light Grey Polycarbonate V0 Enclosure, IP66, IP68, IK07, Transparent Lid, 151 x 80 x 90mm

RS Stock No.: 773-9556

Each

£29.01

(exc. VAT)

£34.81

(inc. VAT)

RS Stock No.:: 773-9553
Mfr. Part No.:: 96023134 B 140809 PC-V0-G-7024
Brand:: Bopla

Bopla Bocube Polycarbonate Enclosures

Introducing the Bocube polycarbonate enclosures from Bopla. A unique and innovative general purpose enclosure that is ideal for wall mount or desktop applications for industrial or office environments. Available in either light grey (RAL7035) or graphite grey (RAL7024), these versatile polycarbonates enclosures are available in various sizes and features a captive transparent, light grey or graphite grey lid with a 0.5 mm or 2 mm deep recessed membrane keypad area.

Why would you buy the product?

Bocube enclosures offer the ultimate in protection for electronics and switchgear with an added layer of security. They are designed with very few parts which can quickly and easily be assembled with no need for special tools. The patented hinge is a game changer, it offers quick-release catch technology without screws which can be opened with a screwdriver and closed by hand.

Features & Benefits

• Polycarbonate (PC) UL 94 V0 (flame resistant and self-extinguishing) with foamed in seal
• PCBs and front panels can be mounted in the lid and base
• Recessed membrane keypad area
• Large mounting area for connectors, cable glands and operating elements
• Available in light grey (RAL7035) or graphite grey (RAL7024)
• Hinged quick release latch (enclosure can also be screwed shut)
• A lead seal can be fitted to protect against unauthorised entry (not supplied)
• Recyclable
• IP Rating: IP66 / IP68
• RoHS compliant

Typical Applications

• Cable/Wire Management
• IT/Server
• Solar Power Batteries
• Oil and Gas Production
• Food and Beverage Industry
• Telecommunication Industry

Compatible Accessories

Bopla Wall Brackets for use with Bocube Enclosure: Light Grey = RS Stock no: 773-9682, Graphite Grey = RS Stock no: 773-9673
• 11 mm Pressure Compensation Element for use with Bocube Enclosure - RS Stock no: 907-5315

(IP) Ingress Protection and what it means

IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact and water in electrical enclosures.

Frequently Asked Questions

Can the enclosure be used outside?

Bocube enclosures with an IP66/68 rating is dustproof and fully protected when submerged in water – 1.2 m (2 hrs)

Does this product have RFI shielding?

No, this product does not have RFI shielding

What is supplied?

Lid and base, hinged quick-release catches

Note

• Wall brackets are available separately and are drilled to screw holes in the base of the enclosure (except RS stock no: 907-5466, 907-5460, 907-5479, 907-5472).

Membrane Recess Keypad Area

RS stock no: 773-9461, 773-9465, 773-9474 and 773-9477 feature a 0.5 mm recess.

Standards

IP 66/68 1.2m (2 Hours) DIN 60529.

Attribute	Value
Body Material	Polycarbonate V0
External Length	151 mm
External Height	90 mm
External Width	80 mm
External Dimensions	151 x 80 x 90mm
Range	Bocube
IP Rating	IP66, IP68
Colour	Graphite Grey
Lid Colour	Transparent
Flanged	No
Shielded	No
Series	Bocube
IK Rating	IK07
Weight	241g
RAL Code	RAL 7024
Gasket Material	Foamed Polyurethane
