Schneider Electric PanelSeT Accessoires Series Polyester Enclosure Accessory, IP66 19.5 mm, 635 mm, 185 mm
- RS Stock No.:
- 288-2122
- Mfr. Part No.:
- NSYAEUBU61SC
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£127.71
(exc. VAT)
£153.25
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £127.71 |
*price indicative
- RS Stock No.:
- 288-2122
- Mfr. Part No.:
- NSYAEUBU61SC
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Enclosure Accessory | |
| Body Material | Polyester | |
| External Height | 19.5mm | |
| External Length | 635mm | |
| External Width | 185mm | |
| IP Rating | IP66 | |
| Hazardous Area Certification | No | |
| Series | PanelSeT Accessoires | |
| Standards/Approvals | EU RoHS Declaration, REACH Declaration | |
| Weight | 1.3kg | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Enclosure Accessory | ||
Body Material Polyester | ||
External Height 19.5mm | ||
External Length 635mm | ||
External Width 185mm | ||
IP Rating IP66 | ||
Hazardous Area Certification No | ||
Series PanelSeT Accessoires | ||
Standards/Approvals EU RoHS Declaration, REACH Declaration | ||
Weight 1.3kg | ||

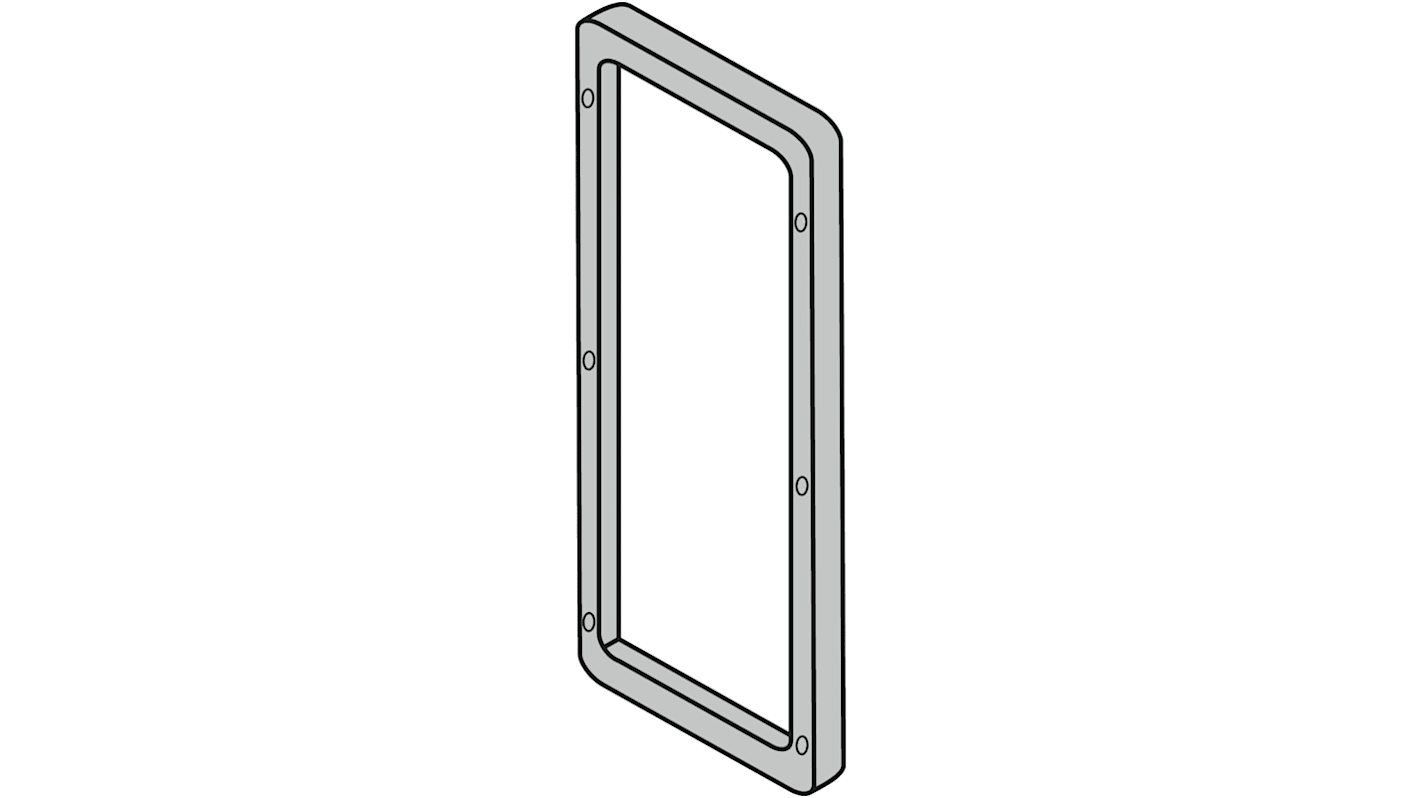

The Schneider Electric coupling frame is designed for side coupling of two enclosures. With a sustainable Green Premium product status, this coupling frame is made of polyester charged with fibreglass, making it both lightweight and sturdy. The IP66 degree of protection ensures reliability in various environments, making it ideal for a range of applications.
Frame size of 635x185mm for side by side mounting of enclosures
Compatible with Spacial S3D and CRN compact enclosures
Easy installation with fixing elements included in a set
Constructed from polyester charged with fibreglass for durability
IP66 rated for high level of protection against dust and water ingress
