Over 800,000 products available

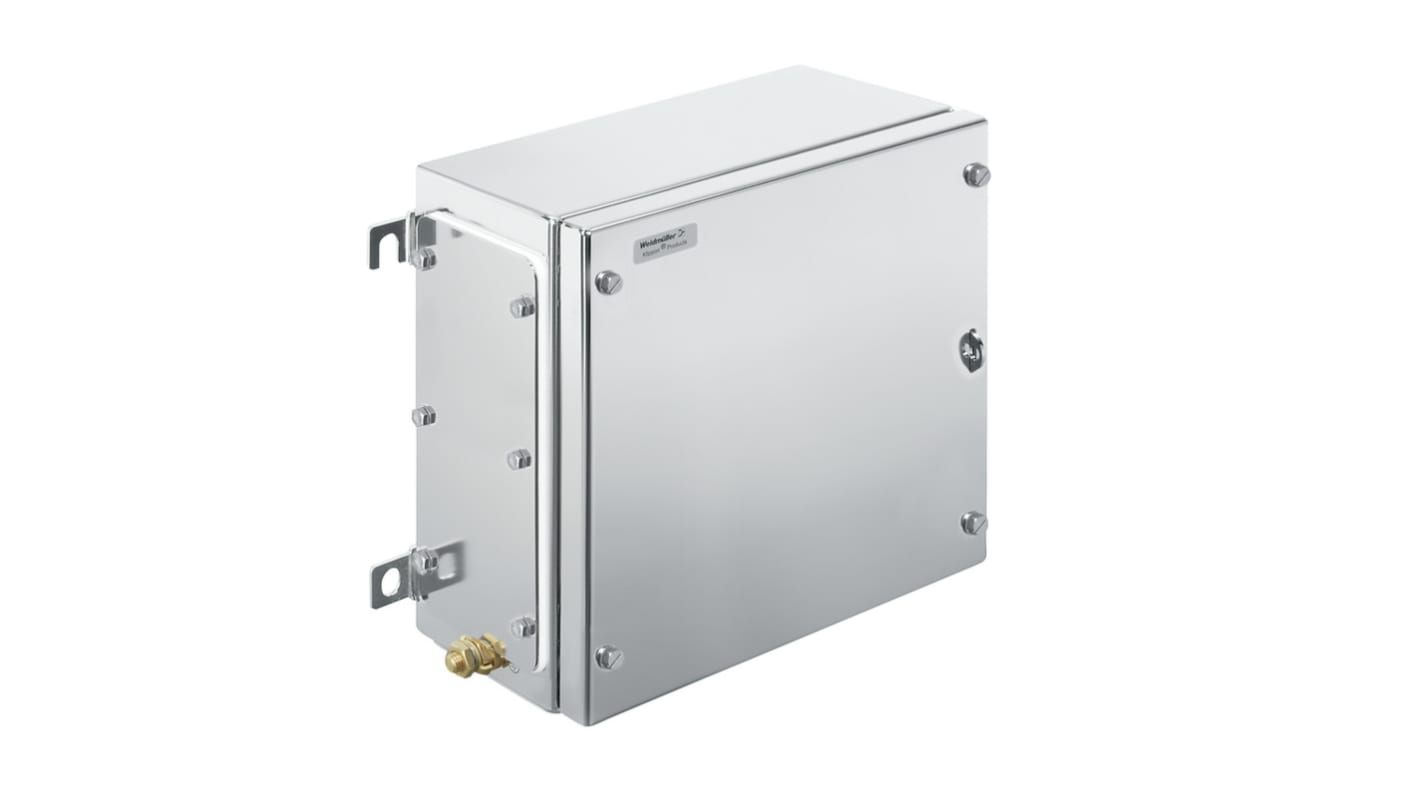

Weidmüller Klippon TB MH Series Grey 316 Stainless Steel Enclosure, IP67, IP66 Flanged 260 mm, 260 mm, 200 mm

View all General Purpose Enclosures

Subtotal (1 unit)*

£487.83

(exc. VAT)

£585.40

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 24 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£487.83

*price indicative

RS Stock No.:
287-5220
Distrelec Article No.:
302-88-318
Mfr. Part No.:
1194680000
Brand:
Weidmüller
Find similar products by selecting one or more attributes.
Select all

Brand

Weidmüller

Product Type

Enclosure

Body Material

316 Stainless Steel

External Height

260mm

External Length

260mm

External Width

200mm

IP Rating

IP67, IP66

Lid Colour

Grey

Colour

Grey

Flanged

Yes

Hazardous Area Certification

UL, NEPSI, KC, INMETRO, IECEx, DNV, CCOE, CCC, ATEX

Series

Klippon TB MH

Mounting plate

Yes

Weight

6.840g

Standards/Approvals

IEC 60079-7, IEC 60079-31, IEC 60079-0, EN 60079-7, EN 60079-31, EN 60079-0, DIN EN 62208, DIN EN 61373 Class 1B, DIN EN 15085-2

Gasket Material

Silicone

Explosion Proof

Yes

RoHS Status: Exempt

The Weidmuller Klippon TB and MH enclosure range metal housings offer superior performance in challenging environments and meet stricter requirements in potentially explosive atmospheres, enhancing the already successful Klippon TB product line, which is

Equipped with up to 4 gland plates

The gasket is protected against compression

Completely removable padlock tab

Cover lock outside the sealed zone

Improved temperature performance

Earthing stud in the cover and base of the enclosure

Welded mounting
