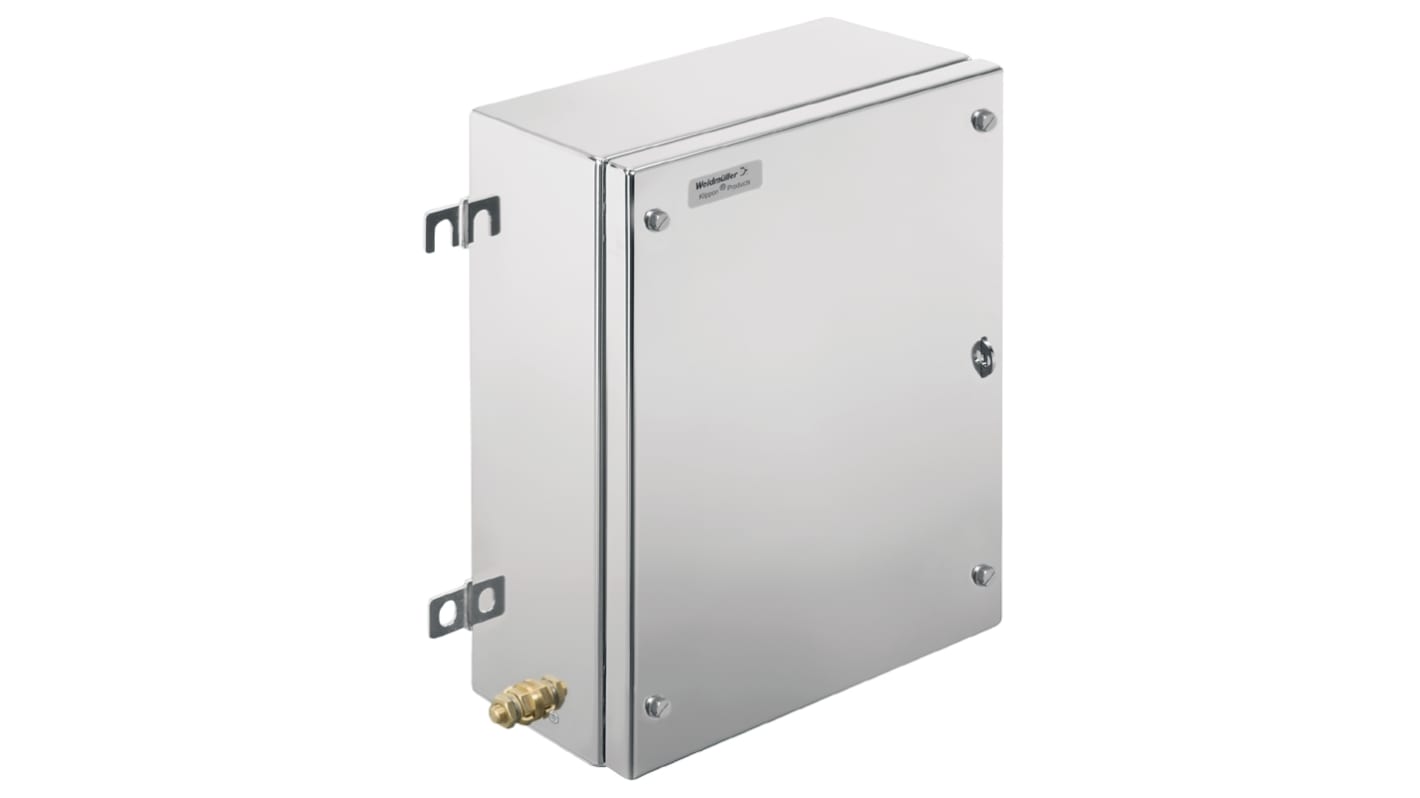

Weidmüller Flanged Klippon TB MH Series Grey Grey Lid 316 Stainless Steel Enclosure, IP67, IP66 350 mm, 260 mm, 200 mm
- RS Stock No.:
- 287-5237
- Distrelec Article No.:
- 302-88-336
- Mfr. Part No.:
- 1194860000
- Brand:
- Weidmüller
Subtotal (1 unit)*
£501.80
(exc. VAT)
£602.16
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 19 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £501.80 |
*price indicative
- RS Stock No.:
- 287-5237
- Distrelec Article No.:
- 302-88-336
- Mfr. Part No.:
- 1194860000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Body Material | 316 Stainless Steel | |
| Product Type | Enclosure | |
| External Height | 350mm | |
| External Width | 200mm | |
| External Length | 260mm | |
| IP Rating | IP67, IP66 | |
| Lid Colour | Grey | |
| Colour | Grey | |
| Flanged | Yes | |
| Hazardous Area Certification | INMETRO, IECEx, DNV, CCOE, ATEX | |
| Series | Klippon TB MH | |
| Mounting plate | Yes | |
| Weight | 6.7g | |
| Standards/Approvals | etc, DIN EN 62208, DIN EN 61373 | |
| Explosion Proof | Yes | |
| Gasket Material | Silicone | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Body Material 316 Stainless Steel | ||
Product Type Enclosure | ||
External Height 350mm | ||
External Width 200mm | ||
External Length 260mm | ||
IP Rating IP67, IP66 | ||
Lid Colour Grey | ||
Colour Grey | ||
Flanged Yes | ||
Hazardous Area Certification INMETRO, IECEx, DNV, CCOE, ATEX | ||
Series Klippon TB MH | ||
Mounting plate Yes | ||
Weight 6.7g | ||
Standards/Approvals etc, DIN EN 62208, DIN EN 61373 | ||
Explosion Proof Yes | ||
Gasket Material Silicone | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The Weidmuller Klippon TB and MH enclosure range metal housings offer superior performance in challenging environments and meet stricter requirements in potentially explosive atmospheres, enhancing the already successful Klippon TB product line, which is
Equipped with up to 4 gland plates
The gasket is protected against compression
Completely removable padlock tab
Cover lock outside the sealed zone
Improved temperature performance
Earthing stud in the cover and base of the enclosure
Welded mounting
