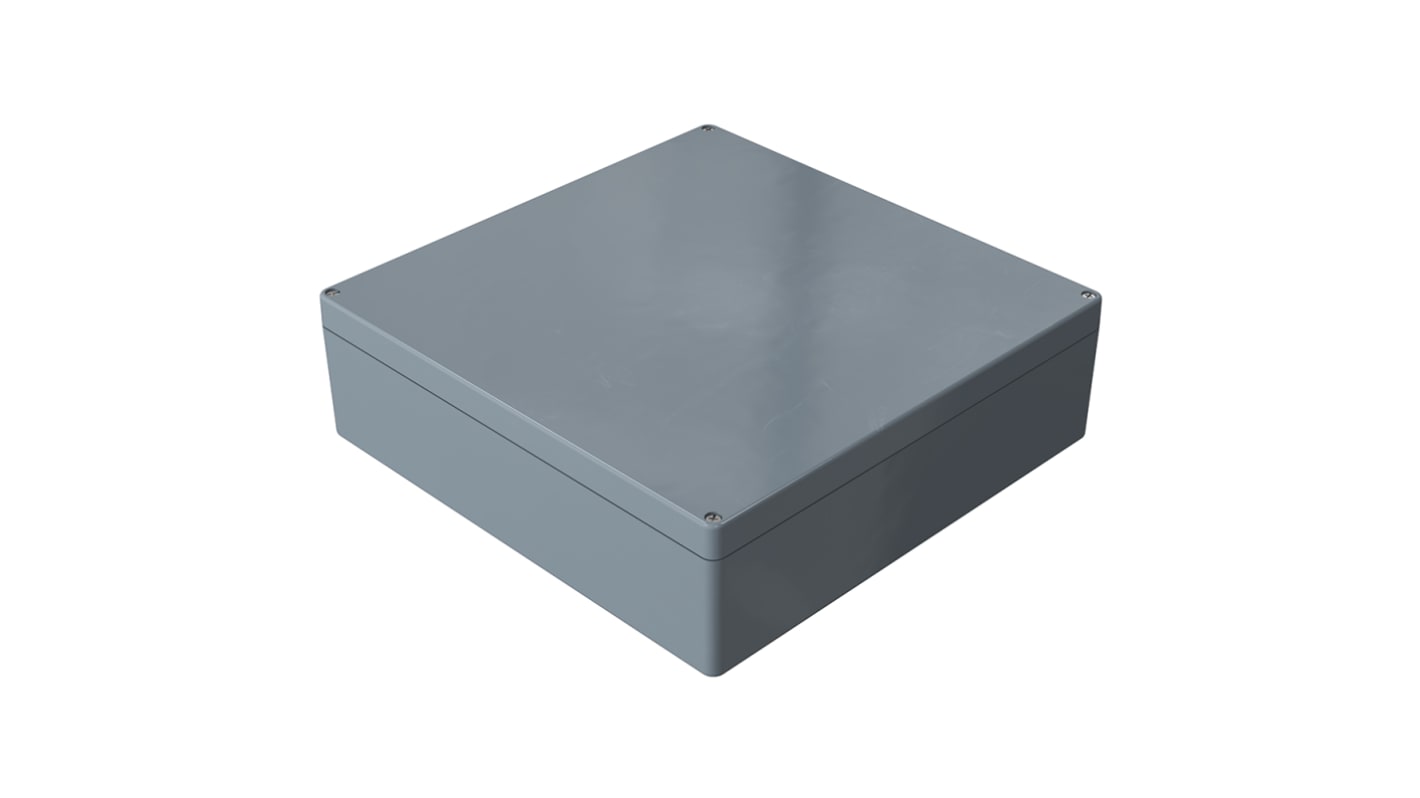

Rose Polyester Standard Series Grey Glass Fibre Reinforced Polyester Enclosure, IP66, IK08, Grey Lid, 405 x 400 x 121mm
- RS Stock No.:
- 254-5042
- Mfr. Part No.:
- 02414012
- Brand:
- Rose
1 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£479.17
(exc. VAT)
£575.00
(inc. VAT)
Units | Per unit |
1 + | £479.17 |
- RS Stock No.:
- 254-5042
- Mfr. Part No.:
- 02414012
- Brand:
- Rose
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
The Rose polyester enclosure having height is 405 mm, width is 400 mm and depth is 121 mm. The enclosure are made from polyster. The color of the product is Squirrel Gray (RAL 7000). Special colors also available as per customer demands. And the product are fully insulated according to VDE 0100.
Height is 405 mm
Width is 400 mm
Depth is 121 mm
Minium temperature are is -40 °C
Maximum temperature is 90 °C
Toxicity is aalogen free
Surface resistance are >10^12 Ohm
Width is 400 mm
Depth is 121 mm
Minium temperature are is -40 °C
Maximum temperature is 90 °C
Toxicity is aalogen free
Surface resistance are >10^12 Ohm
Specifications
Attribute | Value |
---|---|
Body Material | Glass Fibre Reinforced Polyester |
External Length | 121 mm |
External Height | 121 mm |
External Width | 400 mm |
External Dimensions | 405 x 400 x 121mm |
Range | Glass fibre reinfored Polyeser Enclosure |
IP Rating | IP66 |
Colour | Grey |
Lid Colour | Grey |
Flanged | No |
Hazardous Area Certification | Lloyds Register, Maritime Register, UL 508 |
Shielded | No |
Series | Polyester Standard |
Number Of Knockouts | 0 |
Weight | 7380g |
Transparent Door | No |
IK Rating | IK08 |
Gasket Material | Chloroprene |
RAL Code | RAL 7000 |
