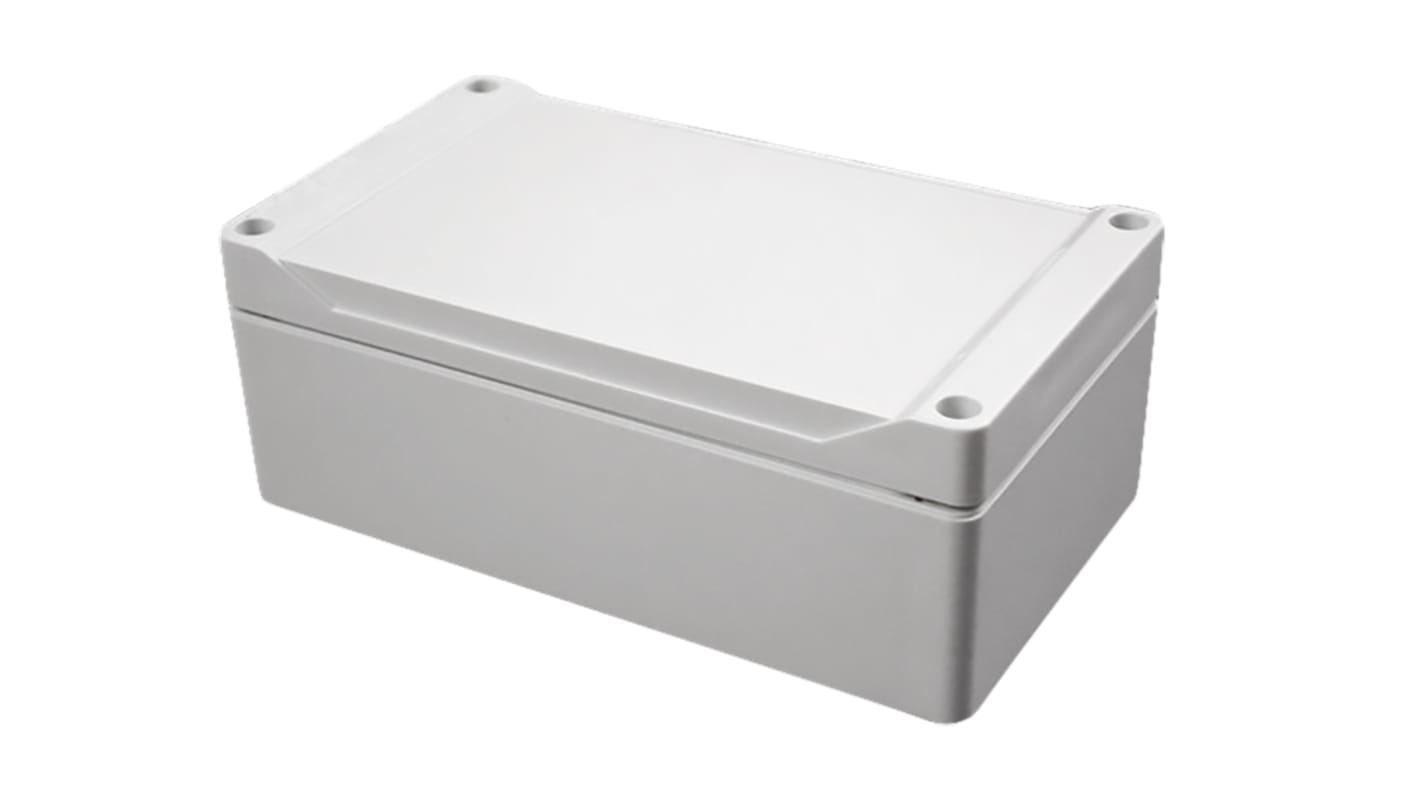

Hammond 1555F Series Grey ABS Plastic Enclosure, IP66 Flanged 62 mm, 180.3 mm, 119.4 mm
- RS Stock No.:
- 230-6499
- Mfr. Part No.:
- 1555HF42GY
- Brand:
- Hammond
Subtotal (1 unit)*
£18.35
(exc. VAT)
£22.02
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
- Plus 63 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £18.35 |
*price indicative
- RS Stock No.:
- 230-6499
- Mfr. Part No.:
- 1555HF42GY
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Body Material | ABS Plastic | |
| Product Type | Enclosure | |
| External Height | 62mm | |
| External Width | 119.4mm | |
| External Length | 180.3mm | |
| IP Rating | IP66 | |
| Colour | Grey | |
| Lid Colour | Grey | |
| Flanged | Yes | |
| Hazardous Area Certification | NO | |
| Internal Mount Type | DIN Rail, Standoffs | |
| Series | 1555F | |
| Standards/Approvals | cULus, RoHS | |
| Gasket Material | Silicone | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Body Material ABS Plastic | ||
Product Type Enclosure | ||
External Height 62mm | ||
External Width 119.4mm | ||
External Length 180.3mm | ||
IP Rating IP66 | ||
Colour Grey | ||
Lid Colour Grey | ||
Flanged Yes | ||
Hazardous Area Certification NO | ||
Internal Mount Type DIN Rail, Standoffs | ||
Series 1555F | ||
Standards/Approvals cULus, RoHS | ||
Gasket Material Silicone | ||
The Hammond 1555 series watertight ABS enclosure, flanged lid. Ideally suited for mounting printed circuit boards or DIN rail mounted components. ABS Versions are molded from general purpose material which carries a flammability rating of UL94-HB. For indoor use.
Designed for harsh industrial environments or outdoor applications (security, outdoor wireless, controls etc. etc.)
Ideally suited for mounting printed circuit boards, panels or DIN rail mounted components (see photo features for details).
Designed for wall mounting. Interior is secure as lid screws are behind the lid. Can be made more secure if wall mounted with security screws (tamper resistant screws).
Satin texture finish with smooth recessed surface on lid for a membrane keypad or label
