Hammond 1555F Series Light Grey ABS Enclosure, IP66 Flanged 62 mm, 119.4 mm, 119.4 mm
- RS Stock No.:
- 229-1164
- Mfr. Part No.:
- 1555NF42GY
- Brand:
- Hammond
Subtotal (1 unit)*
£16.40
(exc. VAT)
£19.68
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £16.40 |
*price indicative
- RS Stock No.:
- 229-1164
- Mfr. Part No.:
- 1555NF42GY
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Product Type | Enclosure | |
| Body Material | ABS | |
| External Height | 62mm | |
| External Width | 119.4mm | |
| External Length | 119.4mm | |
| IP Rating | IP66 | |
| Lid Colour | Grey | |
| Colour | Light Grey | |
| Flanged | Yes | |
| Hazardous Area Certification | No | |
| Series | 1555F | |
| Internal Mount Type | PCB | |
| Standards/Approvals | RoHS, cULus | |
| Gasket Material | Silicon | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Product Type Enclosure | ||
Body Material ABS | ||
External Height 62mm | ||
External Width 119.4mm | ||
External Length 119.4mm | ||
IP Rating IP66 | ||
Lid Colour Grey | ||
Colour Light Grey | ||
Flanged Yes | ||
Hazardous Area Certification No | ||
Series 1555F | ||
Internal Mount Type PCB | ||
Standards/Approvals RoHS, cULus | ||
Gasket Material Silicon | ||

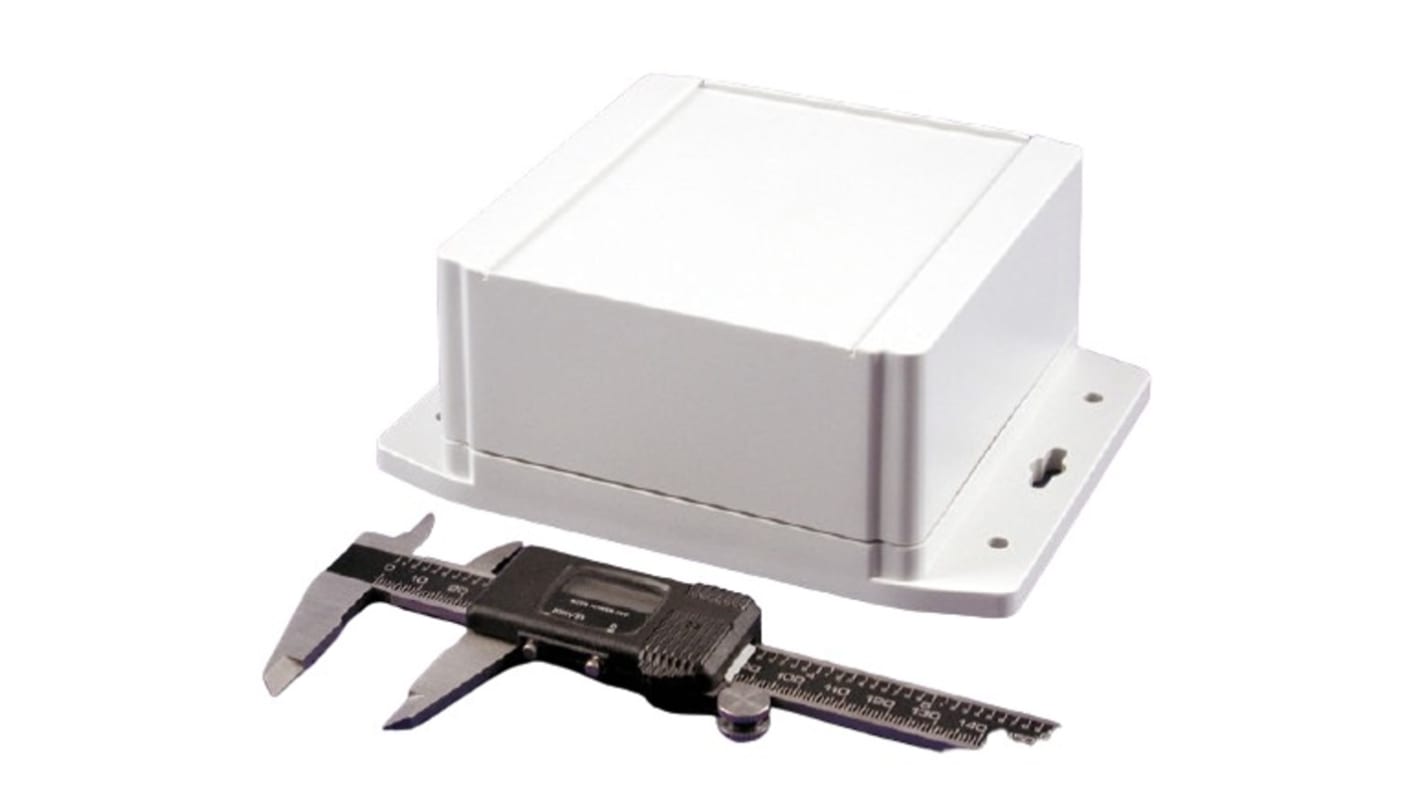

The Hammond 1555F series watertight ABS enclosure flanged lid. It has 4.7 x 4.7 x 2.44 inch dimension.
General purpose ABS plastic (material carries a UL flammability rating of UL94 HB). Not recommended for outdoor use
designed to meet IP66
