Hammond 1551 Series Black Black Lid ABS Enclosure, IP30, 20 mm x 40 mm x 40 mm
- RS Stock No.:
- 197-4494
- Distrelec Article No.:
- 301-29-737
- Mfr. Part No.:
- 1551V1BK
- Brand:
- Hammond
Subtotal (1 unit)*
£1.85
(exc. VAT)
£2.22
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1.85 |
*price indicative
- RS Stock No.:
- 197-4494
- Distrelec Article No.:
- 301-29-737
- Mfr. Part No.:
- 1551V1BK
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Product Type | Enclosure | |
| Body Material | ABS | |
| External Height | 20mm | |
| Ventilated | Yes | |
| External Length | 40mm | |
| External Width | 40mm | |
| IP Rating | IP30 | |
| Lid Colour | Black | |
| Colour | Black | |
| Flanged | No | |
| Hazardous Area Certification | No | |
| Shielding | Unshielded | |
| Internal Mount Type | Wall | |
| Series | 1551 | |
| Number of Knockouts | 1 | |
| Weight | 11g | |
| Standards/Approvals | RoHS | |
| Explosion Proof | No | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Product Type Enclosure | ||
Body Material ABS | ||
External Height 20mm | ||
Ventilated Yes | ||
External Length 40mm | ||
External Width 40mm | ||
IP Rating IP30 | ||
Lid Colour Black | ||
Colour Black | ||
Flanged No | ||
Hazardous Area Certification No | ||
Shielding Unshielded | ||
Internal Mount Type Wall | ||
Series 1551 | ||
Number of Knockouts 1 | ||
Weight 11g | ||
Standards/Approvals RoHS | ||
Explosion Proof No | ||
- COO (Country of Origin):
- TW

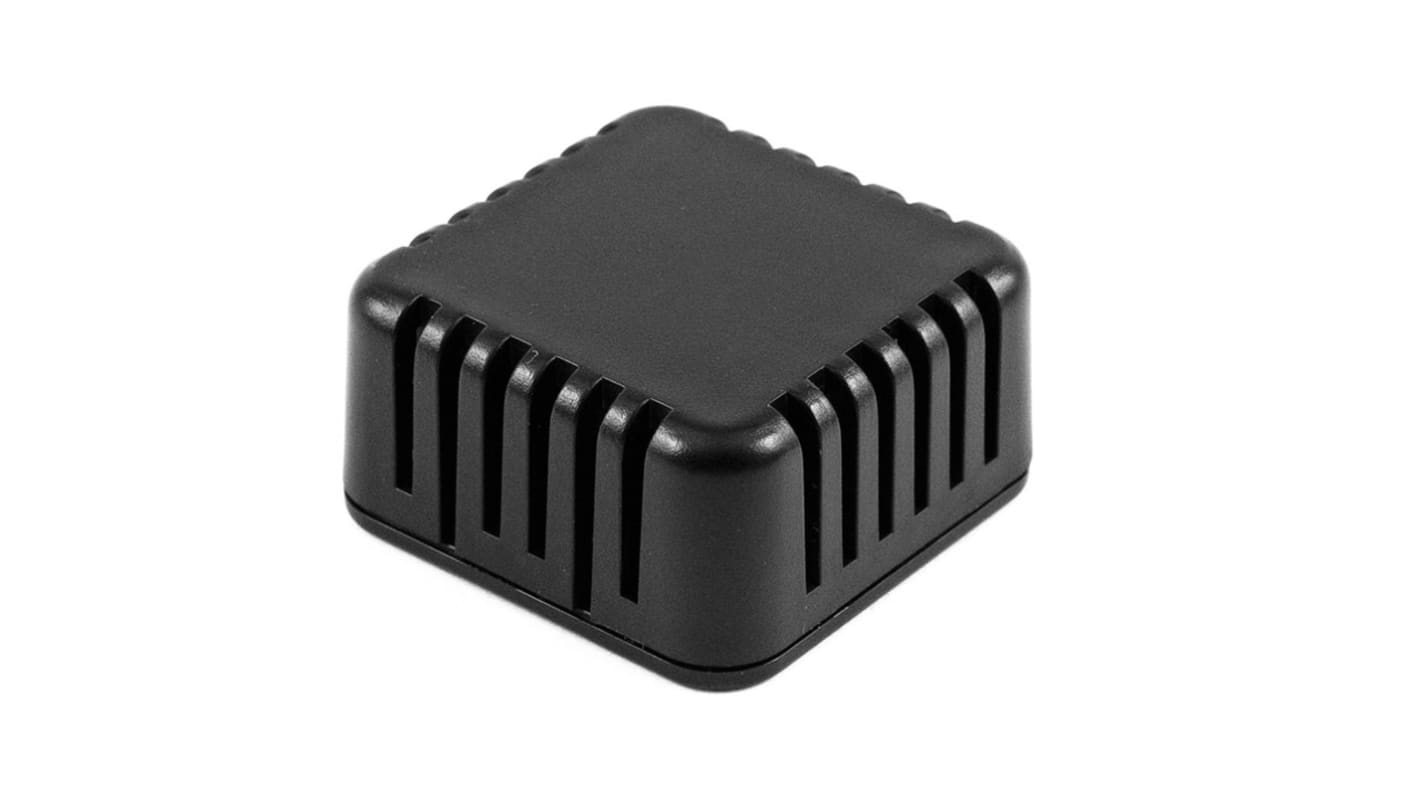

The Hammond 1551V1BK enclosure has a vented design which protects electronics from harmful contact with hands or tools, but allows entry of air and moisture for applications which require environmental exposure. It is ideally suited for mounting of printed circuit boards. The 1551V1BK slots on the base of the enclosure which allows an easy wall-mounting. It has a satin texture finish with a knockout on the base which can be removed with a screwdriver and used for wire entry.
Made of ABS Plastic
IP Rating IP30
Black colour
