Hammond 1551 Series Black Black Lid ABS Enclosure, IP54 20 mm, 40 mm, 40 mm
- RS Stock No.:
- 513-5397
- Distrelec Article No.:
- 150-34-848
- Mfr. Part No.:
- 1551PBK
- Brand:
- Hammond
Subtotal (1 unit)*
£2.01
(exc. VAT)
£2.41
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 52 unit(s) ready to ship
- Plus 117 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2.01 |
*price indicative
- RS Stock No.:
- 513-5397
- Distrelec Article No.:
- 150-34-848
- Mfr. Part No.:
- 1551PBK
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Body Material | ABS | |
| Product Type | Enclosure | |
| External Height | 20mm | |
| External Width | 40mm | |
| External Length | 40mm | |
| IP Rating | IP54 | |
| Colour | Black | |
| Lid Colour | Black | |
| Flanged | No | |
| Shielding | Unshielded | |
| Hazardous Area Certification | No | |
| Internal Mount Type | PCB | |
| Series | 1551 | |
| Weight | 18g | |
| Standards/Approvals | RoHS | |
| Transparent Door | No | |
| Explosion Proof | No | |
| Select all | ||
|---|---|---|
Brand Hammond | ||
Body Material ABS | ||
Product Type Enclosure | ||
External Height 20mm | ||
External Width 40mm | ||
External Length 40mm | ||
IP Rating IP54 | ||
Colour Black | ||
Lid Colour Black | ||
Flanged No | ||
Shielding Unshielded | ||
Hazardous Area Certification No | ||
Internal Mount Type PCB | ||
Series 1551 | ||
Weight 18g | ||
Standards/Approvals RoHS | ||
Transparent Door No | ||
Explosion Proof No | ||
- COO (Country of Origin):
- US

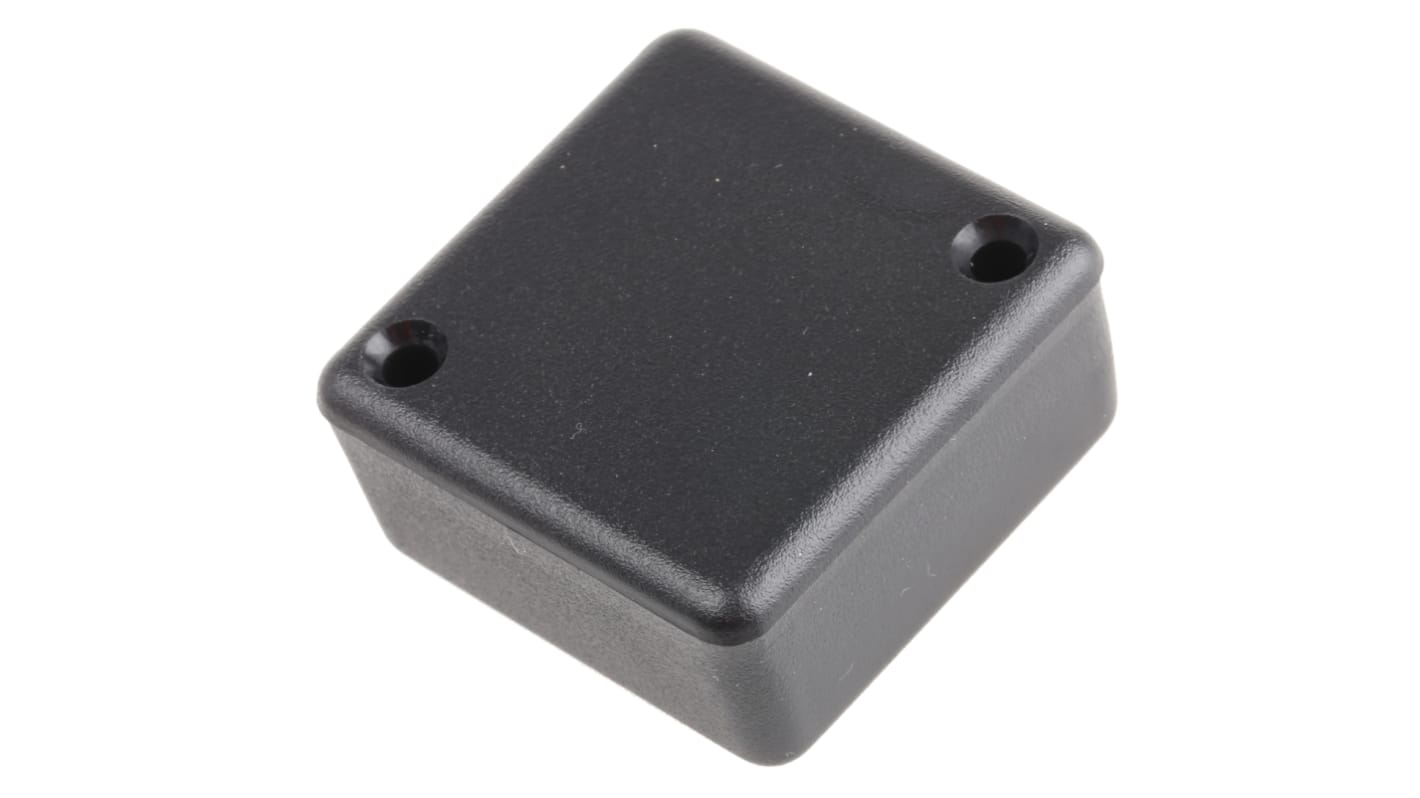

Hammond Enclosure, 40 (L) x 40 (W) x 20mm (H), Screw-on Lid, No Knockouts - 1551 Series - 1551PBK
Looking for a compact PCB storage option? This Hammond enclosure measures just 40 (L) x 40 (W) x 20mm (H), so it's a sure fit for tucking board-mounted systems into a tight space. Thanks to its IP54 rating, you can be sure the box keeps your components clear of dust and water splashes to cut the risk of corrosion. Getting inside to check on your kit regularly is hassle-free, as the cover closes with just two screws. The enclosure's made of hard-wearing ABS, meaning it's long-lasting and resists impact.
Features & Benefits
• Comes with built-in standoffs for easy and secure board mounting
• Blind lid hides your setup from view, minimising the risk of tampering
• Fire-safe ABS material boosts workplace safety
• Colour-matched black screws achieve a professional-looking finish
• No knockouts, so you have the option to customise the unit to suit your setup
Applications
• Automotive industry
• Security systems
• Warehouses
• Workshops
Do I need to drill holes to fit the lid?
No. The lid has pre-drilled holes and the enclosure comes with self-tapping screws to minimise preparation time.
