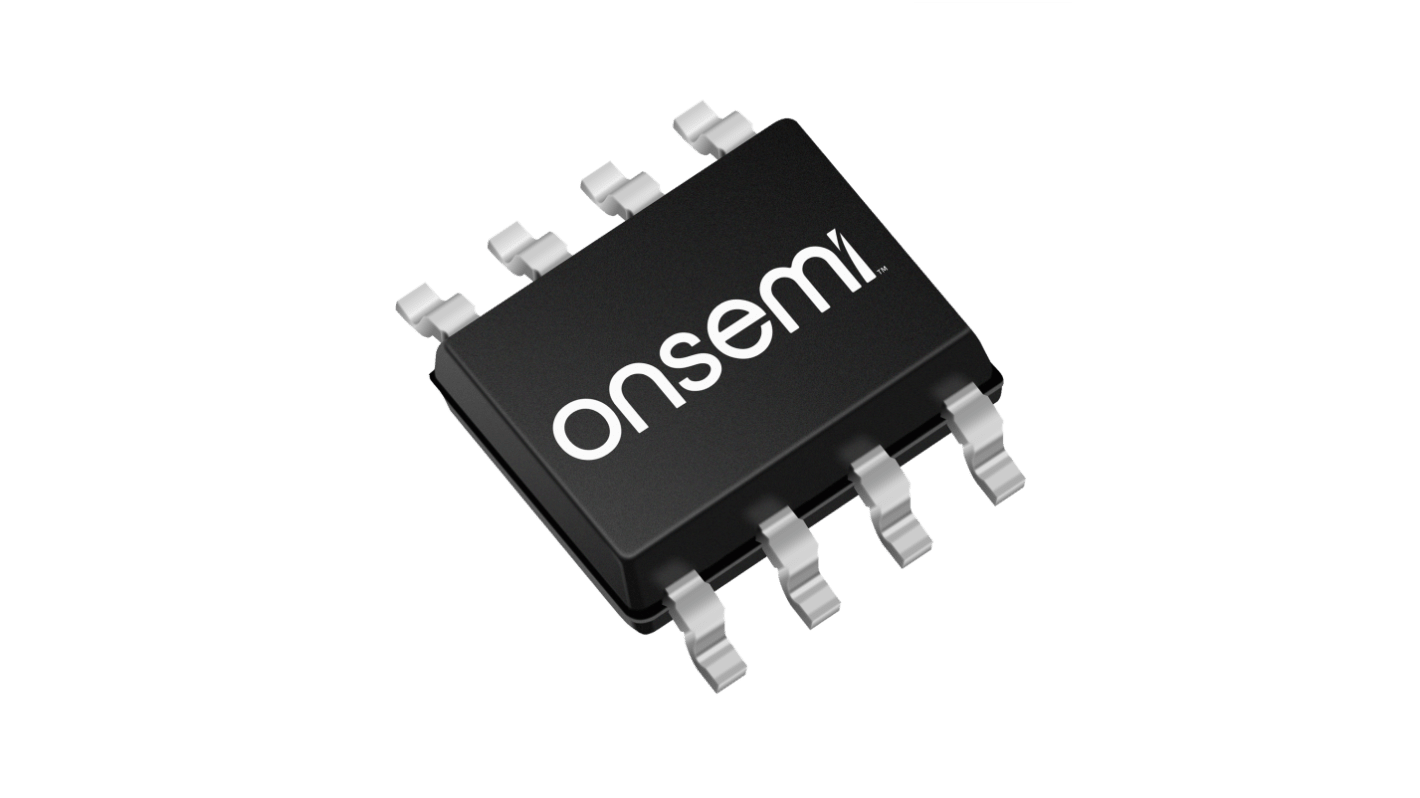

onsemi NCV51752CBDR2G, Isolated Gate Driver 1, 9 A 8-Pin 30 V, SOIC-8 NB
- RS Stock No.:
- 277-031
- Mfr. Part No.:
- NCV51752CBDR2G
- Brand:
- onsemi
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 5 units)*
£14.06
(exc. VAT)
£16.87
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 04 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £2.812 | £14.06 |
| 50 - 95 | £2.67 | £13.35 |
| 100 - 495 | £2.474 | £12.37 |
| 500 - 995 | £2.278 | £11.39 |
| 1000 + | £2.194 | £10.97 |
*price indicative
- RS Stock No.:
- 277-031
- Mfr. Part No.:
- NCV51752CBDR2G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Gate Driver Module | |
| Output Current | 9A | |
| Pin Count | 8 | |
| Package Type | SOIC-8 NB | |
| Fall Time | 8.3ns | |
| Driver Type | Isolated Gate Driver | |
| Rise Time | 22ns | |
| Minimum Supply Voltage | 6.5V | |
| Number of Drivers | 1 | |
| Maximum Supply Voltage | 30V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Height | 1.75mm | |
| Series | NCV51752 | |
| Standards/Approvals | UL1577, SGS FIMO IEC 62386-1, CQC GB4943.1-2011 | |
| Length | 5mm | |
| Mount Type | Surface | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Gate Driver Module | ||
Output Current 9A | ||
Pin Count 8 | ||
Package Type SOIC-8 NB | ||
Fall Time 8.3ns | ||
Driver Type Isolated Gate Driver | ||
Rise Time 22ns | ||
Minimum Supply Voltage 6.5V | ||
Number of Drivers 1 | ||
Maximum Supply Voltage 30V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Height 1.75mm | ||
Series NCV51752 | ||
Standards/Approvals UL1577, SGS FIMO IEC 62386-1, CQC GB4943.1-2011 | ||
Length 5mm | ||
Mount Type Surface | ||
Automotive Standard AEC-Q100 | ||
- COO (Country of Origin):
- PH
The ON Semiconductor Isolated Single Channel Gate Driver is designed for fast switching of power MOSFETs and SiC MOSFET power switches. It offers short and matched propagation delays, high dV/dt immunity, and the ability to generate a negative bias rail for faster turn-off. Available in a compact 4 mm SOIC-8 package, it supports an isolation voltage of up to 3.75 kVRMS, ensuring improved reliability.
Minimum CMTI of 200 V/ns dV/dt
Negative 5−V handling capability on input pins
Propagation delay typical 36 ns with 5 ns max delay matching
AEC Q100 qualified for automotive application requirements
