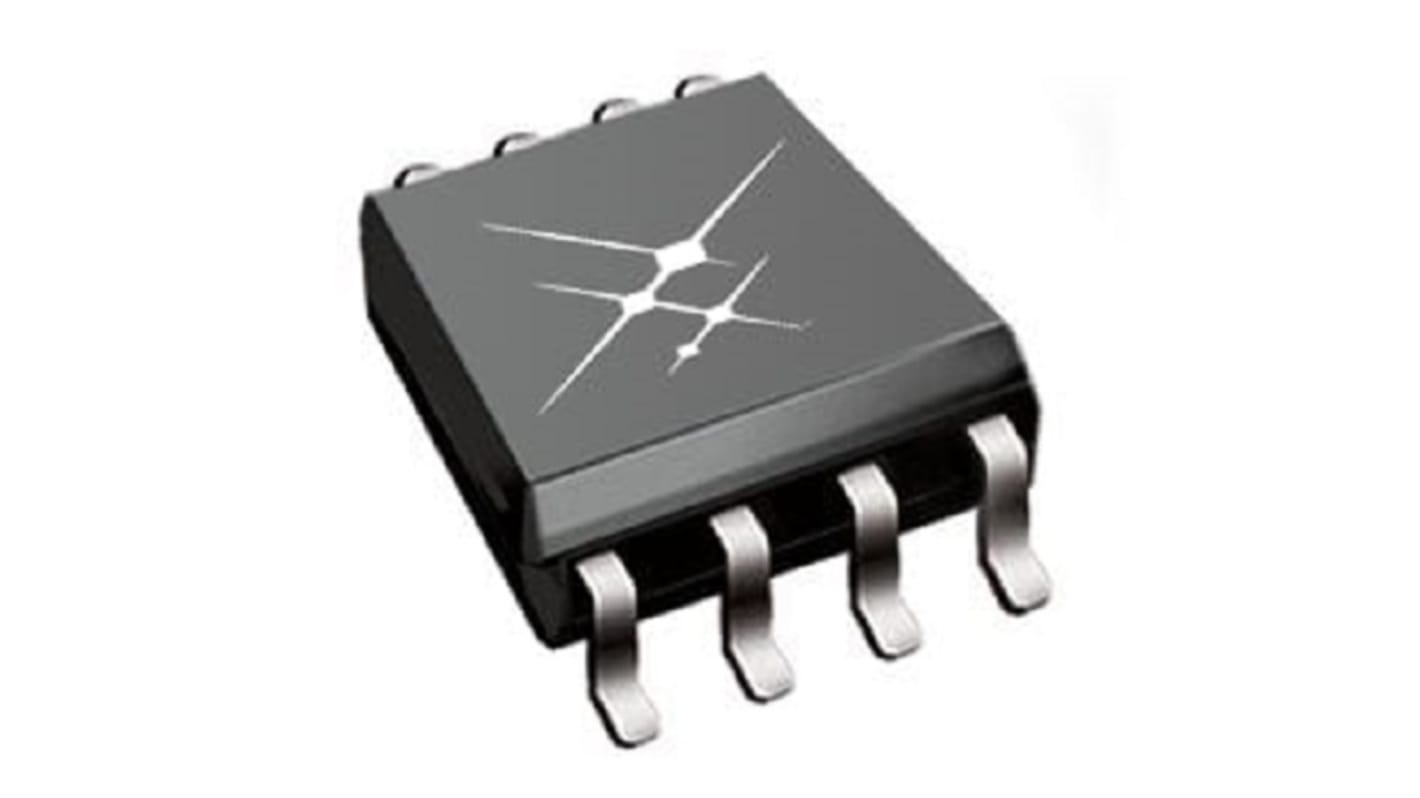

Skyworks Solutions Inc SI8261BCC-C-IS 1, 4 A, 6.5 → 30V 8-Pin, SOIC-8

View all Gate Drivers

Subtotal (1 tube of 96 units)*

£122.592

(exc. VAT)

£147.072

(inc. VAT)

Add to Basket
Select or type quantity
Being discontinued
  • Final 864 unit(s), ready to ship
Units
Per unit
Per Tube*
96 +£1.277£122.59

*price indicative

RS Stock No.:
273-1988
Mfr. Part No.:
SI8261BCC-C-IS
Brand:
Skyworks Solutions Inc
Find similar products by selecting one or more attributes.
Select all

Brand

Skyworks Solutions Inc

Logic Type

Analogue

Output Current

4 A

Supply Voltage

6.5 → 30V

Pin Count

8

Package Type

SOIC-8

Fall Time

20ns

Number of Drivers

1

COO (Country of Origin):
TH
The Skyworks Solutions Inc Si826x isolators are pin compatible, drop in upgrades for popular opto coupled gate drivers, such as 0.6 A ACPL-0302/3020, 2.5 A HCPL-3120/ACPL-3130, HCNW3120/3130,and similar opto-drivers. The devices are ideal for driving power MOSFETs and IGBTs used in a wide variety of inverter and motor control applications. The Si826x isolated gate drivers utilize skyworks solutions proprietary silicon isolation technology, supporting up to 5.0 kVRMS withstand voltage per UL1577 and 10kV surge protection per VDE 0884-10. This technology enables higher performance, reduced variation with temperature and age, tighter part to part matching and superior common mode rejection compared to opto coupled gate drivers.

Low power diode emulator simplifies design in process
0.6 and 4.0 Amp peak output drive current
Rail to rail output voltage
60 ns propagation delay independent of input drive current
