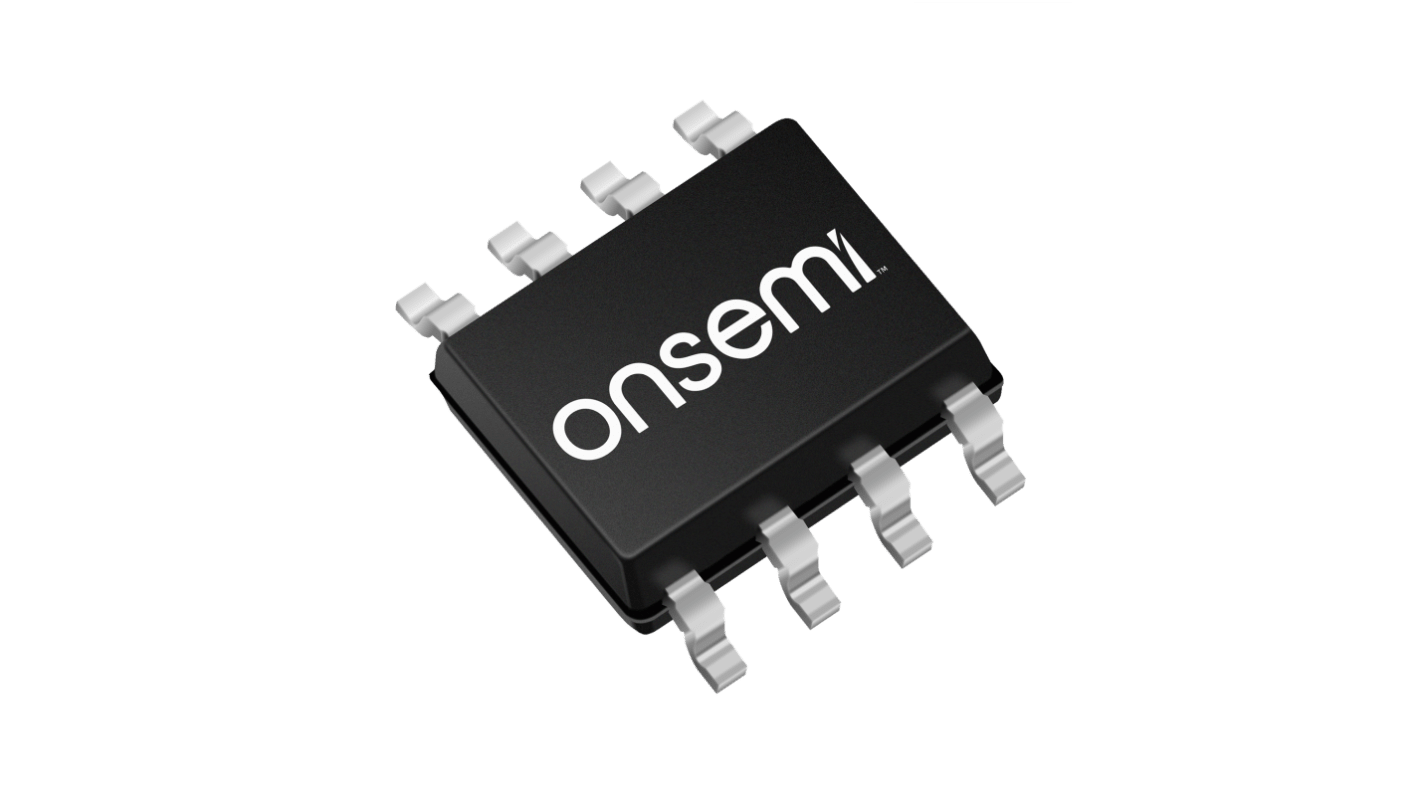

onsemi NCV51152BADR2G, Isolated Gate Driver 1, 9 A 8-Pin 20 V, SOIC-8
- RS Stock No.:
- 277-026
- Mfr. Part No.:
- NCV51152BADR2G
- Brand:
- onsemi
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 5 units)*
£8.67
(exc. VAT)
£10.405
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 21 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £1.734 | £8.67 |
| 50 - 95 | £1.648 | £8.24 |
| 100 - 495 | £1.526 | £7.63 |
| 500 - 995 | £1.404 | £7.02 |
| 1000 + | £1.354 | £6.77 |
*price indicative
- RS Stock No.:
- 277-026
- Mfr. Part No.:
- NCV51152BADR2G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Gate Driver Module | |
| Output Current | 9A | |
| Pin Count | 8 | |
| Fall Time | 8.3ns | |
| Package Type | SOIC-8 | |
| Driver Type | Isolated Gate Driver | |
| Rise Time | 22ns | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 20V | |
| Number of Drivers | 1 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Series | NCV51152 | |
| Height | 1.75mm | |
| Length | 5mm | |
| Standards/Approvals | SGS FIMO IEC 62386-1 (Planned), AEC-Q100-011, UL1577 (Planned), CQC (Planned) | |
| Mount Type | Surface | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Gate Driver Module | ||
Output Current 9A | ||
Pin Count 8 | ||
Fall Time 8.3ns | ||
Package Type SOIC-8 | ||
Driver Type Isolated Gate Driver | ||
Rise Time 22ns | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 20V | ||
Number of Drivers 1 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Series NCV51152 | ||
Height 1.75mm | ||
Length 5mm | ||
Standards/Approvals SGS FIMO IEC 62386-1 (Planned), AEC-Q100-011, UL1577 (Planned), CQC (Planned) | ||
Mount Type Surface | ||
Automotive Standard AEC-Q100 | ||
- COO (Country of Origin):
- PH
The ON Semiconductor Isolated Single Channel Gate Driver is designed for fast switching of power MOSFETs and SiC MOSFET power switches. It features short and matched propagation delays, comes in a compact 4 mm SOIC-8 package, and supports an isolation voltage of up to 3.75 kVRMS. Additionally, it includes essential protection functions such as independent under-voltage lockout for both sides of the driver.
Propagation delay typical 36 ns with 5 ns max delay matching
AEC Q100 qualified for automotive application requirements
Negative 5 V handling capability on input pins
