Hutchinson Le Joint Français Rubber : 7DF2075 & washer : Stainless Steel Bonded Seals O-Ring, 16.7mm Bore, 24mm Outer

RS Stock No.:: 251-3147
Mfr. Part No.:: 205518
Brand:: Hutchinson Le Joint Français

Hutchinson Le Joint Français Rubber : 7DF2075 & washer : Stainless Steel Bonded Seals O-Ring, 16.7mm Bore, 24mm Outer

30 In stock for delivery within 1 working days

Not available for guaranteed pre 9am/10am delivery

Price 1 Bag of 10

£29.02

(exc. VAT)

£34.82

(inc. VAT)

Bag(s)	Per Bag	Per unit*
1 +	£29.02	£2.902

*price indicative

RS Stock No.:: 251-3147
Mfr. Part No.:: 205518
Brand:: Hutchinson Le Joint Français

Technical Reference

Datasheet - 205518

Legislation and Compliance

COO (Country of Origin):: MT

Product Details

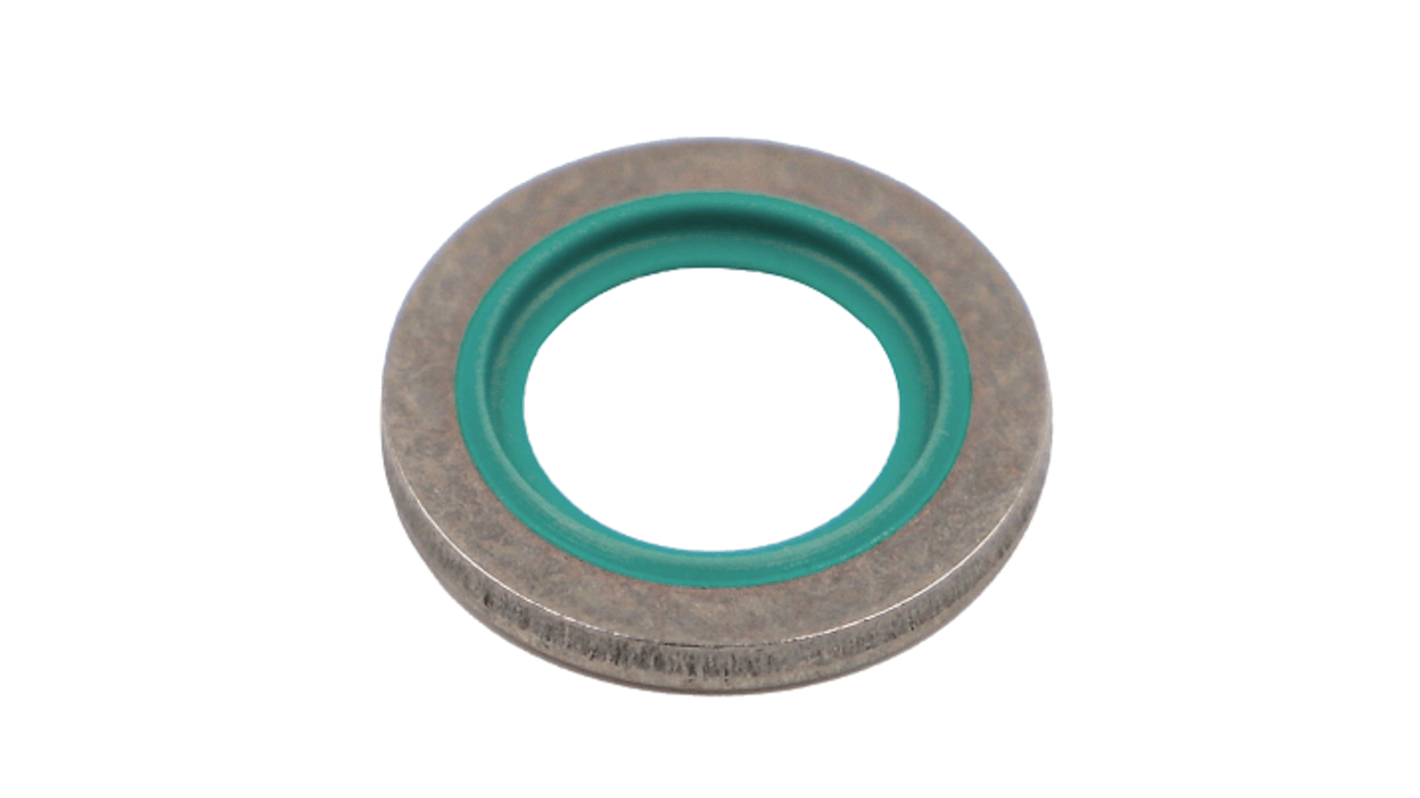

The Hutchinson Le Joint Français bonded seal consist of a metal insert with a profile of vulcanized rubber compound bonded to the inside diameter 16.70 mm, 24 mm external diameter, 1.50 mm thickness has FKM 7DF2075 rubber family and stainless steel T316 metal washer with green rubber color also suitable for sealing under the heads of bolts and screws, for pipe couplings.

Size standard B16
Operational temperature range -25 °C / 200 °C
Very good resistance - mineral oils, domestic gas, heat
Poor resistance - brake fluids, bases
Good impermeability

Specifications

Attribute	Value
Type	Bonded Seals
Material	Rubber : 7DF2075 & washer : Stainless Steel
Inside Diameter	16.7mm
Outside Diameter	24mm
Thickness	1.5mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+250°C
