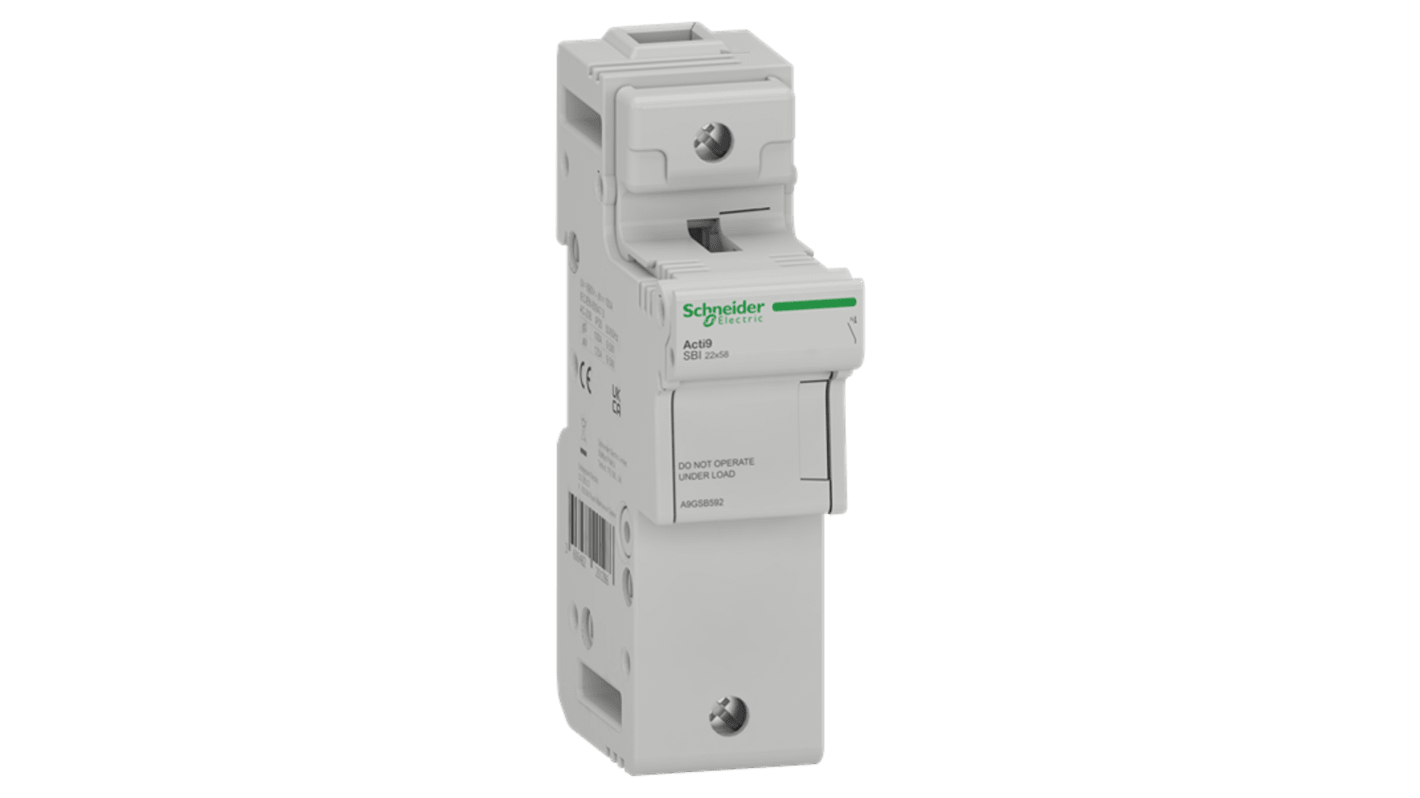

Schneider Electric Fuse Switch Disconnector, 1-Pole
- RS Stock No.:
- 428-822
- Mfr. Part No.:
- A9GSB592
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£86.19
(exc. VAT)
£103.43
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 05 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £86.19 |
*price indicative
- RS Stock No.:
- 428-822
- Mfr. Part No.:
- A9GSB592
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Fuse Switch Disconnector | |
| Number of Poles | 1 | |
| Enclosed/Not Enclosed | Enclosed | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw Clamp | |
| Series | Acti9 Fusible | |
| Minimum Operating Temperature | -20°C | |
| Mechanical Fuse Size | 22 x 58 mm | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CEI EN 60947-3 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Fuse Switch Disconnector | ||
Number of Poles 1 | ||
Enclosed/Not Enclosed Enclosed | ||
Mount Type DIN Rail | ||
Terminal Type Screw Clamp | ||
Series Acti9 Fusible | ||
Minimum Operating Temperature -20°C | ||
Mechanical Fuse Size 22 x 58 mm | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CEI EN 60947-3 | ||
- COO (Country of Origin):
- TN
The Schneider Electric Low voltage fuse switch disconnector brings safety and reliable solution for buildings, industry and OEM with high breaking capacity. It is a 1 neutral fuse switch disconnector, rated current up to 125 A and gG or aM fuse curve with fuse cartridge size 22 mm x 58 mm. The general purpose of the gG fuse is to provide overload and short circuit protection. The aM fuse for motorized applications provides short circuit protection. This product complies with IEC 60947-3.
RoHS compliant
Instant notification of cartridge empty with a light indicator
Quick and easy to install
Suitable for industrial applications requiring high breaking power
Suitable for both general purpose fuses and motor protection fuses
