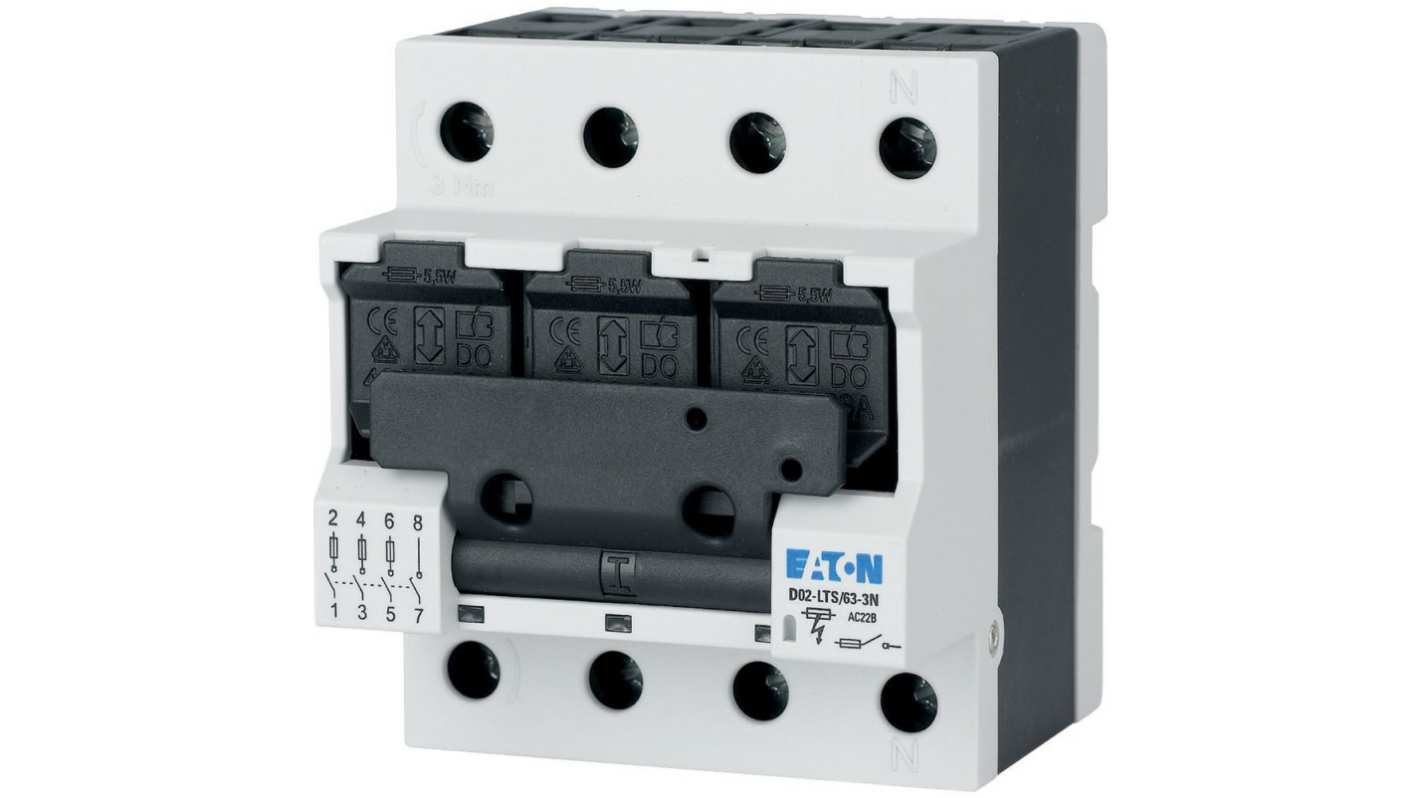

Eaton Switch Disconnector, 3-Pole, 63 A, 63A
- RS Stock No.:
- 229-943
- Mfr. Part No.:
- 114321 D02-LTS/63-3N
- Brand:
- Eaton
Subtotal (1 unit)*
£152.43
(exc. VAT)
£182.92
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £152.43 |
*price indicative
- RS Stock No.:
- 229-943
- Mfr. Part No.:
- 114321 D02-LTS/63-3N
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 3 | |
| Product Type | Switch Disconnector | |
| Enclosed/Not Enclosed | Not Enclosed | |
| Mount Type | Top Hat Rail | |
| Switching Voltage | 400V | |
| Switching Current | 63A | |
| Terminal Type | Lift | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -25°C | |
| Fuse Current | 63A | |
| Maximum Operating Temperature | 60°C | |
| Auxiliary Contacts Available | No | |
| Standards/Approvals | IEC/EN 60715 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 3 | ||
Product Type Switch Disconnector | ||
Enclosed/Not Enclosed Not Enclosed | ||
Mount Type Top Hat Rail | ||
Switching Voltage 400V | ||
Switching Current 63A | ||
Terminal Type Lift | ||
IP Rating IP20 | ||
Minimum Operating Temperature -25°C | ||
Fuse Current 63A | ||
Maximum Operating Temperature 60°C | ||
Auxiliary Contacts Available No | ||
Standards/Approvals IEC/EN 60715 | ||
RoHS Status: Exempt
The Eaton innovative switch-disconnector from Eaton represents the pinnacle of electrical safety and reliability. Designed for versatility, it allows for infeed from both sides and boasts a compact profile, making it an ideal choice for space-constrained environments. With an amperage rating of 63 A, it seamlessly integrates into your electrical system, providing robust protection and operational efficiency. The unit is equipped with holding springs for D01 fuse links, facilitating easy installation and maintenance. Its advanced features include a rated operational voltage of up to 400 V and a high short-circuit making capacity, ensuring dependable performance even in challenging conditions. Whether for commercial or residential applications, this product guarantees peace of mind through its compliance with RoHS regulations and various international standards.
Compact design makes it suitable for mounting in limited spaces
Robust construction with a pollution degree of 3 enhances its environmental resilience
Lift terminals facilitate quick and stable connections
Rated impulse withstand voltage of 6 kV for increased protection against surges
Creepage resistance of CTI 600 improves safety during operations
Flammability characteristics rated V0 minimise fire risks
Easy installation with quick-attachment for top-hat rail mounting
Sealable design prevents unauthorised access and tampering
Suitable for various fuse types, providing flexibility in your applications
