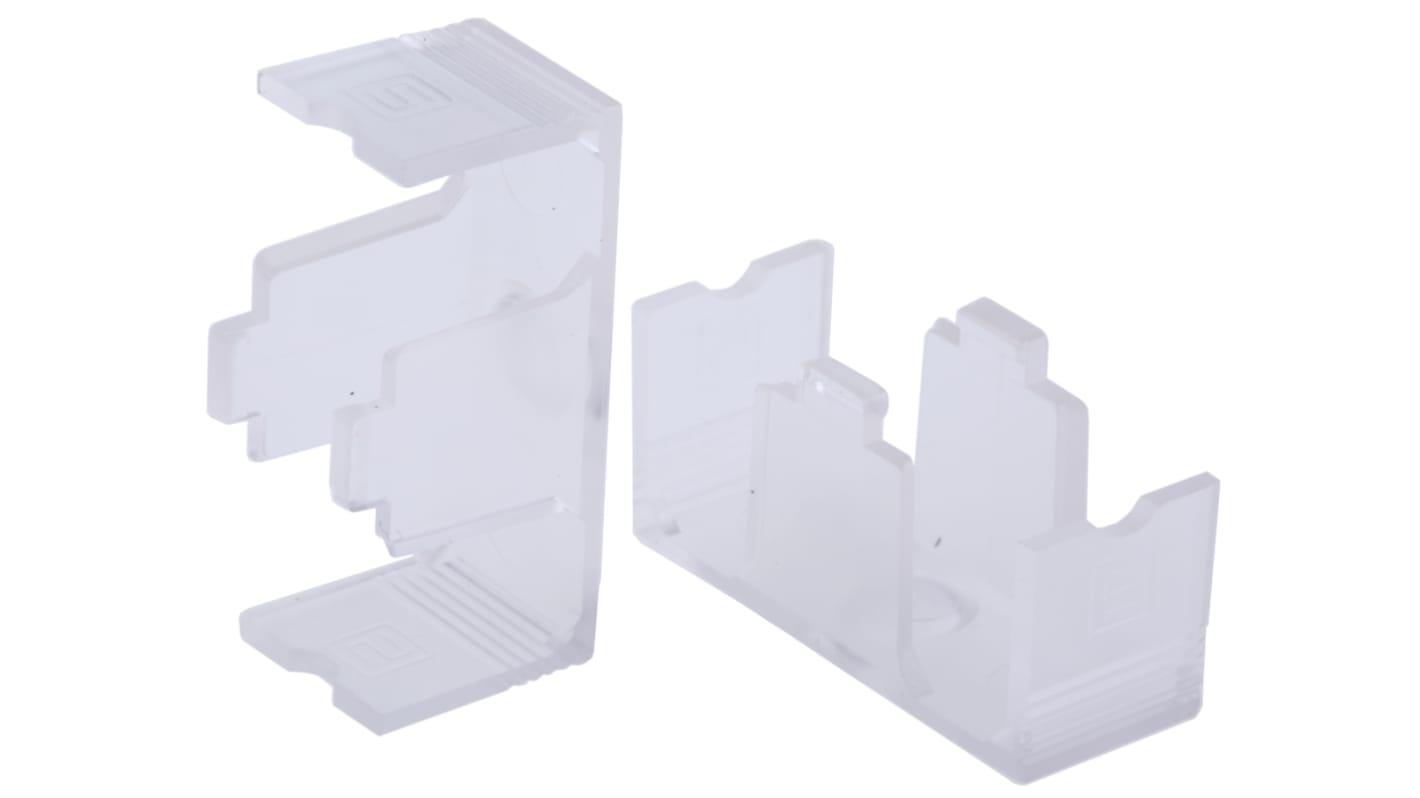

Schurter OGN Series PCB Mount Fuse Holder Cover for 5 x 20mm Fuse, IP00
- RS Stock No.:
- 176-9069
- Mfr. Part No.:
- 0853.0551
- Brand:
- Schurter
Bulk discount available
Subtotal (1 pack of 10 units)*
£5.22
(exc. VAT)
£6.26
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 320 unit(s) ready to ship
- Plus 770 unit(s) ready to ship from another location
- Plus 260 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 140 | £0.522 | £5.22 |
| 150 - 490 | £0.502 | £5.02 |
| 500 - 990 | £0.484 | £4.84 |
| 1000 - 2490 | £0.467 | £4.67 |
| 2500 + | £0.446 | £4.46 |
*price indicative
- RS Stock No.:
- 176-9069
- Mfr. Part No.:
- 0853.0551
- Brand:
- Schurter
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schurter | |
| Series | OGN | |
| Fuse Holder Type | PCB Mount | |
| Fuse Size | 5 x 20mm | |
| Width | 15mm | |
| Length | 41mm | |
| Height | 18.5mm | |
| International Protection Rating | IP00 | |
| Dimensions | 41 x 15 x 18.5mm | |
Select all | ||
|---|---|---|
Brand Schurter | ||
Series OGN | ||
Fuse Holder Type PCB Mount | ||
Fuse Size 5 x 20mm | ||
Width 15mm | ||
Length 41mm | ||
Height 18.5mm | ||
International Protection Rating IP00 | ||
Dimensions 41 x 15 x 18.5mm | ||
- COO (Country of Origin):
- CH
Fuse-holders
Schurter fuse holders are ideal for use in both industrial and household applications where the product will be unattended for periods of time. Used in conjunction with Schurter fuses they offer first rate protection. Schurter fuse holders are subjected to glow wire testing to ensure that they are safe to withstand high temperatures.
5 x 20 mm. sets of fuse-holders.
Suitable for mounting on PCBs.
Covers available separately.
Suitable for mounting on PCBs.
Covers available separately.
Standards
ASE, VDE, SEMKO, UL, CSA
Schurter Fuse Cover
The Schurter fuse cover is a casing that surrounds electrical fuses in order to provide insulation and protection against water or contamination. It is a fuse block for 5x20mm fuses. It has an electric rating of 250V and 10A.
Features and Benefits
• Covers available separately
• Operating temperature ranges between -40°C and 85°C
• Schurter fuse holders are subjected to glow wire testing to ensure that they are safe to withstand high temperatures
• Suitable for mounting on PCBs
• Thermoplastic polyamide use as cover material
• Used in conjunction with Schurter fuses they offer first rate protection
• Operating temperature ranges between -40°C and 85°C
• Schurter fuse holders are subjected to glow wire testing to ensure that they are safe to withstand high temperatures
• Suitable for mounting on PCBs
• Thermoplastic polyamide use as cover material
• Used in conjunction with Schurter fuses they offer first rate protection
Applications
• Use in industrial environments
• Household applications
• Household applications
Certifications
• ASE
• VDE
• SEMKO
• UL listed
• CSA
• IP00 rated
• IEC 60335-1
• IEC/UL 60950
• CSA C22.2 no. 4248.1
• UL 4248-1 listed
• IEC 60127-6
• VDE
• SEMKO
• UL listed
• CSA
• IP00 rated
• IEC 60335-1
• IEC/UL 60950
• CSA C22.2 no. 4248.1
• UL 4248-1 listed
• IEC 60127-6
All fuses have Thermoplaste Polyamide bodies
