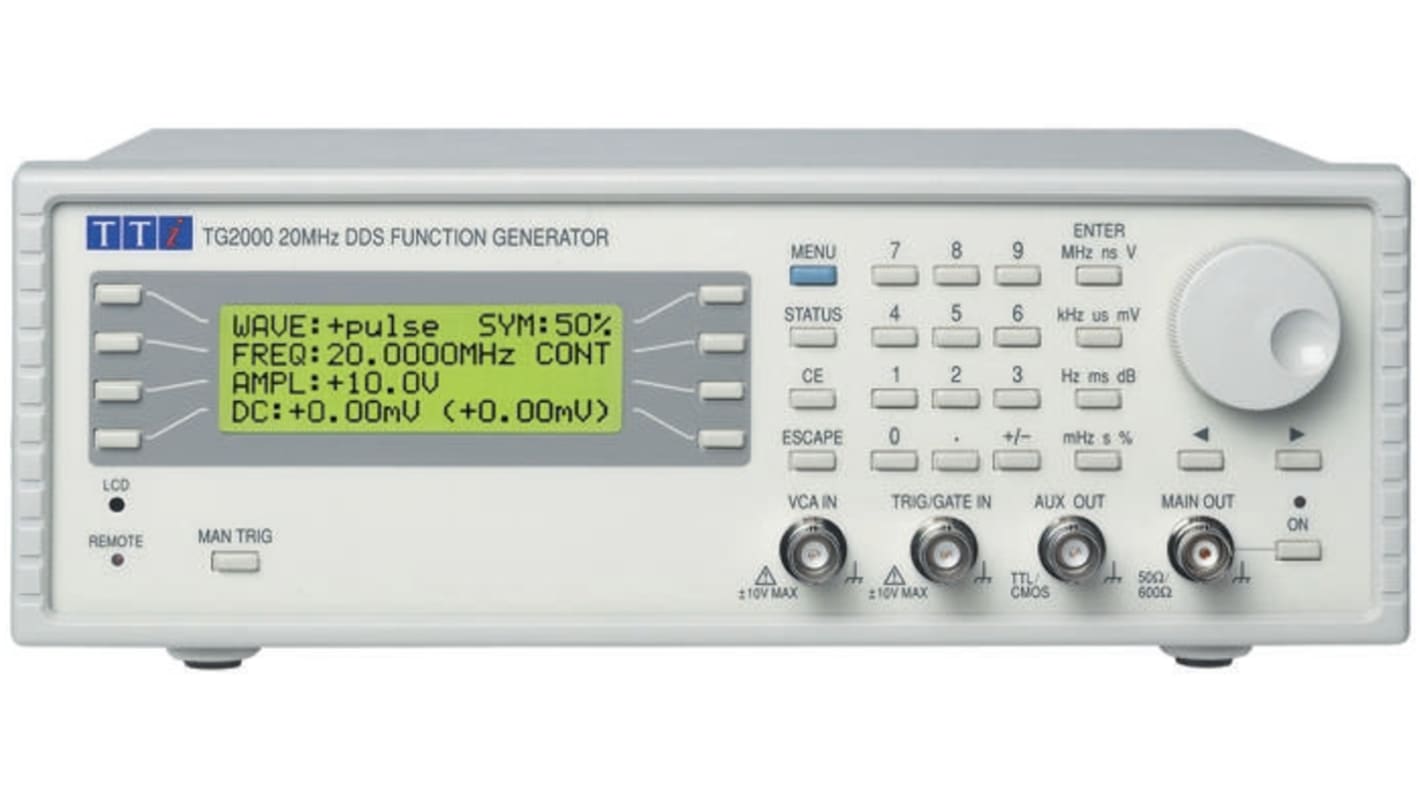

Aim-TTi TG 2000 Function Generator, 1mHz Min, 20MHz Max, FM Modulation, Variable Sweep - With RS Calibration
- RS Stock No.:
- 507-7213
- Mfr. Part No.:
- TG2000
- Brand:
- Aim-TTi
Subtotal (1 unit)*
£809.03
(exc. VAT)
£970.84
(inc. VAT)
FREE delivery for orders over £50.00
- 3 unit(s) shipping from 24 October 2025
- Plus 2 unit(s) shipping from 21 November 2025
Units | Per unit |
---|---|
1 + | £809.03 |
*price indicative
- RS Stock No.:
- 507-7213
- Mfr. Part No.:
- TG2000
- Brand:
- Aim-TTi
Select all | Attribute | Value |
---|---|---|
Brand | Aim-TTi | |
Maximum Frequency Range Sinewave | 20MHz | |
Calibrated | RSCAL | |
Maximum Frequency Range Square Pulse and Arbitrary Waveform | 20MHz | |
Series | TG2000 | |
Output Impedance | 50 Ω, 600 Ω | |
Minimum Frequency Range Sinewave | 1mHz | |
Variable Sweep | Yes | |
Minimum Frequency Range Square Pulse and Arbitrary Waveform | 1 mHz | |
FM Modulation | Yes | |
Time Base Accuracy | ±10ppm | |
Digital Frequency | Yes | |
Maximum Frequency Range Triangle/Saw | 1MHz | |
Minimum Frequency Range Triangle/Saw | 1mHz | |
Internal Linear and Log Sweep | Yes | |
Model Number | TG 2000 | |
Dimensions | 235 x 260 x 88mm | |
Output Amplitude | 20V Pk-Pk | |
Input Impedance | 10 kΩ | |
Maximum Operating Temperature | +40°C | |
Length | 235mm | |
Plug Type | Type C - European Plug, Type G - British 3-pin | |
Frequency Range Square Pulse and Arbitrary Waveform | 1 mHz → 20 MHz | |
Height | 88mm | |
Interface Type | RS232, USB | |
Minimum Operating Temperature | +5°C | |
Internal and External Amplitude Modulation | Yes | |
Digital Amplitude and Offset | Yes | |
Weight | 2kg | |
Width | 260mm | |
Select all | ||
---|---|---|
Brand Aim-TTi | ||
Maximum Frequency Range Sinewave 20MHz | ||
Calibrated RSCAL | ||
Maximum Frequency Range Square Pulse and Arbitrary Waveform 20MHz | ||
Series TG2000 | ||
Output Impedance 50 Ω, 600 Ω | ||
Minimum Frequency Range Sinewave 1mHz | ||
Variable Sweep Yes | ||
Minimum Frequency Range Square Pulse and Arbitrary Waveform 1 mHz | ||
FM Modulation Yes | ||
Time Base Accuracy ±10ppm | ||
Digital Frequency Yes | ||
Maximum Frequency Range Triangle/Saw 1MHz | ||
Minimum Frequency Range Triangle/Saw 1mHz | ||
Internal Linear and Log Sweep Yes | ||
Model Number TG 2000 | ||
Dimensions 235 x 260 x 88mm | ||
Output Amplitude 20V Pk-Pk | ||
Input Impedance 10 kΩ | ||
Maximum Operating Temperature +40°C | ||
Length 235mm | ||
Plug Type Type C - European Plug, Type G - British 3-pin | ||
Frequency Range Square Pulse and Arbitrary Waveform 1 mHz → 20 MHz | ||
Height 88mm | ||
Interface Type RS232, USB | ||
Minimum Operating Temperature +5°C | ||
Internal and External Amplitude Modulation Yes | ||
Digital Amplitude and Offset Yes | ||
Weight 2kg | ||
Width 260mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
Aim-TTi TG1000 & TG2000 DDS Function Generators, 10MHz & 20MHz
1ppm stability and better than 10ppm absolute accuracy for one year
Sine, square, triangle, positive pulse and negative pulse waveforms
Internal sweep, linear or logarithmic, phase continuous, 0.1Hz to 20MHz
Modulations modes of sweep, gated, AM, FSK and tone switching - built-in trigger generator
5mV to 20V pk-pk output from 50Ω or 600Ω; plus multi-function auxiliary output
Storage for up to nine complete instrument set-ups in non-volatile memory
