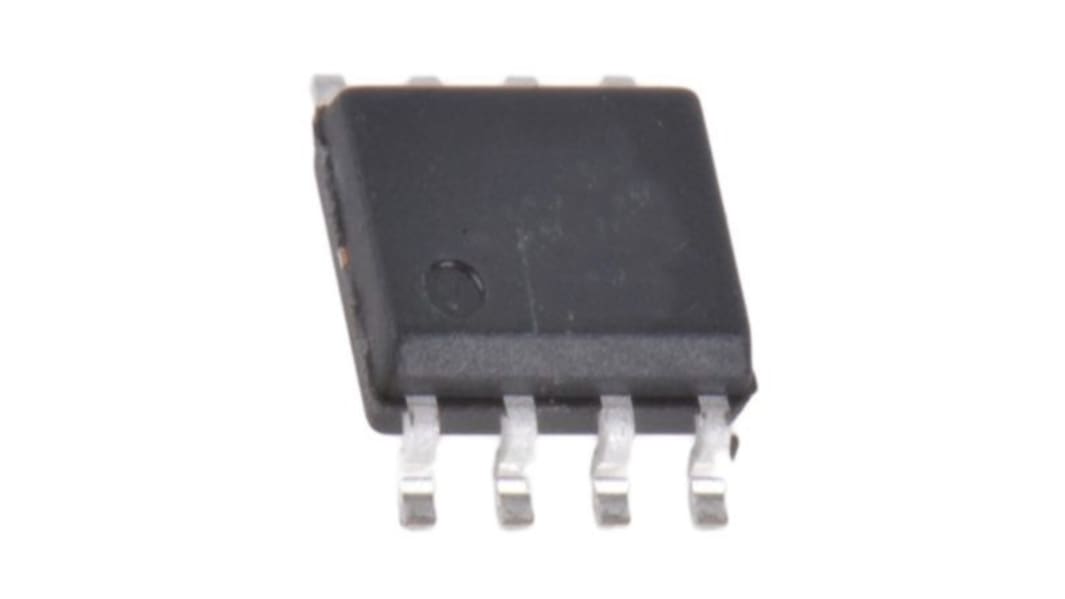

Infineon 256 kB Serial-SPI Serial (SPI) F-RAM 8-Pin, FM25V02A-G

View all FRAM Memory
Bulk discount available

Subtotal (1 tube of 97 units)*

£408.37

(exc. VAT)

£489.85

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 873 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
97 - 97£4.21£408.37
194 +£3.751£363.85

*price indicative

RS Stock No.:
273-7388
Mfr. Part No.:
FM25V02A-G
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Memory Size

256kB

Product Type

Serial (SPI) F-RAM

Interface Type

Serial-SPI

Data Bus Width

8bit

Maximum Clock Frequency

40MHz

Pin Count

8

Standards/Approvals

RoHS

Maximum Operating Temperature

85°C

Number of Words

32k

Minimum Operating Temperature

-40°C

Number of Bits per Word

8

Automotive Standard

No

Minimum Supply Voltage

2V

Maximum Supply Voltage

3.6V

The Infineon FRAM is a 256 Kbit non volatile memory employing an Advanced ferroelectric process. A ferroelectric random access memory or FRAM is non volatile and performs reads and writes similar to a RAM. It provides reliable data retention for 151 years while eliminating the complexities, overhead, and system level reliability problems caused by serial flash, EEPROM and other non volatile memories. Unlike serial flash and EEPROM, it performs write operations at bus speed. No write delays are incurred. Data is written to the memory array immediately after each byte is successfully transferred to the device. The next bus cycle can commence without the need for data polling. In addition, the product offers substantial write endurance compared with other non volatile memories.

RoHS compliant

Low power consumption

Very fast serial peripheral Interface

Sophisticated write protection scheme

High endurance 100 trillion read and write

Advanced high reliability ferroelectric process
