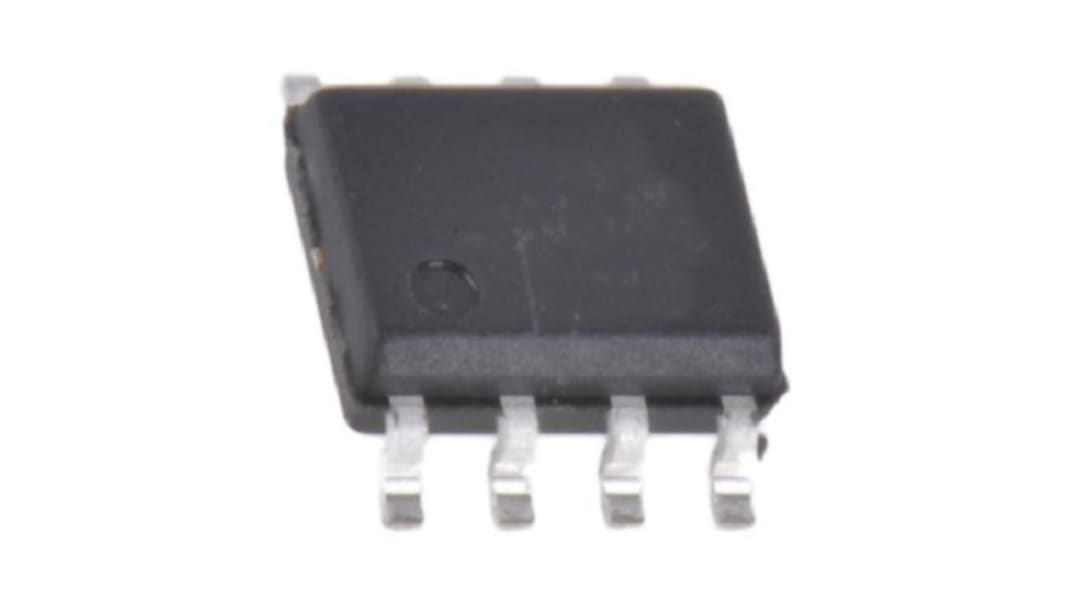

Infineon 256 kB Serial-SPI FRAM 8-Pin SOIC, FM25W256-GTR
- RS Stock No.:
- 273-5332
- Mfr. Part No.:
- FM25W256-GTR
- Brand:
- Infineon
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 273-5332
- Mfr. Part No.:
- FM25W256-GTR
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | FRAM | |
| Memory Size | 256kB | |
| Organisation | 32k x 8 bit | |
| Interface Type | Serial-SPI | |
| Data Bus Width | 8bit | |
| Maximum Clock Frequency | 20MHz | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Standards/Approvals | RoHS | |
| Maximum Operating Temperature | 85°C | |
| Maximum Supply Voltage | 5.5V | |
| Number of Words | 32k | |
| Minimum Operating Temperature | -40°C | |
| Minimum Supply Voltage | 2.7V | |
| Number of Bits per Word | 8 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type FRAM | ||
Memory Size 256kB | ||
Organisation 32k x 8 bit | ||
Interface Type Serial-SPI | ||
Data Bus Width 8bit | ||
Maximum Clock Frequency 20MHz | ||
Package Type SOIC | ||
Pin Count 8 | ||
Standards/Approvals RoHS | ||
Maximum Operating Temperature 85°C | ||
Maximum Supply Voltage 5.5V | ||
Number of Words 32k | ||
Minimum Operating Temperature -40°C | ||
Minimum Supply Voltage 2.7V | ||
Number of Bits per Word 8 | ||
Automotive Standard No | ||
The Infineon FRAM Memory is a 256 Kbit non volatile memory employing an advanced ferroelectric process. A ferroelectric random access memory or FRAM is non volatile and performs reads and writes similar to a RAM. It provides reliable data retention for 151 years while eliminating the complexities, overhead, and system level reliability problems caused by serial flash, EEPROM, and other non volatile memories.
RoHS compliant
Low power consumption
Supports SPI mode 0 and mode 3
Very fast serial peripheral interface
Sophisticated write protection scheme
