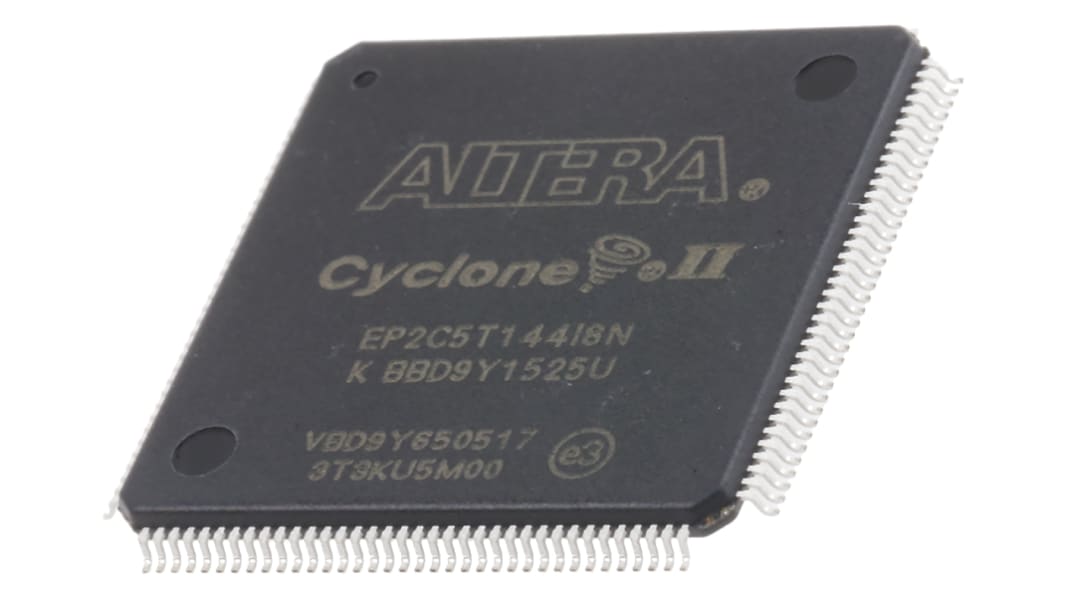

Altera FPGA Cyclone II 4608 Cells, 4608 Blocks, 144-Pin TQFP
- RS Stock No.:
- 629-6190
- Mfr. Part No.:
- EP2C5T144I8N
- Brand:
- Altera
Subtotal (1 unit)*
£28.62
(exc. VAT)
£34.34
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £28.62 |
*price indicative
- RS Stock No.:
- 629-6190
- Mfr. Part No.:
- EP2C5T144I8N
- Brand:
- Altera
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Altera | |
| Series | Cyclone II | |
| Product Type | FPGA | |
| Number of Logic Cells | 4608 | |
| Number of Logic Units | 4608 | |
| Number of Multipliers | 13 | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 1.15V | |
| Package Type | TQFP | |
| Pin Count | 144 | |
| Maximum Supply Voltage | 1.25V | |
| Number of I/Os | 89 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | No | |
| Height | 1.4mm | |
| Length | 20mm | |
| Width | 20 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Altera | ||
Series Cyclone II | ||
Product Type FPGA | ||
Number of Logic Cells 4608 | ||
Number of Logic Units 4608 | ||
Number of Multipliers 13 | ||
Mount Type Surface | ||
Minimum Supply Voltage 1.15V | ||
Package Type TQFP | ||
Pin Count 144 | ||
Maximum Supply Voltage 1.25V | ||
Number of I/Os 89 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals No | ||
Height 1.4mm | ||
Length 20mm | ||
Width 20 mm | ||
Automotive Standard No | ||
Cyclone FPGA, Altera
An FPGA is a semiconductor device consisting of a matrix of Configurable Logic Blocks (CLBs) connected through programmable interconnects. The user determines these interconnections by programming SRAM. A CLB can be simple (AND, OR gates, etc) or complex (a block of RAM). The FPGA allows changes to be made to a design even after the device is soldered into a PCB.
