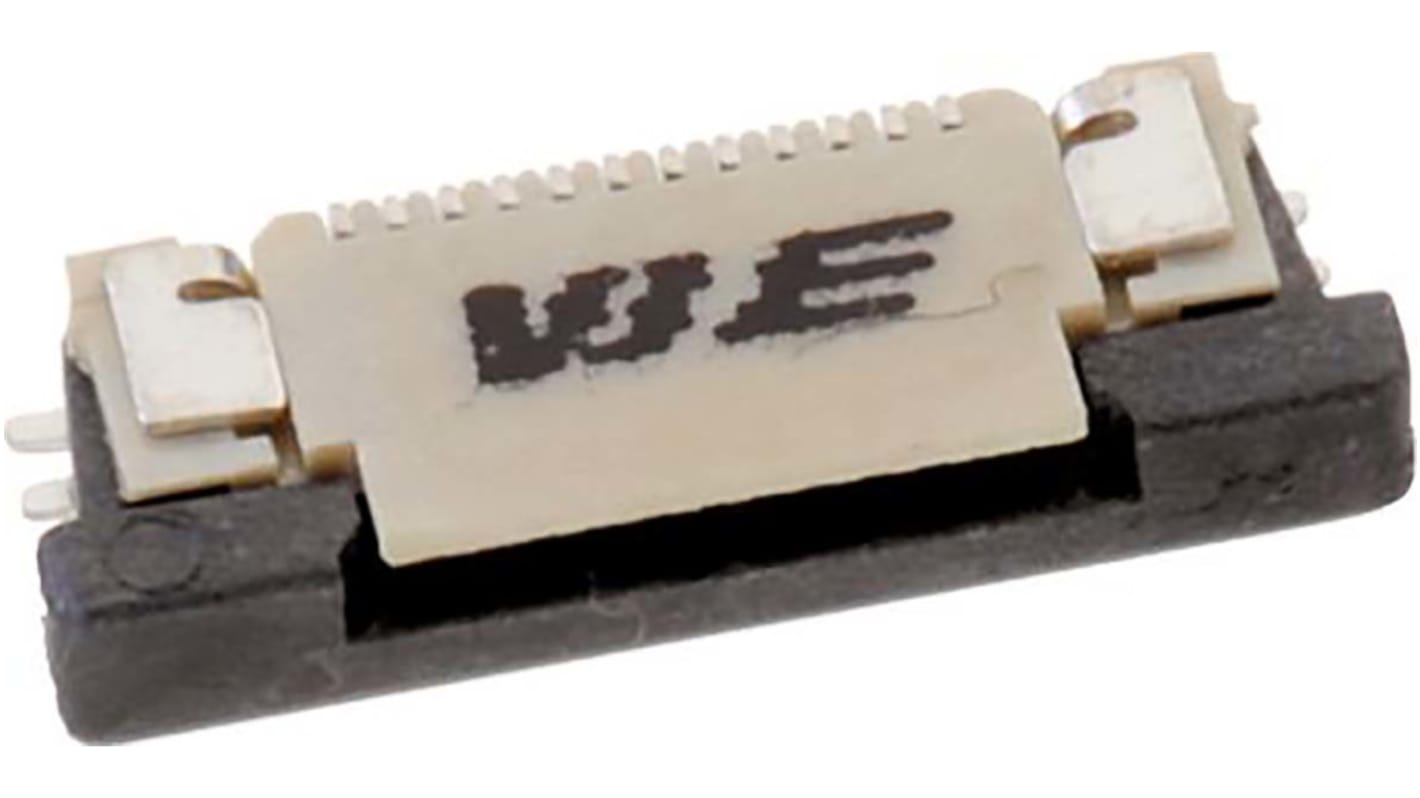

Wurth Elektronik, 686 45 Way Horizontal Male FPC Connector, Solder
- RS Stock No.:
- 205-3091
- Mfr. Part No.:
- 68714514022
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 2000 units)*
£1,766.00
(exc. VAT)
£2,120.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | £0.883 | £1,766.00 |
*price indicative
- RS Stock No.:
- 205-3091
- Mfr. Part No.:
- 68714514022
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | FPC Connector | |
| Number of Contacts | 45 | |
| Sub Type | FPC | |
| Contact Material | Phosphor Bronze | |
| Mount Type | Surface Mount | |
| Connector Gender | Male | |
| Termination Type | Solder | |
| Contact Position | Top | |
| Orientation | Horizontal | |
| Insertion Force | ZIF | |
| Locking Mechanism | Yes | |
| Voltage | 50V | |
| Series | 686 | |
| Minimum Operating Temperature | -25°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Contact Plating | Tin over Nickel | |
| Housing Material | Liquid Crystal Polymer | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type FPC Connector | ||
Number of Contacts 45 | ||
Sub Type FPC | ||
Contact Material Phosphor Bronze | ||
Mount Type Surface Mount | ||
Connector Gender Male | ||
Termination Type Solder | ||
Contact Position Top | ||
Orientation Horizontal | ||
Insertion Force ZIF | ||
Locking Mechanism Yes | ||
Voltage 50V | ||
Series 686 | ||
Minimum Operating Temperature -25°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Contact Plating Tin over Nickel | ||
Housing Material Liquid Crystal Polymer | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik WR-FPC series 0.5 mm pitch SMT FPC ZIF connectors with a top contact configuration. This FPC connector is made from LCP insulator and stamped tin over nickel plated phosphor bronze contacts.
Pins = 45
Type = horizontal
Length = 28.9mm
Working Voltage = 50VAC
