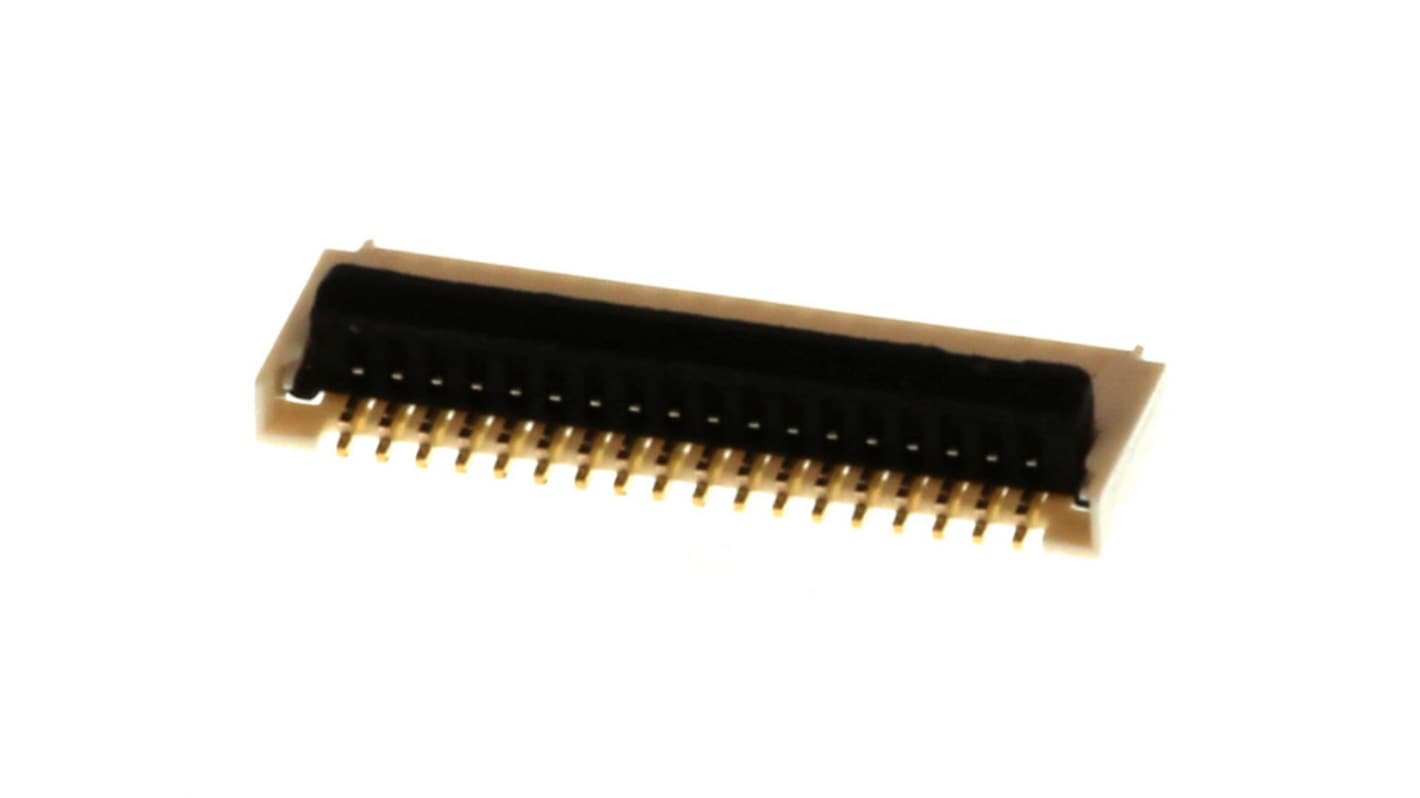

Molex, 503480-1800 0.5 mm Pitch 18 Way Right Angle FPC Connector
- RS Stock No.:
- 480-930
- Distrelec Article No.:
- 304-56-484
- Mfr. Part No.:
- 503480-1800
- Brand:
- Molex
Subtotal (1 reel of 3000 units)*
£1,651.80
(exc. VAT)
£1,982.16
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £1,651.80 | £0.551 |
*price indicative
- RS Stock No.:
- 480-930
- Distrelec Article No.:
- 304-56-484
- Mfr. Part No.:
- 503480-1800
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | FPC Connector | |
| Number of Contacts | 18 | |
| Contact Material | Phosphor Bronze | |
| Pitch | 0.5mm | |
| Current | 0.5A | |
| Mount Type | Surface Mount | |
| Contact Position | Dual | |
| Orientation | Right Angle | |
| Voltage | 5 V | |
| Minimum Operating Temperature | -40°C | |
| Series | 503480-1800 | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | UL E29179, REACH SVHC, 94V-0, EU RoHS, IEC 61249-2-21, IPC 1752A Class D, IPC 1752A Class C, IEC-62474 | |
| Contact Plating | Gold over Nickel | |
| Housing Material | Liquid Crystal Polymer | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type FPC Connector | ||
Number of Contacts 18 | ||
Contact Material Phosphor Bronze | ||
Pitch 0.5mm | ||
Current 0.5A | ||
Mount Type Surface Mount | ||
Contact Position Dual | ||
Orientation Right Angle | ||
Voltage 5 V | ||
Minimum Operating Temperature -40°C | ||
Series 503480-1800 | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals UL E29179, REACH SVHC, 94V-0, EU RoHS, IEC 61249-2-21, IPC 1752A Class D, IPC 1752A Class C, IEC-62474 | ||
Contact Plating Gold over Nickel | ||
Housing Material Liquid Crystal Polymer | ||
- COO (Country of Origin):
- KR
The TE Connectivity FFC/FPC connector represents a blend of innovative design and exceptional performance, ideal for a wide range of applications. Featuring a compact 0.50mm pitch, this right-angle connector ensures seamless integration in space-constrained environments. Its dual contact design and a durable construction make it a reliable choice for demanding electronics. The low-halogen, RoHS-compliant materials used in its production underline the commitment to environmental sustainability, while the gold over nickel plating offers superior conductivity and corrosion resistance. With an operating temperature range of -40° to +105°C, this connector is engineered to perform under various conditions, providing peace of mind for engineers and designers alike. This product stands out for its black actuator feature, enhancing usability during installation and maintenance, ensuring ease of use and longevity.
Compact design optimises space in electronic assemblies
Dual contact mechanism enhances reliability and performance
Low-halogen construction aligns with eco-friendly standards
Gold over nickel plating ensures greater conductivity and durability
Black actuator improves visibility and operational handling
Wide operating temperature range supports versatile applications
Surface mount compatibility allows for easy integration into modern PCBs
Emphasis on user-friendly installation with a back flip actuator
