TE Connectivity, FPC 1 mm Pitch 17 Way Right Angle Female FPC Connector, Surface Mount
- RS Stock No.:
- 471-044
- Distrelec Article No.:
- 304-55-039
- Mfr. Part No.:
- 1-84952-7
- Brand:
- TE Connectivity
Subtotal (1 reel of 1200 units)*
£1,318.47
(exc. VAT)
£1,582.16
(inc. VAT)
Add 1 reel to get free delivery
Temporarily out of stock
- Shipping from 26 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £1,318.47 | £1.099 |
*price indicative
- RS Stock No.:
- 471-044
- Distrelec Article No.:
- 304-55-039
- Mfr. Part No.:
- 1-84952-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | FPC Connector | |
| Number of Contacts | 17 | |
| Contact Material | Phosphor Bronze | |
| Sub Type | FPC Connector | |
| Current | 1A | |
| Pitch | 1mm | |
| Mount Type | Board | |
| Connector Gender | Female | |
| Contact Position | Bottom | |
| Termination Type | Surface Mount | |
| Orientation | Right Angle | |
| Insertion Force | ZIF | |
| Voltage | 200 V | |
| Series | FPC | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Contact Gender | Female | |
| Number of Rows | 1 | |
| Standards/Approvals | EU RoHS 2011/65/EU, EU ELV 2000/53/EC, China RoHS 2 MIIT Order No 32, 2016 | |
| Contact Plating | Tin Plated | |
| Housing Material | Liquid Crystal Polymer | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type FPC Connector | ||
Number of Contacts 17 | ||
Contact Material Phosphor Bronze | ||
Sub Type FPC Connector | ||
Current 1A | ||
Pitch 1mm | ||
Mount Type Board | ||
Connector Gender Female | ||
Contact Position Bottom | ||
Termination Type Surface Mount | ||
Orientation Right Angle | ||
Insertion Force ZIF | ||
Voltage 200 V | ||
Series FPC | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Contact Gender Female | ||
Number of Rows 1 | ||
Standards/Approvals EU RoHS 2011/65/EU, EU ELV 2000/53/EC, China RoHS 2 MIIT Order No 32, 2016 | ||
Contact Plating Tin Plated | ||
Housing Material Liquid Crystal Polymer | ||
- COO (Country of Origin):
- CN

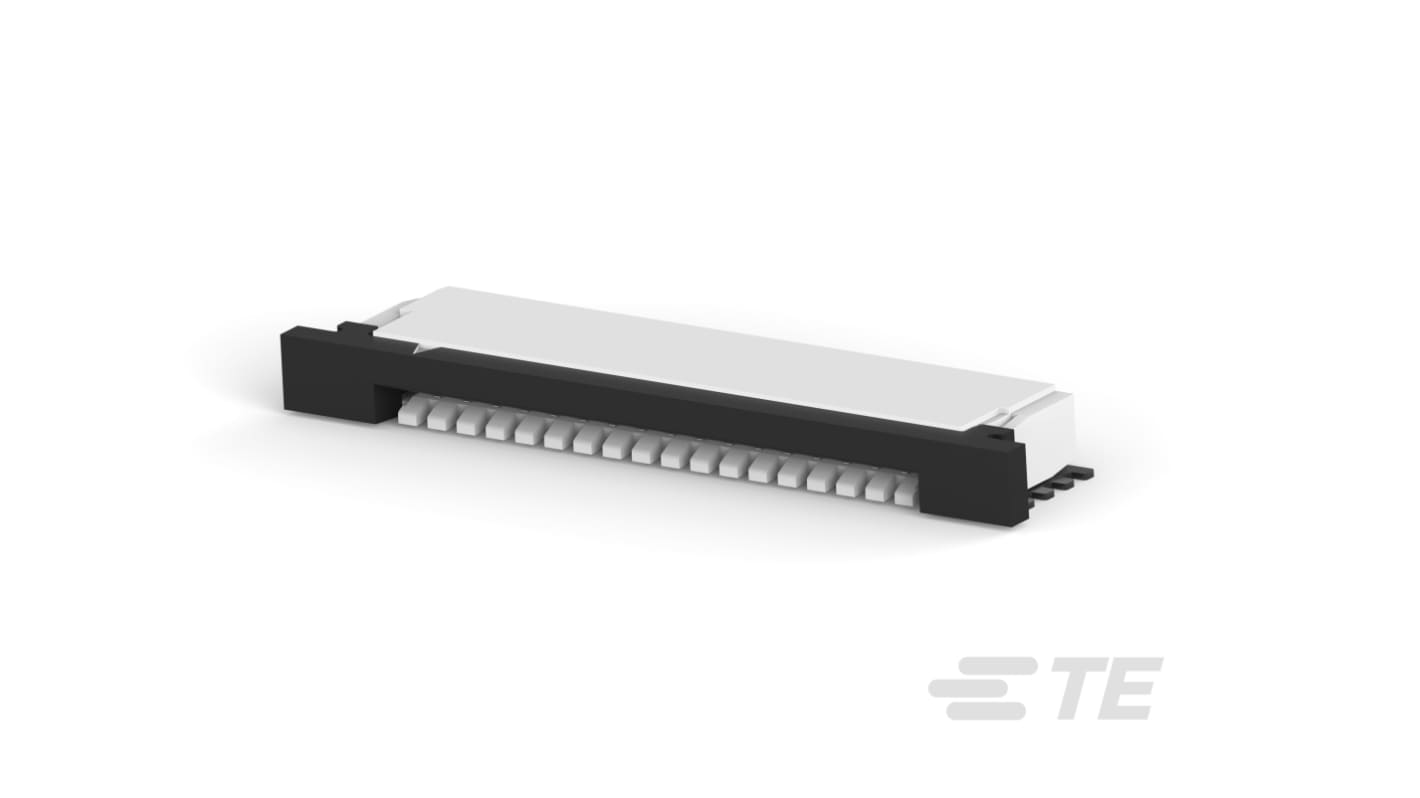

The TE Connectivity 1 mm [.039 in] Centerline, Right Angle, Surface Mount Stuffer Actuator Connector is designed for versatile and efficient applications in flexible printed circuit (FPC) connections. This connector boasts a robust 17-position design, facilitating reliable and precise connectivity in compact spaces. Engineered with a Zero Insertion Force (ZIF) mating retention type, it ensures seamless connections while minimising wear on components during insertion and removal. The natural colour LCP housing provides excellent insulation and durability, making it ideal for demanding environments. Suitable for surface mount assembly, this connector offers a streamlined approach to FPC connection, optimising both space and performance in your electronic designs.
The connector assembly is designed for flexible printed circuits, enhancing installation flexibility
Right angle PCB mount orientation facilitates easy integration into tight spaces
Utilises a single beam contact shape for improved signal integrity
This connector features a bright plating finish for enhanced conductivity and reliability
Operating temperature range of -40 to 85 °C ensures suitability for diverse applications
Packaged in bulk quantities, facilitating convenient high-volume applications
Reflow solder capable up to 260°C for compatibility with advanced manufacturing processes
The inline contact layout supports efficient space utilisation on PCBs
