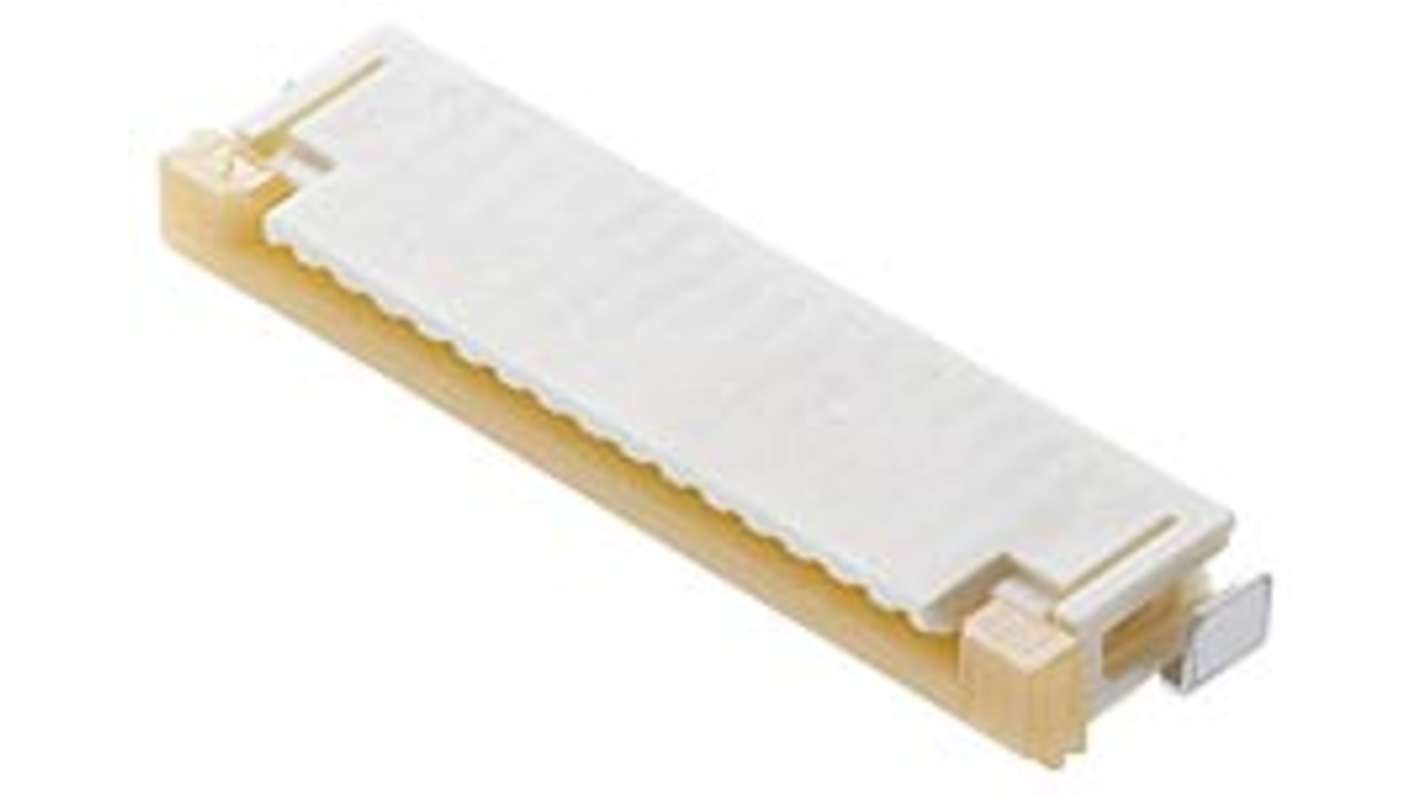

Molex, 52207-3485 1 mm Pitch 34 Way Right Angle FPC Connector, Top Entry
- RS Stock No.:
- 469-928
- Distrelec Article No.:
- 304-62-551
- Mfr. Part No.:
- 52207-3485
- Brand:
- Molex
Subtotal (1 reel of 1000 units)*
£1,555.45
(exc. VAT)
£1,866.54
(inc. VAT)
Add 1 reel to get free delivery
Temporarily out of stock
- Shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £1,555.45 | £1.555 |
*price indicative
- RS Stock No.:
- 469-928
- Distrelec Article No.:
- 304-62-551
- Mfr. Part No.:
- 52207-3485
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | FPC Connector | |
| Number of Contacts | 34 | |
| Contact Material | Phosphor Bronze | |
| Current | 1A | |
| Pitch | 1mm | |
| Mount Type | Surface Mount | |
| Contact Position | Top | |
| Termination Type | Top Entry | |
| Orientation | Right Angle | |
| Locking Mechanism | Yes | |
| Voltage | 125 V | |
| Series | 52207-3485 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | 94V-0, CSA LR19980, UL E29179 | |
| Contact Plating | Tin Bismuth | |
| Housing Material | Nylon | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type FPC Connector | ||
Number of Contacts 34 | ||
Contact Material Phosphor Bronze | ||
Current 1A | ||
Pitch 1mm | ||
Mount Type Surface Mount | ||
Contact Position Top | ||
Termination Type Top Entry | ||
Orientation Right Angle | ||
Locking Mechanism Yes | ||
Voltage 125 V | ||
Series 52207-3485 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals 94V-0, CSA LR19980, UL E29179 | ||
Contact Plating Tin Bismuth | ||
Housing Material Nylon | ||
- COO (Country of Origin):
- MY
The TE Connectivity Easy-on FFC/FPC Connector stands out for its exceptional design and reliability. Ideal for various applications, this connector features a 1.00mm pitch and is structured to enhance connectivity in confined spaces. With its right-angle configuration and top contact orientation, this product ensures seamless integration into your devices. Designed specifically for 34 circuits, it boasts a durable slider actuator that promises enhanced performance. Additionally, the combination of tin-bismuth plating and natural resin contributes to its robust construction, making it suitable for long-term use in diverse environments. This connector also showcases compliance with various industry standards, thereby ensuring its adaptability and safety in electronic assemblies.
Robust construction designed to ensure longevity in demanding environments
Right-angle orientation facilitates installation in tight spaces
Slider actuator enhances user experience during mating and unmating
Versatile application across a broad range of electronic devices
Natural resin material contributes to reduced environmental impact
Compatible with low-halogen requirements for safer usage
Compliant with industry standards for worry-free integration
Smooth operation ensures reliable performance across multiple mating cycles
