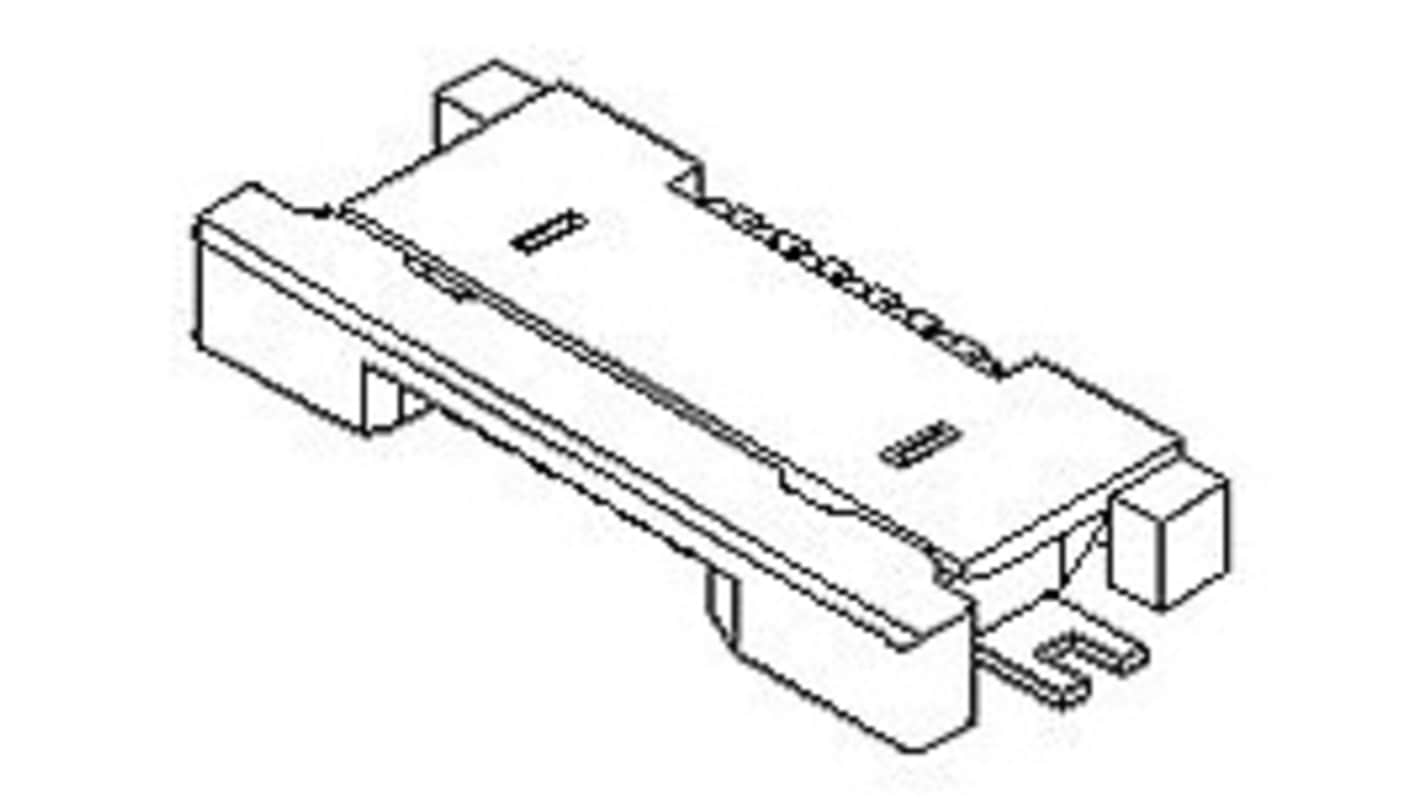

Molex, 54548-0533 0.5 mm Pitch Right Angle FPC Connector, Bottom
- RS Stock No.:
- 469-773
- Distrelec Article No.:
- 304-57-467
- Mfr. Part No.:
- 54548-0533
- Brand:
- Molex
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 469-773
- Distrelec Article No.:
- 304-57-467
- Mfr. Part No.:
- 54548-0533
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | FPC Connector | |
| Contact Material | Phosphor Bronze | |
| Current | 0.5A | |
| Pitch | 0.5mm | |
| Mount Type | Surface Mount | |
| Termination Type | Bottom | |
| Orientation | Right Angle | |
| Voltage | 50 V | |
| Minimum Operating Temperature | -40°C | |
| Series | 54548-0533 | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type FPC Connector | ||
Contact Material Phosphor Bronze | ||
Current 0.5A | ||
Pitch 0.5mm | ||
Mount Type Surface Mount | ||
Termination Type Bottom | ||
Orientation Right Angle | ||
Voltage 50 V | ||
Minimum Operating Temperature -40°C | ||
Series 54548-0533 | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- CN
The TE Connectivity FPC Connector with 0.50mm pitch features an Easy-On design for quick and reliable cable insertion. Its right-angle, surface mount layout supports compact and efficient PCB assembly. Ideal for high-density electronic applications. Suitable for use in consumer devices, medical equipment, and industrial systems.
EU RoHS
REACH SVHC
Low-Halogen
