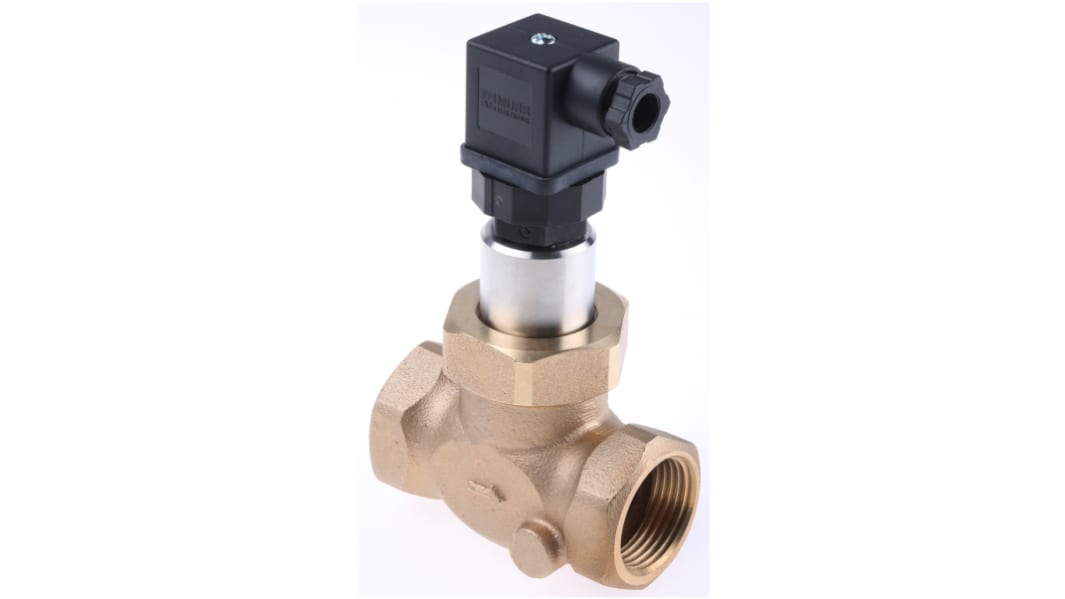

Gems Sensors FS-200E-A Series Shuttle Flow Sensor for Liquid, 19 L/min Min, 57 L/min Max
- RS Stock No.:
- 395-7218
- Distrelec Article No.:
- 303-99-434
- Mfr. Part No.:
- 020-3490
- Brand:
- Gems Sensors
Subtotal (1 unit)*
£326.07
(exc. VAT)
£391.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 30 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £326.07 |
*price indicative
- RS Stock No.:
- 395-7218
- Distrelec Article No.:
- 303-99-434
- Mfr. Part No.:
- 020-3490
- Brand:
- Gems Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Gems Sensors | |
| Media Monitored | Liquid | |
| Device Type | Shuttle | |
| Minimum Flow Rate | 19 L/min | |
| Maximum Flow Rate | 57 L/min | |
| Supply Voltage | 250 V | |
| Pipe Diameter Range | 1 in | |
| Connection Type | 1 BSP | |
| Maximum Pressure | 27bar | |
| Material | Bronze | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +80°C | |
| Series | FS-200E-A | |
Select all | ||
|---|---|---|
Brand Gems Sensors | ||
Media Monitored Liquid | ||
Device Type Shuttle | ||
Minimum Flow Rate 19 L/min | ||
Maximum Flow Rate 57 L/min | ||
Supply Voltage 250 V | ||
Pipe Diameter Range 1 in | ||
Connection Type 1 BSP | ||
Maximum Pressure 27bar | ||
Material Bronze | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
Series FS-200E-A | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US
Gems Sensors Flow Switch
The Gems Sensors FS-200E-A series flow switch has a liquid flow rate of 19L/min to 57L/min. This flow switch is a highly efficient device for accurate flow detection. It has 1% repeatability and is available in European G1in port size. The durable construction delivers long life repeatability in either water or oil. On the other hand, the design of large flow paths keeps the pressure drop low. Thus, it is ideal for detection of flow in high volume lubrication, cooling, or process applications.
Features and Benefits
Pipe diameter range is 1in
Connection type is 1 BSP
Plug type connector
Primary construction material is bronze
Setting type: adjustable
Operating pressure is 27bar
Pressure drop is 0.2bar
SPDT switching function
Connection type is 1 BSP
Connection type is 1 BSP
Plug type connector
Primary construction material is bronze
Setting type: adjustable
Operating pressure is 27bar
Pressure drop is 0.2bar
SPDT switching function
Connection type is 1 BSP
Applications
Protect bearings or gears: oil separators, fuel systems, pumps, compressors and presses
Electronics or machinery: heat exchangers, semiconductor manufacturing equipment, induction furnaces and radio transmitters
Process systems: water filtration and reverse osmosis, chlorinates, de-icers, sterilisers and evaporators
Electronics or machinery: heat exchangers, semiconductor manufacturing equipment, induction furnaces and radio transmitters
Process systems: water filtration and reverse osmosis, chlorinates, de-icers, sterilisers and evaporators
Certifications
IP65 rated
