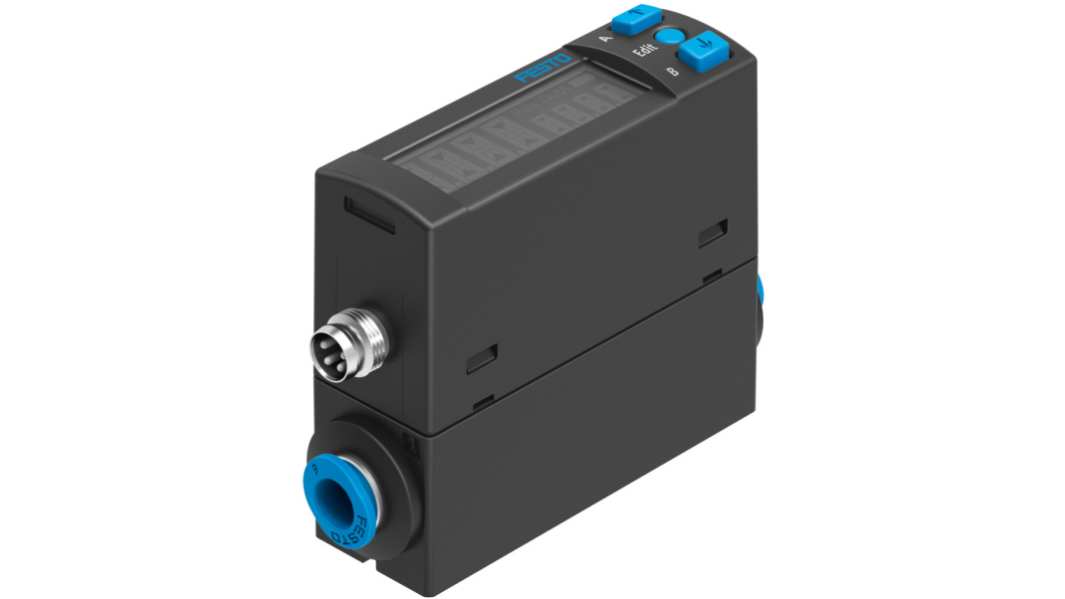

Festo SFAH Series Flow Sensor for Air, 0.1 l/min Min, 5 L/min Max

RS Stock No.:: 289-1462
Mfr. Part No.:: SFAH-5U-Q6S-PNLK-PNVBA-M8
Brand:: Festo

Festo SFAH Series Flow Sensor for Air, 0.1 l/min Min, 5 L/min Max

1 / 2

Subtotal (1 unit)**

£300.02

(exc. VAT)

£360.02

(inc. VAT)

3 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Check stock levels

Not available for guaranteed pre 9am/10am delivery

Units	Per unit
1 +	£300.02

**price indicative

RS Stock No.:: 289-1462
Mfr. Part No.:: SFAH-5U-Q6S-PNLK-PNVBA-M8
Brand:: Festo

Festo SFAH Series Flow Sensor, 0.1 L/min Minimum Flow Rate, 26V DC Maximum Supply Voltage - SFAH-5U-Q6S-PNLK-PNVBA-M8, Numeric Part Number: 8058468

This Flow Sensor is an essential tool for accurate air flow measurement across various settings. Designed specifically for monitoring air, this compact flow measurement device operates within a flow rate range of 0.1 to 5 L/min. With a robust PA-reinforced construction, it ensures optimal performance even under challenging conditions, achieving a maximum pressure tolerance of 10 bar.

Features & Benefits

• Capable of measuring flow rates from 0.1 to 5 L/min
• Operates effectively at supply voltages between 22 and 26 V DC
• Designed for durability with PA-reinforced material
• Suitable for media temperatures ranging from 0°C to +50°C
• Features a plug connection for simple integration
• Ensures reliability with maximum operating pressure of 10 bar

Applications

• Used for precise air flow monitoring in industrial automation
• Suitable for integration in pneumatic systems for efficiency
• Employed in HVAC systems for effective air management
• Utilised in laboratories for consistent flow measurement

What voltage requirements does this device have?

It requires a supply voltage ranging from 22 to 26V DC, ensuring compatibility with standard power supplies in automation systems.

How does this flow sensor handle temperature variations?

The sensor operates effectively in temperatures from 0°C up to +50°C, making it suitable for a variety of environments without compromising performance.

What is the significance of using a PA-reinforced design?

The PA-reinforced material provides enhanced durability and resistance to mechanical stress, ensuring long-term reliability in demanding applications.

Can this sensor be easily integrated into existing systems?

Yes, it features a plug connection type that allows for straightforward installation and integration into various pneumatic and electronic systems.

What is the maximum pressure tolerance for this flow sensor?

This flow sensor can withstand a maximum operating pressure of 10 bar, making it suitable for applications that require robust performance in high-pressure scenarios.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Media Monitored	Air
	Device Type	Flow Sensor
	Minimum Flow Rate	0.1 l/min
	Maximum Flow Rate	5 L/min
	Supply Voltage	22 → 26 V dc
	Connection Type	Plug
	Maximum Pressure	10bar
	Material	PA-Reinforced
	Minimum Media Temperature	0 °C
	Maximum Media Temperature	+50°C
	Minimum Operating Temperature	0°C
	Series	SFAH
	Maximum Operating Temperature	+50°C
	Current Rating	100 mA

	Select all
	Brand Festo
	Media Monitored Air
	Device Type Flow Sensor
	Minimum Flow Rate 0.1 l/min
	Maximum Flow Rate 5 L/min
	Supply Voltage 22 → 26 V dc
	Connection Type Plug
	Maximum Pressure 10bar
	Material PA-Reinforced
	Minimum Media Temperature 0 °C
	Maximum Media Temperature +50°C
	Minimum Operating Temperature 0°C
	Series SFAH
	Maximum Operating Temperature +50°C
	Current Rating 100 mA
