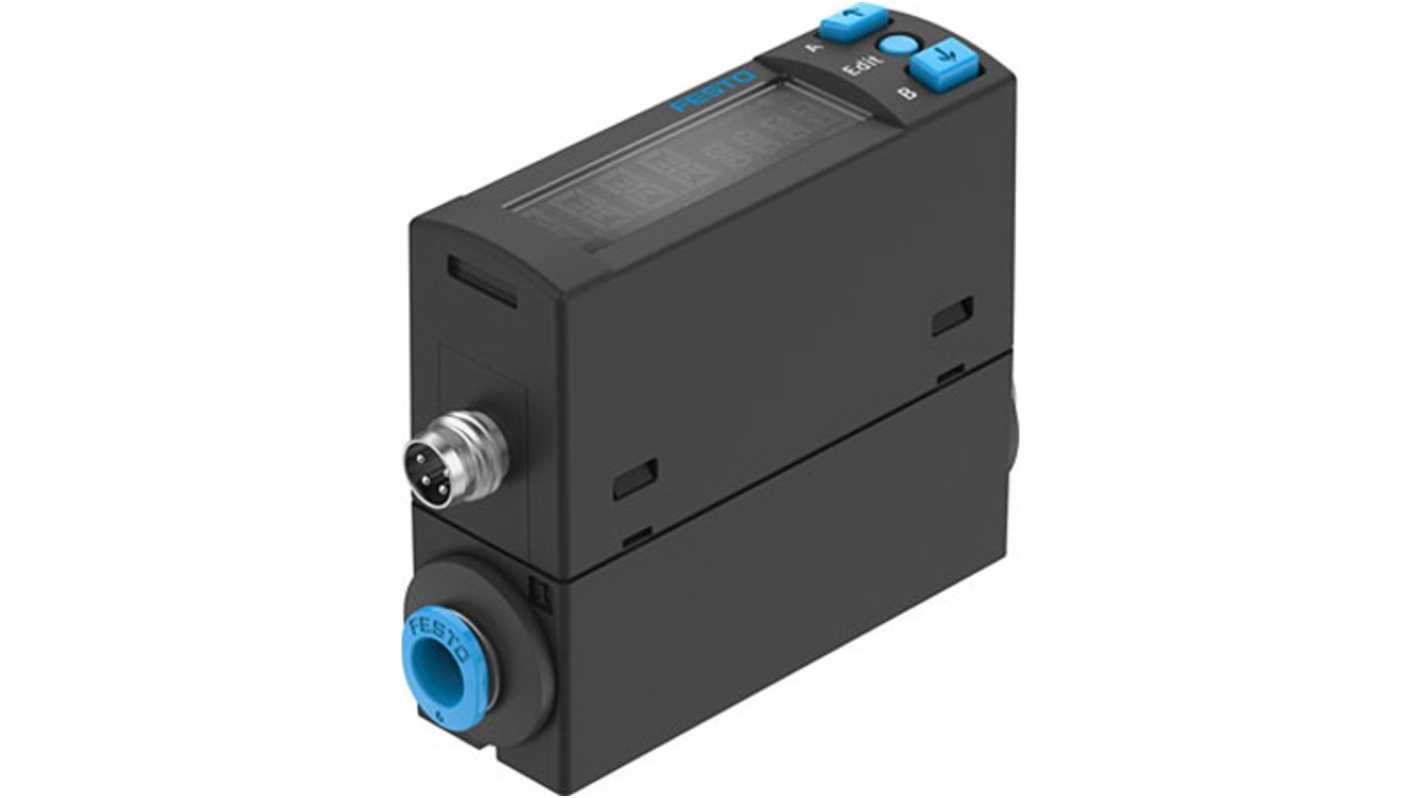

Festo SFAH Series Flow Rate Monitoring Sensor Flow Sensor for Nitrogen, Compressed Air, 0.2L/min Min, 10L/min Max
- RS Stock No.:
- 343-116
- Mfr. Part No.:
- SFAH-10B-Q6S-PNLK-PNVBA-M8
- Brand:
- Festo
Subtotal (1 unit)*
£313.95
(exc. VAT)
£376.74
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £313.95 |
*price indicative
- RS Stock No.:
- 343-116
- Mfr. Part No.:
- SFAH-10B-Q6S-PNLK-PNVBA-M8
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Media Monitored | Nitrogen, Compressed Air | |
| Product Type | Flow Sensor | |
| Device Type | Flow Rate Monitoring Sensor | |
| Minimum Flow Rate | 0.2L/min | |
| Maximum Flow Rate | 10L/min | |
| Housing Material | Polyamide Reinforced | |
| Connection Type | Plug | |
| Maximum Pressure | 10bar | |
| Minimum Media Temperature | 0°C | |
| Maximum Supply Voltage | 22V | |
| IP Rating | IP40 | |
| Maximum Media Temperature | 50°C | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 50°C | |
| Series | SFAH | |
| Standards/Approvals | RoHS, c UL us listed (OL), CE, RCM | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Media Monitored Nitrogen, Compressed Air | ||
Product Type Flow Sensor | ||
Device Type Flow Rate Monitoring Sensor | ||
Minimum Flow Rate 0.2L/min | ||
Maximum Flow Rate 10L/min | ||
Housing Material Polyamide Reinforced | ||
Connection Type Plug | ||
Maximum Pressure 10bar | ||
Minimum Media Temperature 0°C | ||
Maximum Supply Voltage 22V | ||
IP Rating IP40 | ||
Maximum Media Temperature 50°C | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 50°C | ||
Series SFAH | ||
Standards/Approvals RoHS, c UL us listed (OL), CE, RCM | ||
- COO (Country of Origin):
- BG
The Festo Flow sensor redefines precision and versatility in fluid measurement. Designed for a wide array of applications, it effortlessly assesses mass and volumetric flow rates in both argon and nitrogen, making it an indispensable tool in industrial environments. The thermal measuring principle ensures accuracy across a substantial range, while features like bidirectional flow tracking and adjustable switching functions enhance its adaptability. Crafted from durable, RoHS-compliant materials, this sensor prioritises both performance and environmental responsibility, ensuring compliance with global directives. The intelligent integration with IO-Link technology provides advanced diagnostics and monitoring options, streamlining operation and maintenance. Users can expect a seamless experience with its easy installation and user-friendly interface, empowering them to make informed decisions swiftly and efficiently.
Bidirectional flow measurement enhances operational flexibility
IO Link integration enables real time diagnostics and configuration
Robust construction ensures long lasting performance in diverse conditions
User friendly illuminated LCD display simplifies monitoring and adjustments
Short circuit current rating and overload protection enhance safety during use
