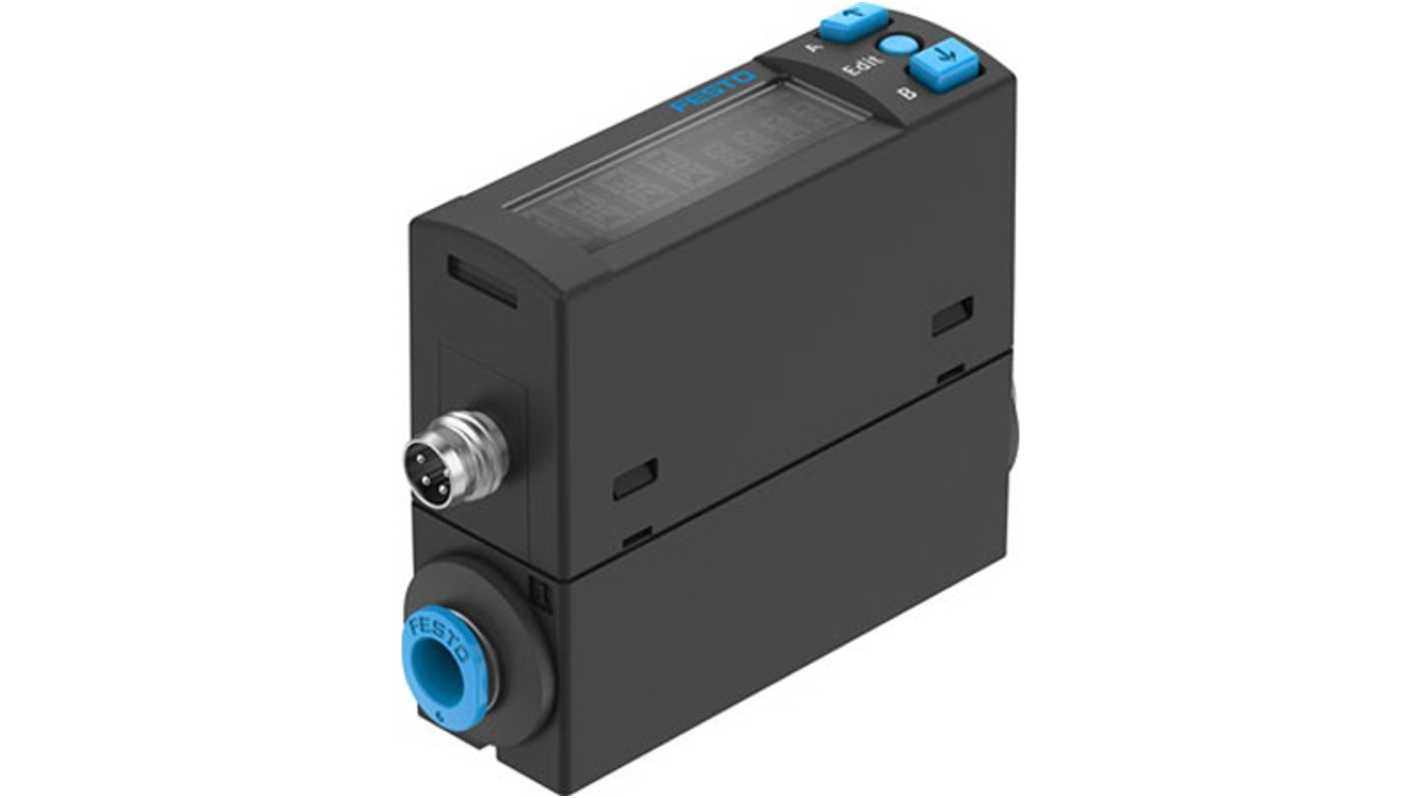

Festo SFAH Series Flow Rate Monitoring Sensor Flow Sensor for Compressed Air, Nitrogen, 0.02L/min Min, 1L/min Max
- RS Stock No.:
- 343-117
- Mfr. Part No.:
- SFAH-1U-Q6S-PNLK-PNVBA-M8
- Brand:
- Festo
Subtotal (1 unit)*
£294.43
(exc. VAT)
£353.32
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £294.43 |
*price indicative
- RS Stock No.:
- 343-117
- Mfr. Part No.:
- SFAH-1U-Q6S-PNLK-PNVBA-M8
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Flow Sensor | |
| Media Monitored | Compressed Air, Nitrogen | |
| Device Type | Flow Rate Monitoring Sensor | |
| Minimum Flow Rate | 0.02L/min | |
| Maximum Flow Rate | 1L/min | |
| Housing Material | Polyamide Reinforced | |
| Connection Type | Plug | |
| Maximum Pressure | 10bar | |
| Minimum Media Temperature | 0°C | |
| IP Rating | IP40 | |
| Maximum Supply Voltage | 22V | |
| Minimum Operating Temperature | 0°C | |
| Maximum Media Temperature | 50°C | |
| Maximum Operating Temperature | 50°C | |
| Series | SFAH | |
| Standards/Approvals | CE, RCM, c UL us listed (OL), RoHS | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Flow Sensor | ||
Media Monitored Compressed Air, Nitrogen | ||
Device Type Flow Rate Monitoring Sensor | ||
Minimum Flow Rate 0.02L/min | ||
Maximum Flow Rate 1L/min | ||
Housing Material Polyamide Reinforced | ||
Connection Type Plug | ||
Maximum Pressure 10bar | ||
Minimum Media Temperature 0°C | ||
IP Rating IP40 | ||
Maximum Supply Voltage 22V | ||
Minimum Operating Temperature 0°C | ||
Maximum Media Temperature 50°C | ||
Maximum Operating Temperature 50°C | ||
Series SFAH | ||
Standards/Approvals CE, RCM, c UL us listed (OL), RoHS | ||
- COO (Country of Origin):
- BG
The Festo Flow sensor excels in providing precise measurements of mass and volumetric flow rates, making it an essential tool for applications that demand reliability and accuracy. Designed with thermal measuring principles, it operates efficiently across a wide range of flow rates from as low as 0.02 l/min to 1 l/min, ensuring optimal performance in various conditions. With a robust operating pressure range and compatibility with multiple gases, including argon and nitrogen, it addresses diverse industrial needs. Furthermore, its compact design, user-friendly interface, and advanced IO-Link connectivity facilitate seamless integration into existing systems, providing intelligent diagnostics and extensive monitoring capabilities.
Unidirectional flow direction enhances measurement consistency
Thermal measurement method ensures high accuracy
Multi protocol support streamlines communication with other devices
User selectable switching functions allow versatility in operations
Short circuit current rating and overload protection safeguard the unit in high demand environments
Corrosion resistant housing material extends its lifespan
Illuminated multi colour LCD display improves visibility in various lighting conditions
Tamper protection via PIN code secures device settings
