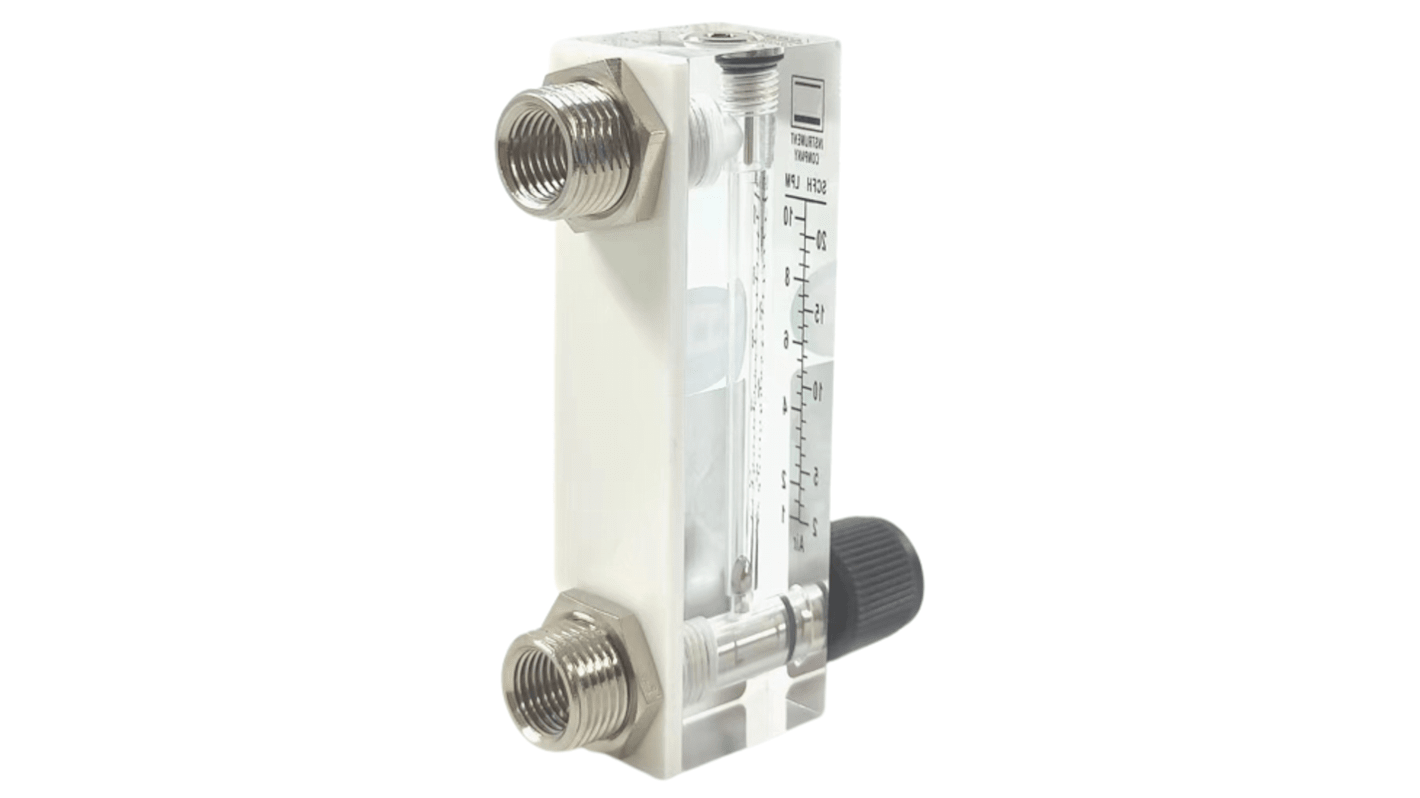

RS PRO For Air Flow Sensor for Air, 0.4 l/min Min, 5 L/min Max
- RS Stock No.:
- 257-6416
- Brand:
- RS PRO
Subtotal (1 unit)*
£73.12
(exc. VAT)
£87.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 147 unit(s) ready to ship
- Plus 39 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £73.12 |
*price indicative
- RS Stock No.:
- 257-6416
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Media Monitored | Air | |
Device Type | For Air | |
Minimum Flow Rate | 0.4 l/min | |
Maximum Flow Rate | 5 L/min | |
Connection Type | Tubing | |
Maximum Pressure | 1MPa | |
Material | PMMA | |
Series | RS PRO | |
Maximum Operating Temperature | 80°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Media Monitored Air | ||
Device Type For Air | ||
Minimum Flow Rate 0.4 l/min | ||
Maximum Flow Rate 5 L/min | ||
Connection Type Tubing | ||
Maximum Pressure 1MPa | ||
Material PMMA | ||
Series RS PRO | ||
Maximum Operating Temperature 80°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
RS PRO Panel Mount Flow Sensor / Flow Meter for Air, 0.4 L/pm to 5 L/min
From RS PRO we offer you our precision direct reading flow meter designed not only to easily read and monitor air flow but also providing accuracy. Flow sensors are also known as Flow Meters, are important to regulate and measure the flow rate and pressure of a medium, (liquid, gas, air) within your equipment and systems. The RS PRO flow meter is not only easy to read, but also lightweight, durable, and made from unbreakable PMMA Acrylic, easily installed, and maintained.
Features & Benefits
- Flow sensor, Flow meter
- Used for Air Flow
- 0.4 Lpm to 5 Lpm min
- Tube connection is PVC, ABS (Non-poisonous)
- Body material is PMMA Acrylic (Polymethyl Methacrylate)
- Maximum pressure 1 Mpa / 150 psig
- 316 Stainless steel float, rod, and Agate ball (micro flow)
- Includes a special – special Acrylic valve
- Silicone rubber and Viton sealing ring
- Maximum temperature 80°C
- Compliance and standards RoHS, REACH
- Lightweight, easy to read, accurate
Applications
- Regulate, monitor and pressure of Air flow within your operating systems
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
