ifm electronic SA4110 Series Flow Sensor Flow Sensor for Air, Glycol Solutions, Oil, Water, 98ft/s Min
- RS Stock No.:
- 596-834
- Mfr. Part No.:
- SA4110
- Brand:
- ifm electronic
Subtotal (1 unit)*
£382.87
(exc. VAT)
£459.44
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £382.87 |
*price indicative
- RS Stock No.:
- 596-834
- Mfr. Part No.:
- SA4110
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Product Type | Flow Sensor | |
| Media Monitored | Air, Glycol Solutions, Oil, Water | |
| Device Type | Flow Sensor | |
| Minimum Flow Rate | 98ft/s | |
| Housing Material | Fibreglass Reinforced PBT GF20, Fibreglass Reinforced PBT GF30, 316L Stainless Steel | |
| Connection Type | Clamp Adapter | |
| Maximum Pressure | 5MPa | |
| Minimum Media Temperature | 104°F | |
| Maximum Supply Voltage | 30V dc | |
| IP Rating | IP65, IP67 | |
| Minimum Operating Temperature | -40°F | |
| Maximum Media Temperature | 104°F | |
| Maximum Operating Temperature | 176°F | |
| Series | SA4110 | |
| Standards/Approvals | DIN EN 60947-5-9, UL, DIN EN 60068-2-6, DIN EN 60068-2-27 | |
| Current Rating | 250mA | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Product Type Flow Sensor | ||
Media Monitored Air, Glycol Solutions, Oil, Water | ||
Device Type Flow Sensor | ||
Minimum Flow Rate 98ft/s | ||
Housing Material Fibreglass Reinforced PBT GF20, Fibreglass Reinforced PBT GF30, 316L Stainless Steel | ||
Connection Type Clamp Adapter | ||
Maximum Pressure 5MPa | ||
Minimum Media Temperature 104°F | ||
Maximum Supply Voltage 30V dc | ||
IP Rating IP65, IP67 | ||
Minimum Operating Temperature -40°F | ||
Maximum Media Temperature 104°F | ||
Maximum Operating Temperature 176°F | ||
Series SA4110 | ||
Standards/Approvals DIN EN 60947-5-9, UL, DIN EN 60068-2-6, DIN EN 60068-2-27 | ||
Current Rating 250mA | ||
- COO (Country of Origin):
- DE

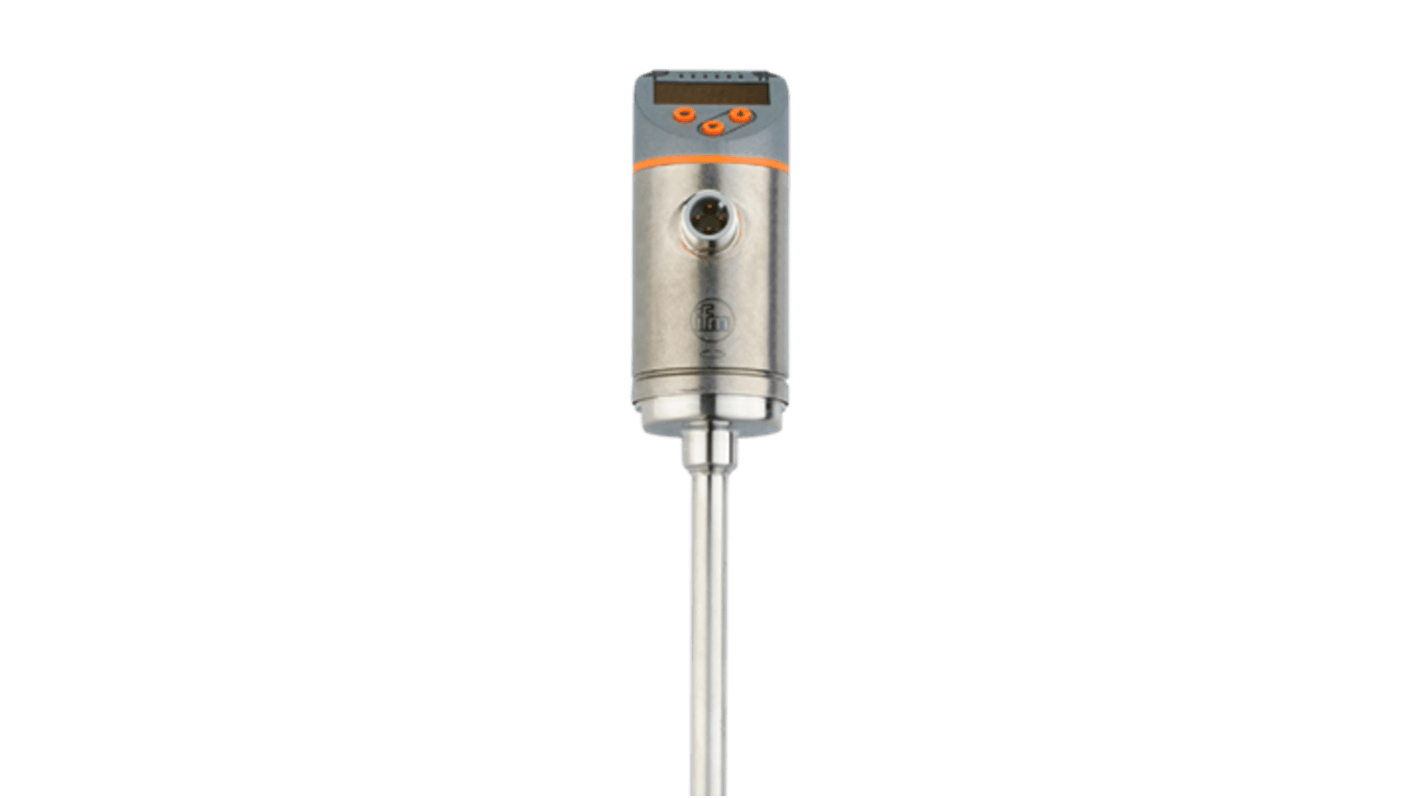

The ifm electronic flow sensor is a robust device designed for precise fluid measurement in various applications. This high-performance sensor utilizes a calorimetric measuring principle, enabling it to deliver accurate readings for low and high-viscosity media, including water, oils, and air. With a temperature range of -4 to 212°F and a pressure rating of up to 50 bar, it ensures reliability across demanding environments. Its user-friendly interface features an alphanumeric display, and the ability to rotate the upper housing enhances operational flexibility. Additionally, the sensor is equipped with multiple output options, allowing for seamless integration into existing systems, making it an ideal choice for efficient flow monitoring and control.
Designed for measuring a wide range of low to high-viscosity fluids
Calorimetric measuring principle ensures accurate and reliable flow measurement
Wide operating temperature range of -4 to 212°F accommodates various applications
Pressure rating of up to 50 bar allows versatility in industrial settings
