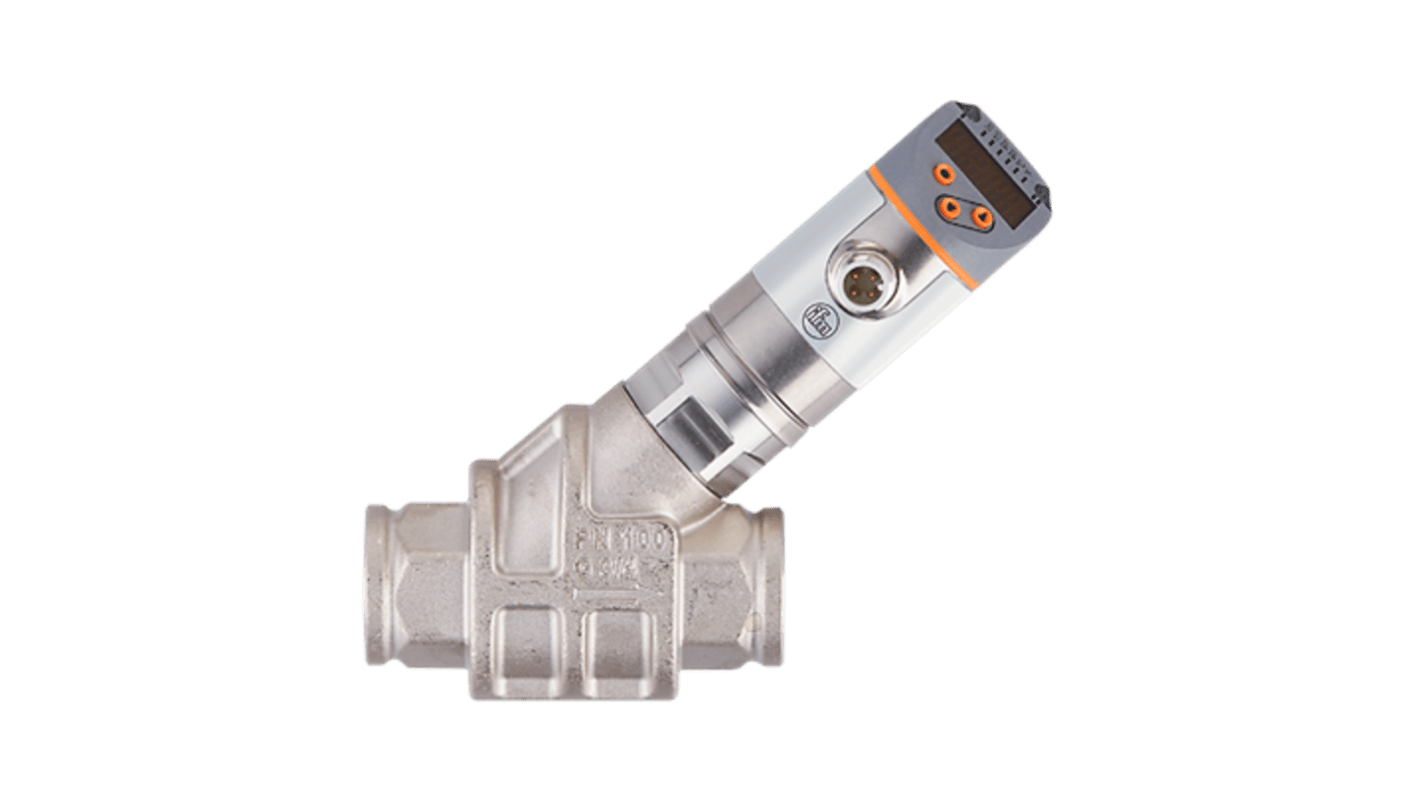

ifm electronic SB1232 Series Flow Meter Flow Sensor for Liquid, 0.3L/min Min, 15L/min Max
- RS Stock No.:
- 596-388
- Mfr. Part No.:
- SB1232
- Brand:
- ifm electronic
Subtotal (1 unit)*
£388.91
(exc. VAT)
£466.69
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £388.91 |
*price indicative
- RS Stock No.:
- 596-388
- Mfr. Part No.:
- SB1232
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Media Monitored | Liquid | |
| Product Type | Flow Sensor | |
| Device Type | Flow Meter | |
| Minimum Flow Rate | 0.3L/min | |
| Housing Material | 316L Stainless Steel, Brass Chemically Nickel Plated, Fibreglass Reinforced PBT GF20, Glass Filled Polybutylene Terephthalate, Polycarbonate | |
| Maximum Flow Rate | 15L/min | |
| Connection Type | G 3/4 Internal Thread | |
| Maximum Pressure | 10MPa | |
| Maximum Supply Voltage | 30V | |
| IP Rating | IP65, IP67 | |
| Minimum Media Temperature | 40°C | |
| Maximum Media Temperature | 40°C | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 60°C | |
| Series | SB1232 | |
| Standards/Approvals | DIN EN 61000-6-2, UL, DIN EN 61000-6-3, DIN EN 60068-2-6, DIN EN 60068-2-27 | |
| Current Rating | 150mA | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Media Monitored Liquid | ||
Product Type Flow Sensor | ||
Device Type Flow Meter | ||
Minimum Flow Rate 0.3L/min | ||
Housing Material 316L Stainless Steel, Brass Chemically Nickel Plated, Fibreglass Reinforced PBT GF20, Glass Filled Polybutylene Terephthalate, Polycarbonate | ||
Maximum Flow Rate 15L/min | ||
Connection Type G 3/4 Internal Thread | ||
Maximum Pressure 10MPa | ||
Maximum Supply Voltage 30V | ||
IP Rating IP65, IP67 | ||
Minimum Media Temperature 40°C | ||
Maximum Media Temperature 40°C | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 60°C | ||
Series SB1232 | ||
Standards/Approvals DIN EN 61000-6-2, UL, DIN EN 61000-6-3, DIN EN 60068-2-6, DIN EN 60068-2-27 | ||
Current Rating 150mA | ||
The ifm electronic flow meter with integrated backflow prevention offers precise measurement and monitoring of liquid flow rates in various applications. Designed for versatility, this device features an integrated display that provides real-time data and enhances user interaction. With a robust construction of stainless steel and advanced electrical components, it delivers reliable operation even in demanding environments. The flow meter is capable of handling a wide measuring range and offers various output signals, making it suitable for different industrial scenarios. Its intuitive interface ensures seamless integration into existing systems, promoting efficiency and streamlined operations.
Integrated backflow prevention ensures uninterrupted flow monitoring
Wide measuring range between 0.3 to 15 l/min, accommodating diverse applications
Accurate flow monitoring with ±5% accuracy and ±1% repeatability
Multiple output options, including switching signals, analogue signals, frequency signals, and IO-Link for compatibility
