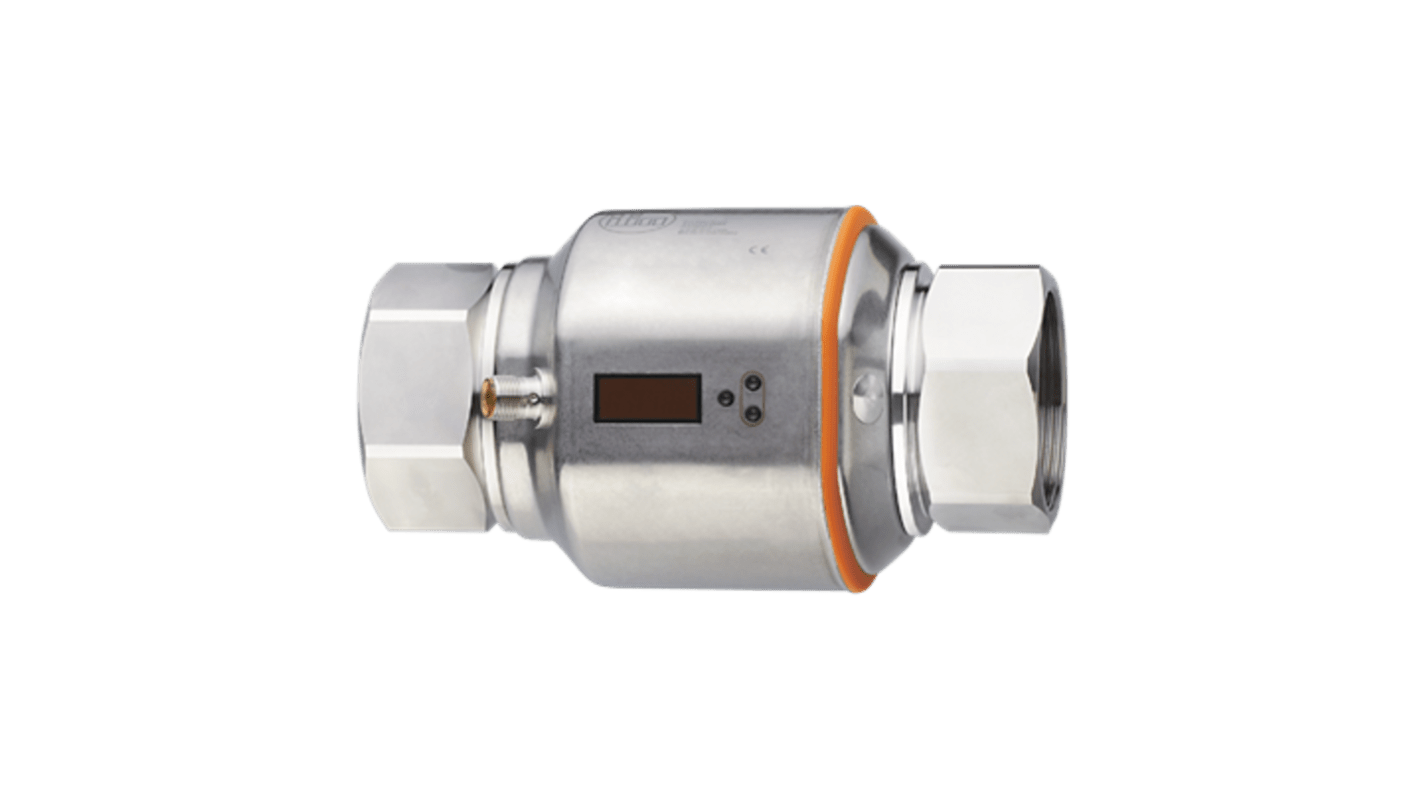

ifm electronic SM2604 Series Magnetic Inductive Flow Meter Flow Meter for Water, 5L/min Min, 600L/min Max
- RS Stock No.:
- 596-280
- Mfr. Part No.:
- SM2604
- Brand:
- ifm electronic
Subtotal (1 unit)*
£1,020.46
(exc. VAT)
£1,224.55
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,020.46 |
*price indicative
- RS Stock No.:
- 596-280
- Mfr. Part No.:
- SM2604
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Product Type | Flow Meter | |
| Media Monitored | Water | |
| Device Type | Magnetic Inductive Flow Meter | |
| Minimum Flow Rate | 5L/min | |
| Maximum Flow Rate | 600L/min | |
| Housing Material | 316L Stainless Steel, Thermoplastic Elastomer, 316Ti Stainless Steel, Fluorelastomer, Fibreglass Reinforced PBT GF20, Polyetherimide | |
| Connection Type | 2 in NPT Internal Thread | |
| Maximum Pressure | 1.6MPa | |
| Minimum Media Temperature | 40°C | |
| IP Rating | IP67, IP65 | |
| Maximum Supply Voltage | 32V | |
| Maximum Media Temperature | 40°C | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Series | SM2604 | |
| Standards/Approvals | UL, DIN EN 60068-2-6, DIN EN 60068-2-27, DIN EN 60947-5-9 | |
| Current Rating | 150mA | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Product Type Flow Meter | ||
Media Monitored Water | ||
Device Type Magnetic Inductive Flow Meter | ||
Minimum Flow Rate 5L/min | ||
Maximum Flow Rate 600L/min | ||
Housing Material 316L Stainless Steel, Thermoplastic Elastomer, 316Ti Stainless Steel, Fluorelastomer, Fibreglass Reinforced PBT GF20, Polyetherimide | ||
Connection Type 2 in NPT Internal Thread | ||
Maximum Pressure 1.6MPa | ||
Minimum Media Temperature 40°C | ||
IP Rating IP67, IP65 | ||
Maximum Supply Voltage 32V | ||
Maximum Media Temperature 40°C | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Series SM2604 | ||
Standards/Approvals UL, DIN EN 60068-2-6, DIN EN 60068-2-27, DIN EN 60947-5-9 | ||
Current Rating 150mA | ||
- COO (Country of Origin):
- DE
The ifm electronic magnetic-inductive flow meter is an innovative solution designed for precise flow measurement of conductive liquids across various industrial applications. Featuring a robust design, this flow meter delivers reliable performance, monitoring volumetric flow quantities and medium temperatures effectively. Its electrical data ensures compatibility with a wide operating voltage range, while the advanced measurement principle guarantees accuracy in dynamic environments. Suitable for media with a minimum conductivity of 20 μS/cm, this high-quality device simplifies operational monitoring and enhances process safety with features like empty pipe detection.
Robust construction with materials like stainless steel for durability
Accurate flow monitoring with ±(0.8% MW + 0.5% MEW) precision
Dual analogue outputs for real-time temperature and flow monitoring
Fast response times of 0.35 seconds ensure efficient process control
