ifm electronic SB3244 Series Meter Flow Sensor for Liquid, 1L/min Min, 1 L/min Max
- RS Stock No.:
- 596-087
- Mfr. Part No.:
- SB3244
- Brand:
- ifm electronic
Subtotal (1 unit)*
£471.38
(exc. VAT)
£565.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £471.38 |
*price indicative
- RS Stock No.:
- 596-087
- Mfr. Part No.:
- SB3244
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Media Monitored | Liquid | |
| Product Type | Flow Sensor | |
| Device Type | Meter | |
| Minimum Flow Rate | 1L/min | |
| Maximum Flow Rate | 1L/min | |
| Housing Material | Fibreglass Reinforced PBT GF20, Polycarbonate, 316L Stainless Steel, Glass Filled Polybutylene Terephthalate, Brass Chemically Nickel Plated | |
| Connection Type | G 1 Internal Thread | |
| Maximum Pressure | 10MPa | |
| Minimum Media Temperature | 40°C | |
| IP Rating | IP65, IP67 | |
| Maximum Supply Voltage | 30V dc | |
| Minimum Operating Temperature | 0°C | |
| Maximum Media Temperature | 40°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | DIN EN 60068-2-6, DIN EN 61000-6-3, DIN EN 60068-2-27, DIN EN 61000-6-2, UL | |
| Series | SB3244 | |
| Current Rating | 150 mA | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Media Monitored Liquid | ||
Product Type Flow Sensor | ||
Device Type Meter | ||
Minimum Flow Rate 1L/min | ||
Maximum Flow Rate 1L/min | ||
Housing Material Fibreglass Reinforced PBT GF20, Polycarbonate, 316L Stainless Steel, Glass Filled Polybutylene Terephthalate, Brass Chemically Nickel Plated | ||
Connection Type G 1 Internal Thread | ||
Maximum Pressure 10MPa | ||
Minimum Media Temperature 40°C | ||
IP Rating IP65, IP67 | ||
Maximum Supply Voltage 30V dc | ||
Minimum Operating Temperature 0°C | ||
Maximum Media Temperature 40°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals DIN EN 60068-2-6, DIN EN 61000-6-3, DIN EN 60068-2-27, DIN EN 61000-6-2, UL | ||
Series SB3244 | ||
Current Rating 150 mA | ||
- COO (Country of Origin):
- DE

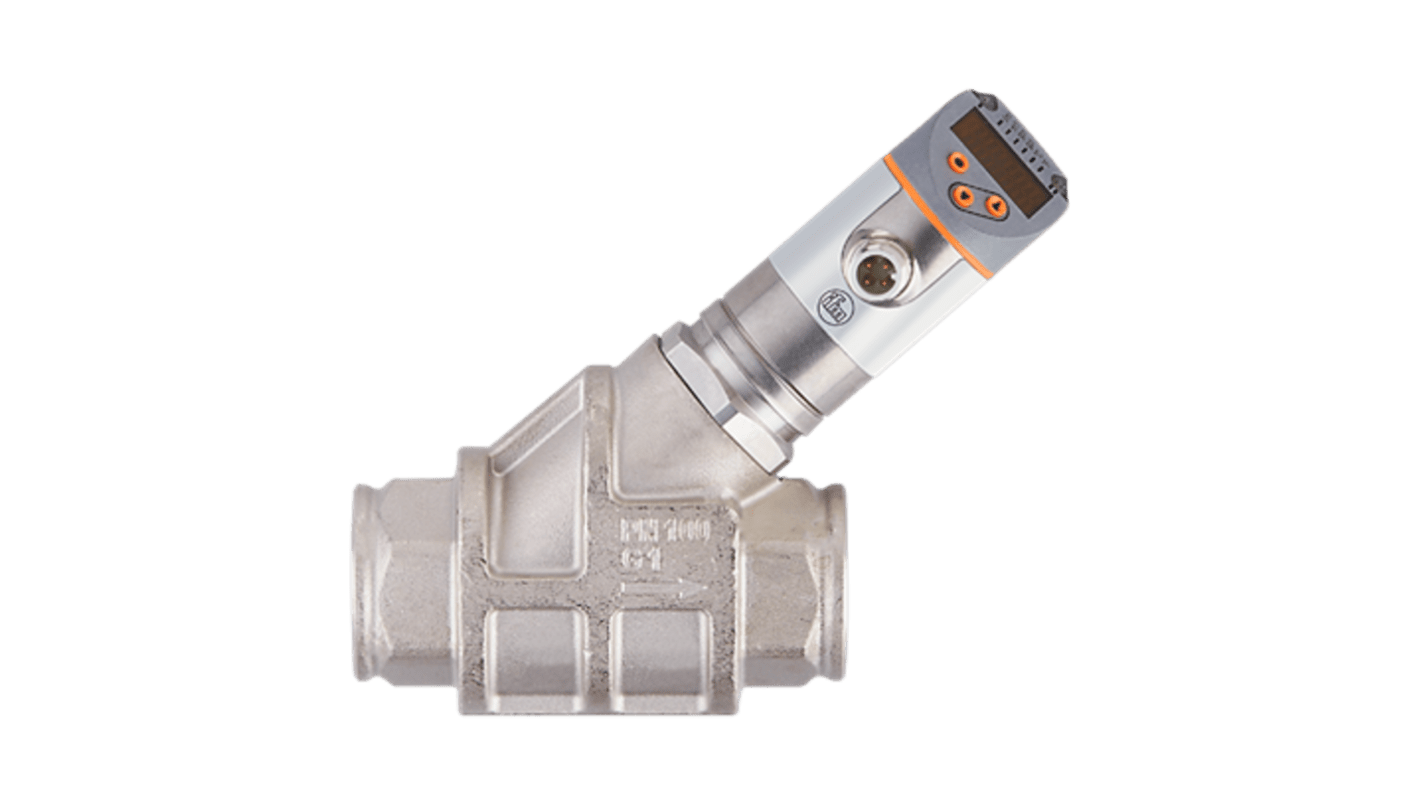

The ifm electronic flow meter with integrated backflow prevention and display is a highly efficient solution designed for precise flow monitoring of various liquids. Its robust construction, featuring gold-plated contacts and stainless steel components, ensures reliability and longevity in demanding environments. This device caters to a wide measuring range of 1 to 50 l/min and operates effectively under varying temperatures and pressures. It offers analogue, switching, and frequency output signals for versatile application in industrial settings. The combination of advanced software options and a user-friendly interface makes it an essential tool for ensuring operational efficiency and safety.
Integrated backflow prevention to protect system integrity
Wide measuring range of 1 to 50 l/min for diverse applications
Robust construction using stainless steel for durability
Gold-plated contacts for enhanced electrical performance
