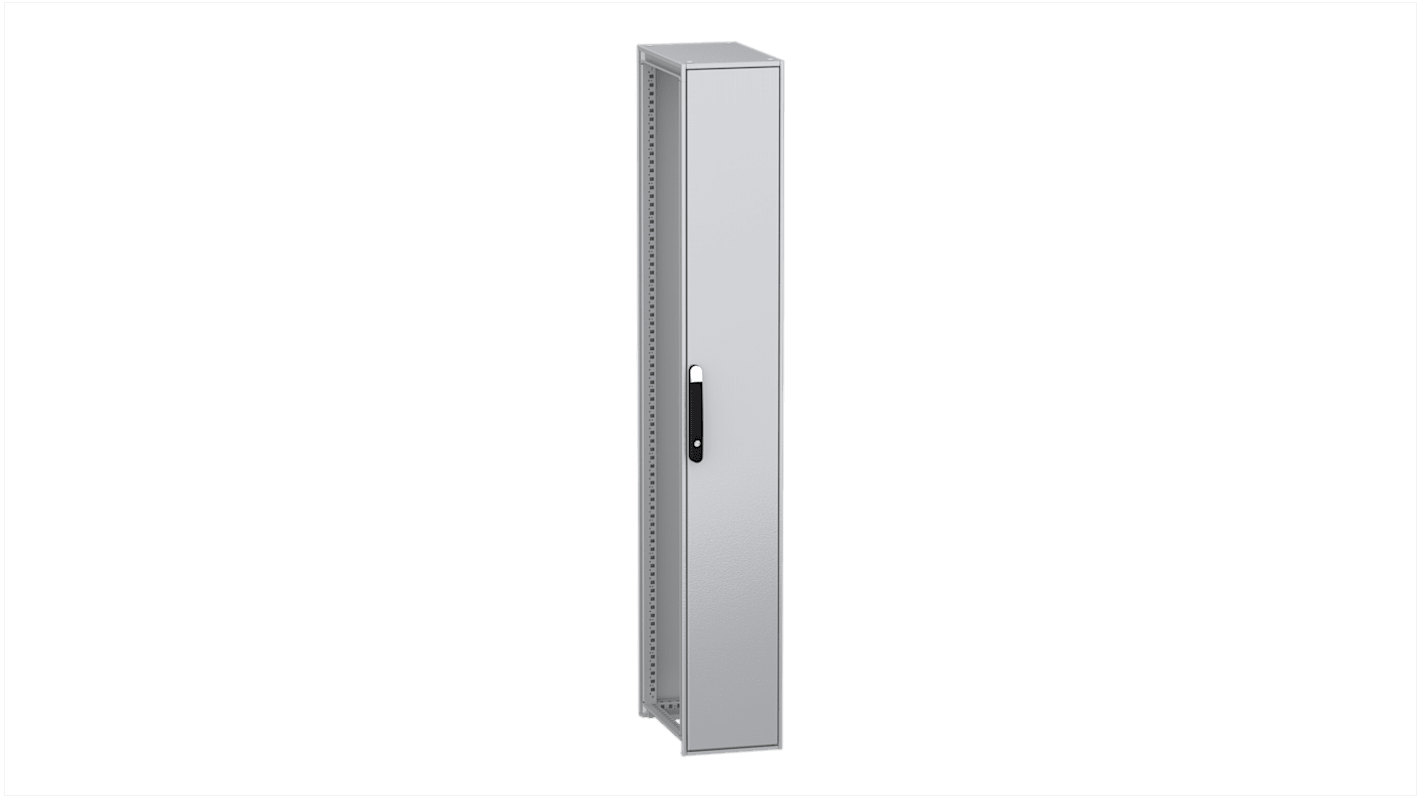

Schneider Electric PanelSeT Series Steel 1-Door Floor Standing Enclosure, Plain Door, IP55 300 mm, 500 mm 2 m
- RS Stock No.:
- 285-5567
- Mfr. Part No.:
- NSYSFN20350
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£632.26
(exc. VAT)
£758.71
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £632.26 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
Learn more about RS Better World products
- RS Stock No.:
- 285-5567
- Mfr. Part No.:
- NSYSFN20350
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Floor Standing Enclosure | |
| Number of Doors | 1 | |
| IP Rating | IP55 | |
| Series | PanelSeT | |
| Door Type | Plain | |
| Body Material | Steel | |
| Colour | Grey | |
| External Width | 500mm | |
| External Depth | 300mm | |
| External Height | 2m | |
| NEMA Rating | NEMA 3R/12 | |
| Colour RAL | RAL 7035 | |
| Mounting plate | No | |
| Standards/Approvals | IEC 62208 | |
| Better World Product | Yes | |
| Better World Claim | Designed for Disassembly | |
| IK Rating | IK10 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Floor Standing Enclosure | ||
Number of Doors 1 | ||
IP Rating IP55 | ||
Series PanelSeT | ||
Door Type Plain | ||
Body Material Steel | ||
Colour Grey | ||
External Width 500mm | ||
External Depth 300mm | ||
External Height 2m | ||
NEMA Rating NEMA 3R/12 | ||
Colour RAL RAL 7035 | ||
Mounting plate No | ||
Standards/Approvals IEC 62208 | ||
Better World Product Yes | ||
Better World Claim Designed for Disassembly | ||
IK Rating IK10 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
The Schneider Electric The Floor standing modular electrical enclosure is a versatile and highly durable solution for low voltage electrical distribution. With a sturdy construction and thoughtful design, this enclosure is ideal for various applications.
Modular design with vertical uprights and top/bottom frames for easy installation and customization
IP55 protection rating ensures dust and water resistance for outdoor use
Multiple removable parts for easy access and maintenance
Galvanised steel frame and doors provide robustness and longevity
Epoxy-polyester powder finish for a sleek and professional look
NEMA 3R/12 and IP55 protection ratings for reliable performance in harsh environments
