Sensata Cynergy3 RSF70 Series Horizontal Polypropylene Float Switch, Float, NO/NC, 240V ac Max, 120V dc Max
- RS Stock No.:
- 869-7586
- Mfr. Part No.:
- RSF78YNP
- Brand:
- Sensata / Cynergy3
Subtotal (1 unit)*
£18.12
(exc. VAT)
£21.74
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 12 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £18.12 |
*price indicative
- RS Stock No.:
- 869-7586
- Mfr. Part No.:
- RSF78YNP
- Brand:
- Sensata / Cynergy3
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensata / Cynergy3 | |
| Device Type | Float | |
| Mounting Type | Horizontal | |
| Switch Output | NO/NC | |
| Body Material | Polypropylene | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +100°C | |
| Maximum AC Voltage | 240V | |
| Maximum DC Voltage | 120V | |
| Maximum Current | 600 mA | |
| Gasket Material | Nitrile | |
| Series | RSF70 | |
Select all | ||
|---|---|---|
Brand Sensata / Cynergy3 | ||
Device Type Float | ||
Mounting Type Horizontal | ||
Switch Output NO/NC | ||
Body Material Polypropylene | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +100°C | ||
Maximum AC Voltage 240V | ||
Maximum DC Voltage 120V | ||
Maximum Current 600 mA | ||
Gasket Material Nitrile | ||
Series RSF70 | ||
- COO (Country of Origin):
- CN

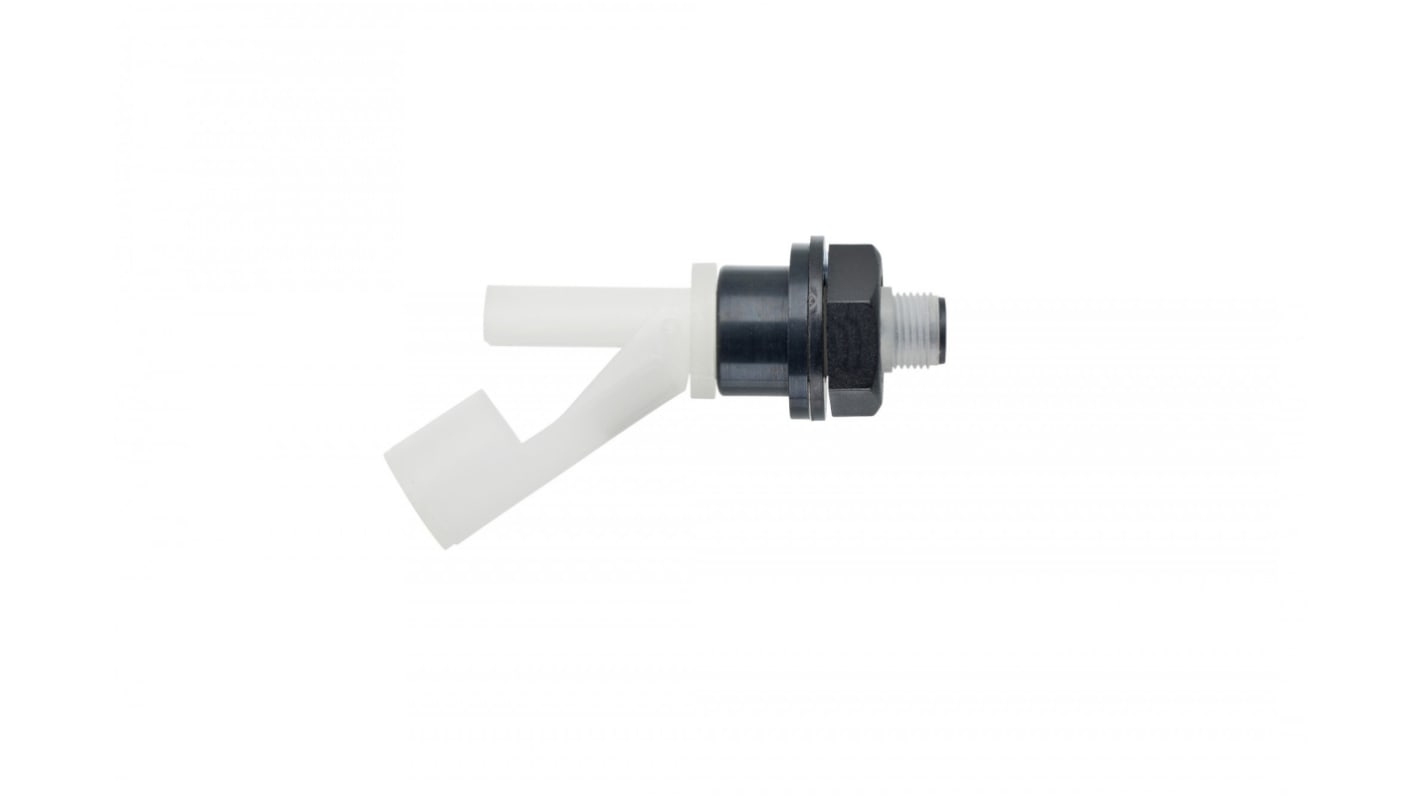

Sensata Cynergy3 Horizontal Float Switch, Polypropylene, 600mA - RSF70 Series - RSF78YNP
Keep your container safe from overflow hazards with this horizontal float switch from Sensata Cynergy3. Its switch action is reversible by simply inverting the float, making it a versatile choice. This horizontal switch is designed for external mounting on the side of your tank, making it a convenient choice for tanks where the interior can't be easily accessed. The polypropylene body material is resistant to chemicals and impact for use in harsh environments. You'll commonly find a float switch like this one used in applications such as vending machines, commercial dishwashers and auxiliary tanks on vehicles.
Features & Benefits
• Maximum switching current of 600mA for energy-efficient operation
• M12-sized connector for a simple and secure connection
• Wide operating temperature range of -20°C to +100°C for use in hot and cold environments
• M12-sized connector for a simple and secure connection
• Wide operating temperature range of -20°C to +100°C for use in hot and cold environments
Is this float switch susceptible to leaks?
No, this float switch has a nitrile gasket ring that fits between the components to protect against leaks. The nitrile material is resistant to corrosion and chemicals to ensure the seal doesn't wear down over time.
