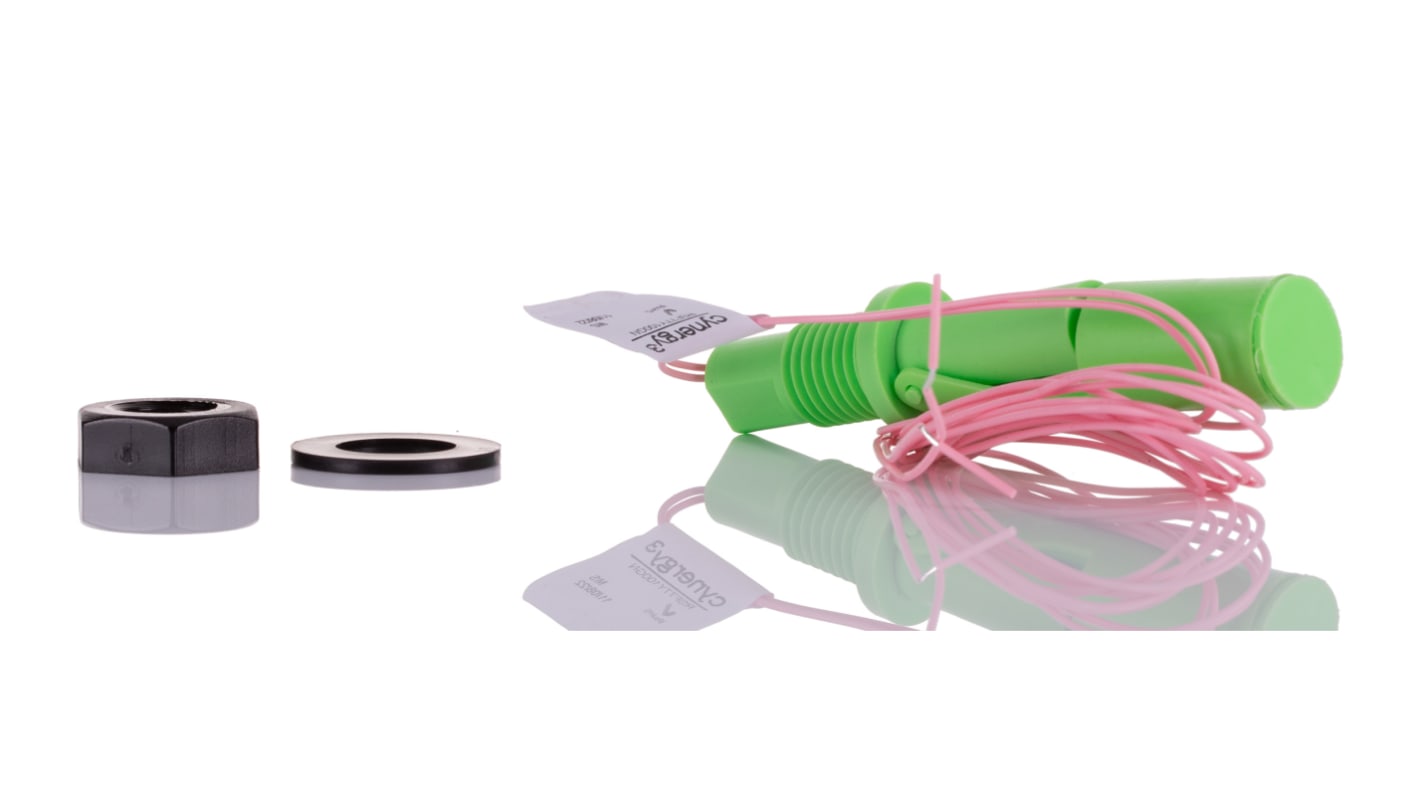

Sensata Cynergy3 RSF70 Series Vertical Polyvinylidene Fluoride Float Switch, Float, 1m Cable, NO/NC, 240V ac Max, 120V

View all Float Switches

Subtotal (1 unit)*

£40.46

(exc. VAT)

£48.55

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 7 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£40.46

*price indicative

RS Stock No.:
124-2576
Mfr. Part No.:
RSF77Y100GN/RS
Brand:
Sensata / Cynergy3
Find similar products by selecting one or more attributes.
Select all

Brand

Sensata / Cynergy3

Device Type

Float

Mounting Type

Vertical

Switch Output

NO/NC

Body Material

Polyvinylidene Fluoride

Cable Length

1m

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

+105°C

Maximum AC Voltage

240V

Maximum DC Voltage

120V

Maximum Current

600 mA

Gasket Material

Nitrile

Series

RSF70

Standards Met

UL File No.E171218

COO (Country of Origin):
GB

Sensata Cynergy3 Float Switch, 600mA Maximum Switching Current, Nitrile Gasket - RSF70 Series - RSF77Y100GN/RS


Monitor liquid levels with this float switch from Sensata Cynergy3. You can use it to control the action of a pump to help ensure your tank never runs dry. For versatility, its switch action is reversible by simply mounting the device so the float moves upward instead of in the normal downward direction. As the unit is made of PVDF, it's compatible with water as well as many chemicals and solvents. Thanks to its short length of 98mm, this float switch is a good choice for small tanks found in vending machines and commercial dishwashers.

Features & Benefits


• Designed for external mounting, so there's no need to access the inside of the tank
• Wide operating temperature range of -10°C to +105°C for use in demanding settings
• Robust nitrile seal to minimise the risk of leakage

Do I mount this float switch vertically or horizontally?


This float switch is designed for vertical mounting, so it's a good choice for tanks where the side is difficult to access.

How big of an entry hole does this float switch need?


Thanks to its small size, you only need to cut a hole with a 23mm diameter in your tank wall to install this float switch.
