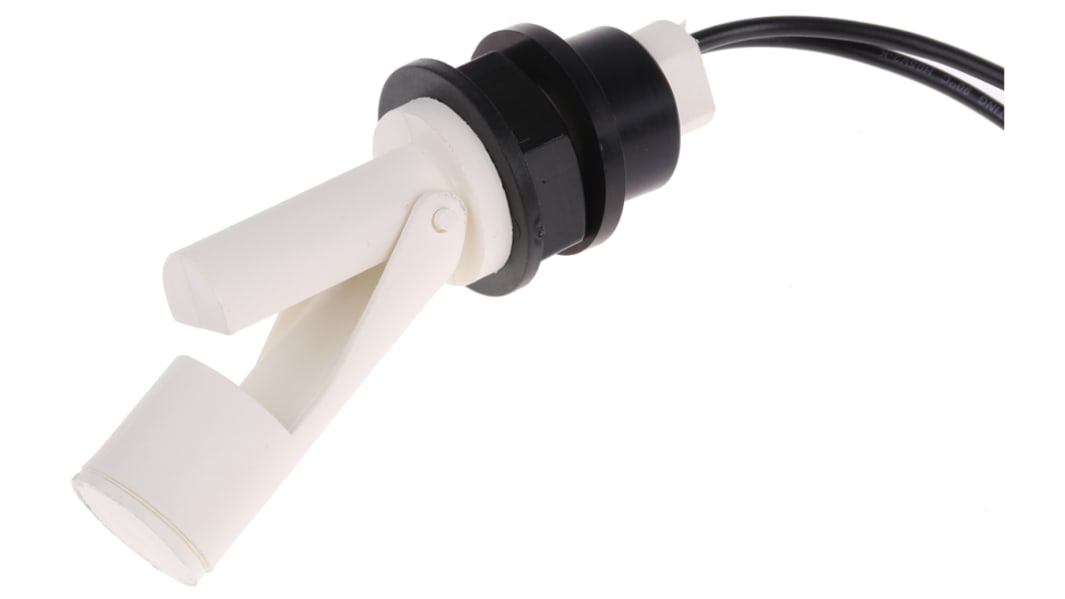

Cynergy3 RSF70 Series Horizontal External Polypropylene Float Switch, Float, 1m Cable, NO/NC, 240V ac Max, 120V dc Max

Cynergy3 offers wide range of horizontal switches which are WRAS approved and have low-cost compact design. These horizontal float switches consist of a reed switch and a pivoted actuator magnet and can be used for N/O or N/C operation. The switch action can be reversed by mounting the float switch with the float able to move upwards away from the body instead of downwards.

WRAS is the standard against waste, misuse, undue consumption or contamination of the water supply and must have an appropriate quality and standard.

• Nylon
• Polypropylene
• Polypropylene Sulfide (PPS)

• Operating temperature: -10 °C to +120 °C
• N/O or N/C Switch output
• Switch action may be reversed by rotating the switch through 180º
• Choice of gasket materials: Silicone, Nitrile, Viton or combination of Silicone & Nitrile
• Flying Lead
• M12 plug connection
• Internal & external fitting inside a tank
• UL recognised

These Cynergy3 Horizontal Switches are most likely to be used in vending machines, commercial washing machines and evaporator units.

Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads.

Protect your container from overflow hazards using this float switch from Sensata Cynergy3. The floating component sits on the liquid surface and magnetically flicks the switch when levels rise or fall to help you keep liquid levels at an appropriate level. It's made of a durable polypropylene (PP) material for resistance to wear and chemicals, making it a good choice for use in demanding applications. This horizontal switch mounts externally on the side of your tank, making it ideal for tanks with no top or bottom access. Use it for equipment such as vending machines or evaporator units.

• Switch action is reversible by rotating the switch for greater versatility
• Broad operating temperature range of -20°C to +100°C for use in extreme conditions
• Ample cable length of 1m ensures the switch has extended reach inside the tank

No, the switch connection is protected by a gasket ring fitted between the components. Its nitrile rubber (NBR) material is highly resistant to liquid to prevent its sealing properties from wearing down. This material also has a high level of strength, so it can withstand pressure build-ups without loosening its hold on the seal.
